Disassembly and Assembly

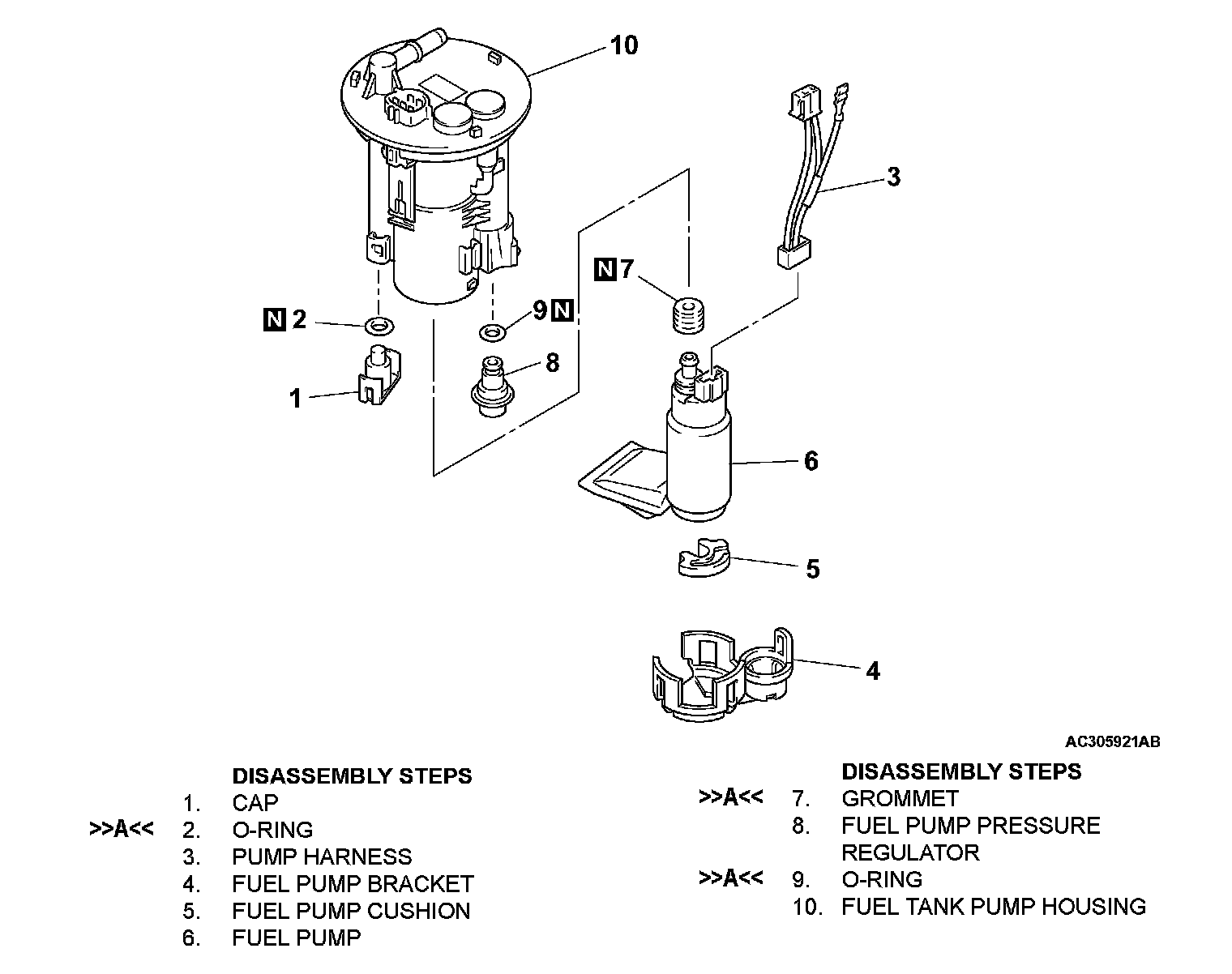

FUEL PUMP MODULE DISASSEMBLY AND ASSEMBLY






NOTE: For removal and installation, refer to On-vehicle service - Fuel pump (module) replacement.

ASSEMBLY SERVICE POINT

>>A<< GROMMET/O-RING INSTALLATION

Apply gasoline on the grommet and the O-ring before mounting them to prevent damage or twisting.
