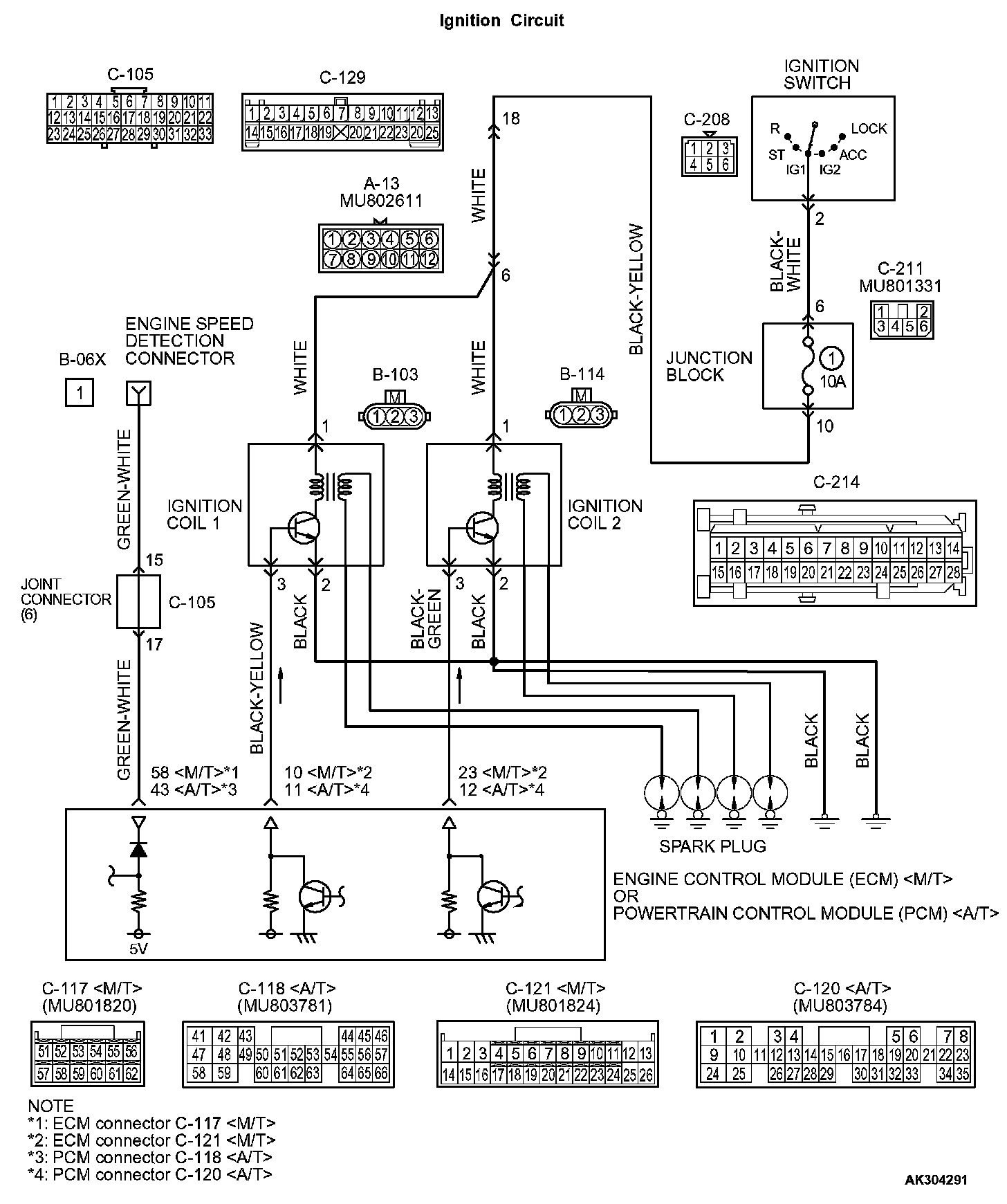

Ignition Circuit SystemIgnition Circuit Part 1:
Ignition Circuit Part 2:
Ignition Circuit Part 3:
CIRCUIT OPERATION
- The ignition coil is energized by Battery positive voltage from the ignition switch.
- When the ECM
- If the ignition power transistor is turned on, the primary circuit of the ignition coil is energized by grounding the ignition coil through terminal No. 2, causing the primary current to flow to the ignition coil.
TROUBLESHOOTING HINTS (The most likely causes for this case:)
- Malfunction of the ignition coil.
- Malfunction of the ignition power transistor.
- Improper connector contact, open circuit or short-circuited harness wire.
- Malfunction of the ECM
DIAGNOSIS
STEP 1. Check the ignition coil.
Refer to Ignition System - On-vehicle service - Ignition Coil Check.
Q: Are there any abnormalities?
YES: Go to Step 2.
NO: Replace the ignition coil. Then confirm that the malfunction symptom is eliminated.

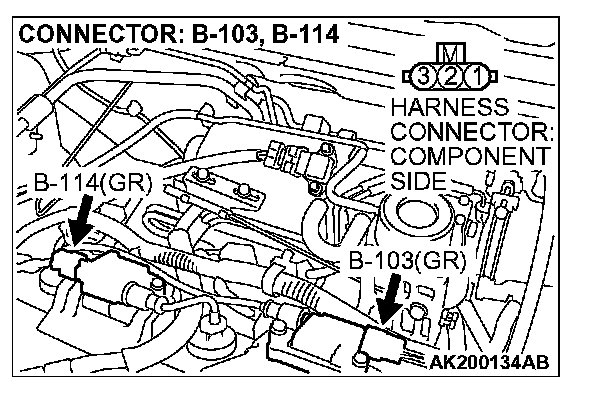

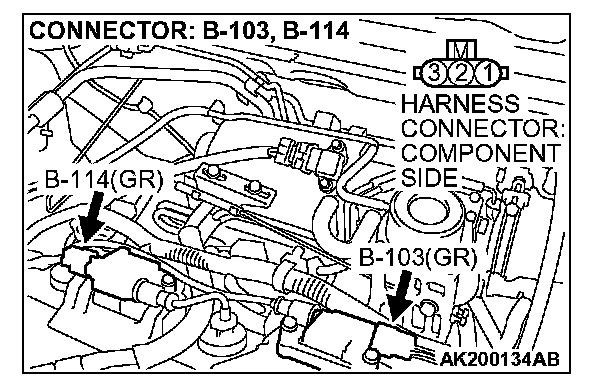

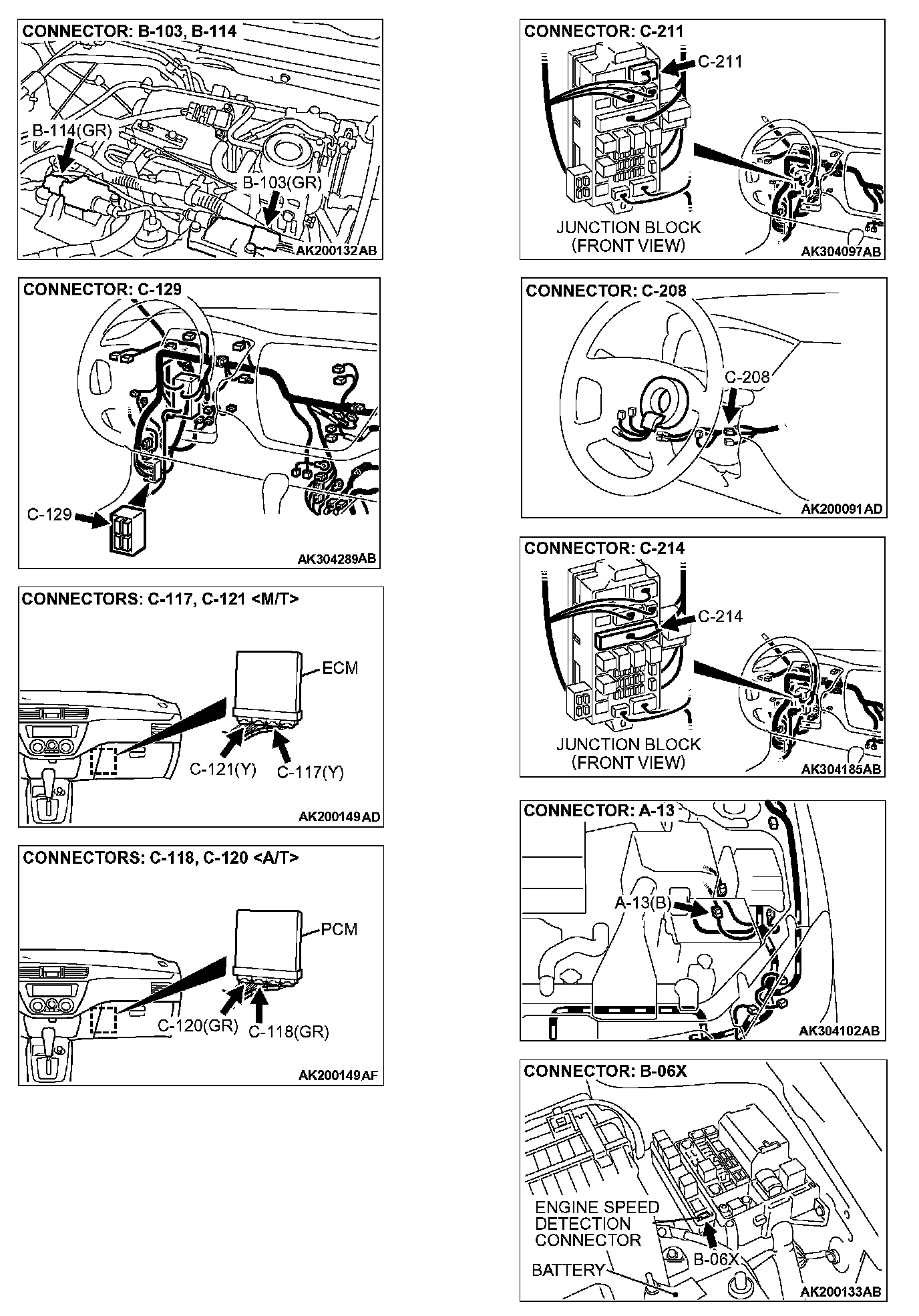

STEP 2. Check harness connectors B-103, B-114 at ignition coil for damage.
Q: Is the harness connector in good condition?
YES: Go to Step 3.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.

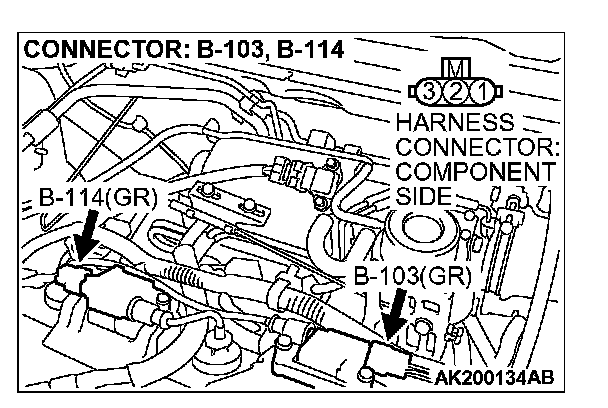

STEP 3. Measure the power supply voltage at ignition coil connectors B-103, B-114.
1. Disconnect the connector B-103, B-114 and measure at the harness side.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal No. 1 and ground.
- Voltage should be battery positive voltage.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 4.
NO: Check the connectors A-13, C-129, C-211 and C-214 at intermediate connectors for damage, and repair or replace as required. Refer to Harness Connector Inspection. If intermediate connector are in good condition, repair harness wire between ignition switch connector C-201 (terminal No. 2) and ignition coil connector B-103, B-114 (terminal No. 1) because of open circuit. Then confirm that the malfunction symptom is eliminated.

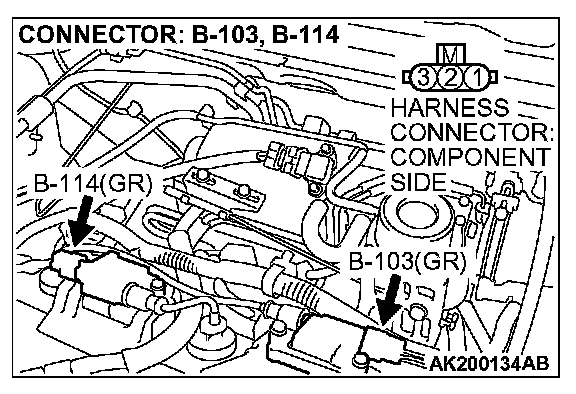

STEP 4. Check the circuit at ignition coil harness side connectors B-103, B-114.
1. Disconnect the connectors B-103, B-114 and measure at the harness side.
2. Engine cranking.

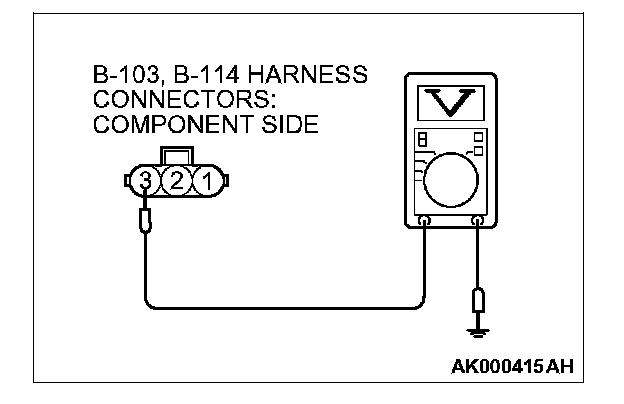

3. Measure the voltage between terminal No. 3 and ground.
- Voltage should measure 0.3 and 3.0 volts.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 0.3 and 3.0 volts?
YES: Go to Step 7.
NO: Go to Step 5.

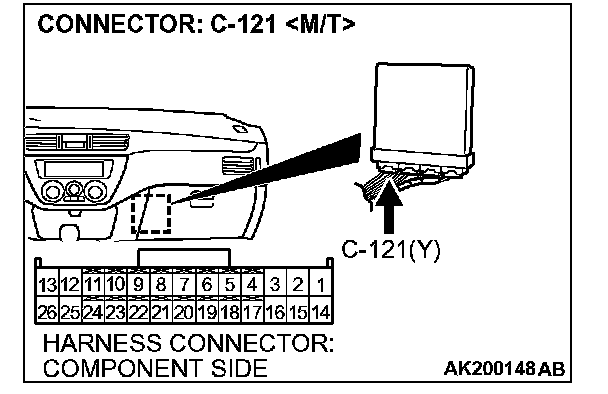

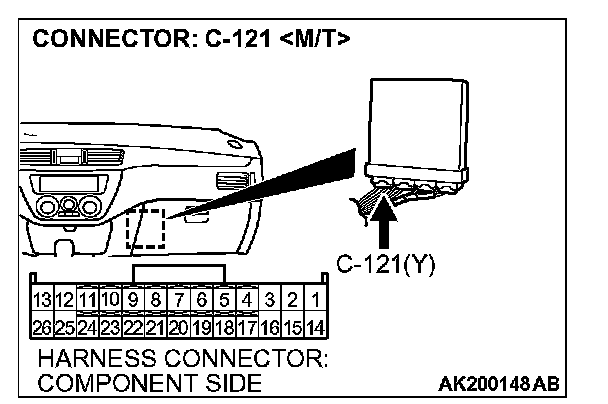

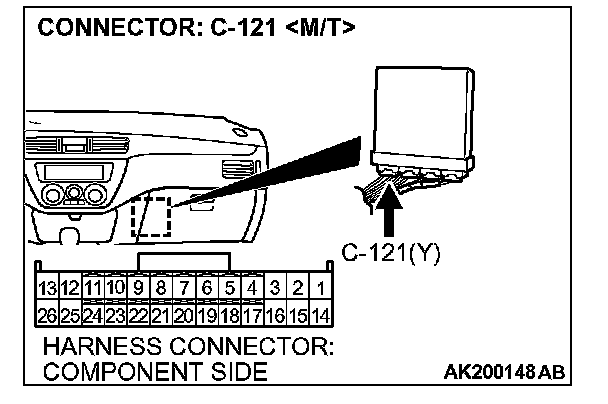

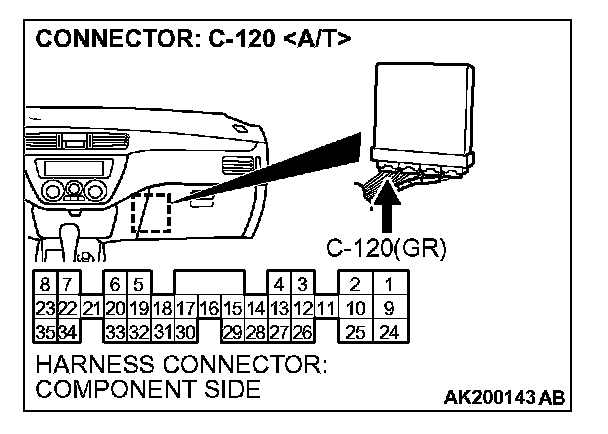

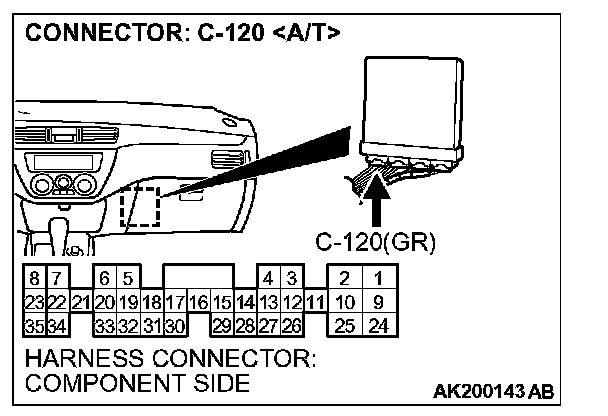

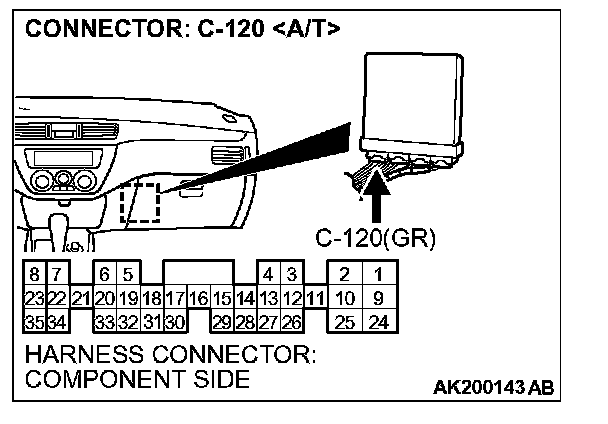

STEP 5. Check harness connector C-121 at ECM
Q: Is the harness connector in good condition?
YES: Go to Step 6.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.
STEP 6. Check for open circuit and short circuit to ground between ignition coil connector and ECM connector
a. Check the harness wire between ignition coil connector B-103 (terminal No. 3) and ECM connector C-121 (terminal No. 10)
b. Check the harness wire between ignition coil connector B-114 (terminal No. 3) and ECM connector C-121 (terminal No. 23)
Q: Is the harness wire in good condition?
YES: Replace the ECM or PCM. Then confirm that the malfunction symptom is eliminated.
NO: Repair it. Then confirm that the malfunction symptom is eliminated.
STEP 7. Check for harness damage between ignition coil connector and ECM connector
a. Check the harness wire between ignition coil connector B-103 (terminal No. 3) and ECM connector C-121 (terminal No. 10)
b. Check the harness wire between ignition coil connector B-114 (terminal No. 3) and ECM connector C-121 (terminal No. 23)
Q: Is the harness wire in good condition?
YES: Go to Step 8.
NO: Repair it. Then confirm that the malfunction symptom is eliminated.

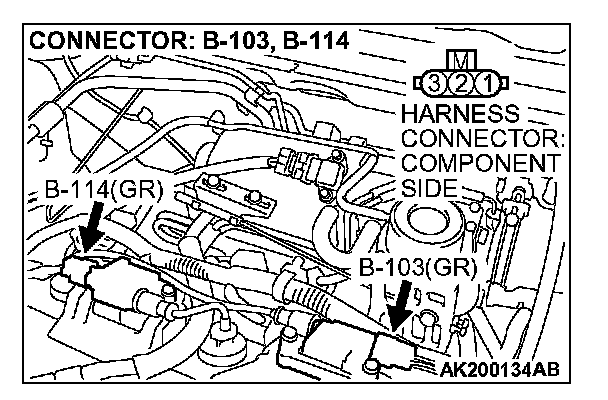

STEP 8. Check for continuity at ignition coil harness side connectors B-103, B-114.
1. Disconnect the connectors B-103, B-114 and measure at the harness side.

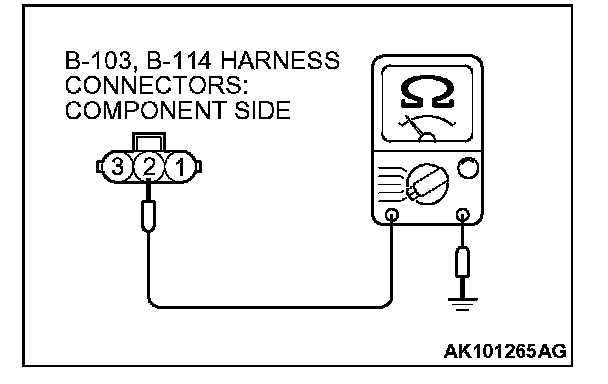

2. Check for continuity between terminal No. 2 and ground.
- Should be less than 2 ohms.
Q: Does continuity exist?
YES: Go to Step 9.
NO: Repair harness wire between ignition coil connectors B-103, B-114 (terminal No. 2) and ground because of open circuit or harness damage. Then confirm that the malfunction symptom is eliminated.

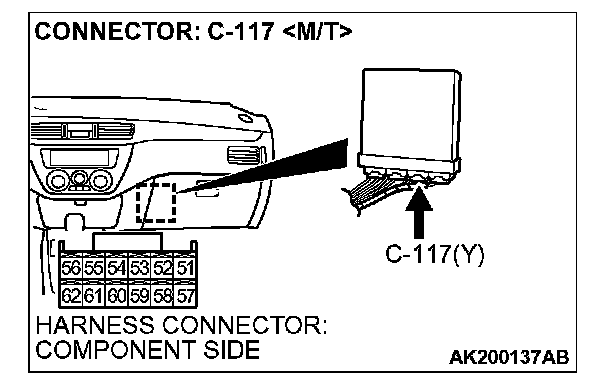

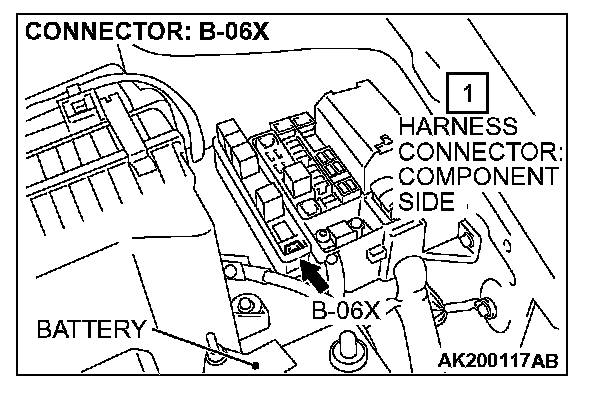

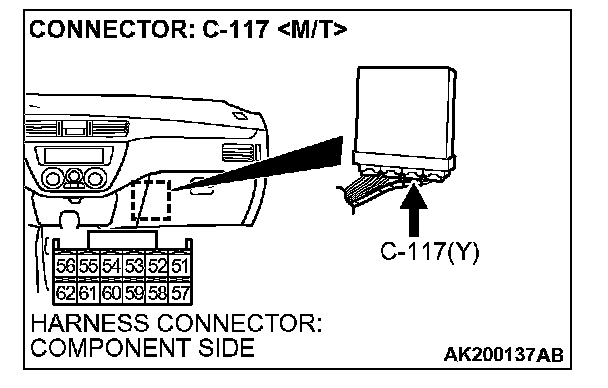

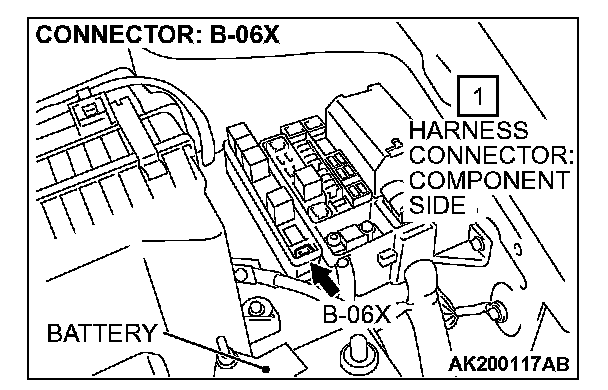

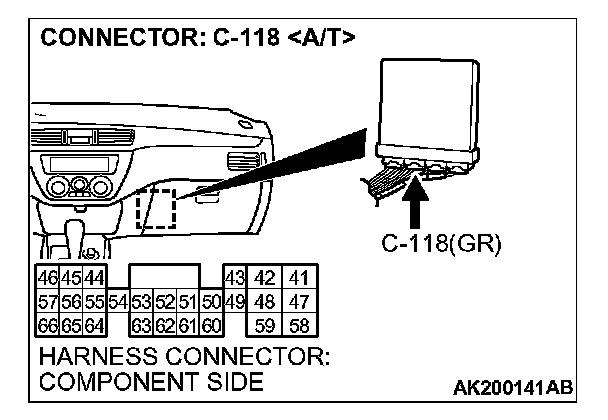

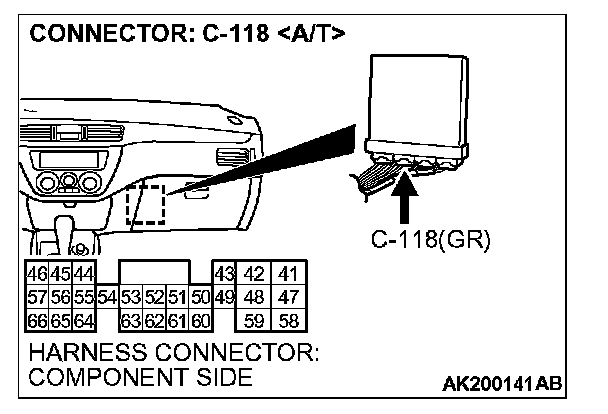

STEP 9. Check harness connector B-06X at engine speed detection and harness connector C-117 at ECM
Q: Is the harness connector in good condition?
YES: Go to Step 10.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.
STEP 10. Check for open circuit and short circuit to ground and harness damage between engine speed detection connector B-06X and ECM connector C-117 (terminal No. 58)
Q: Is the harness wire in good condition?

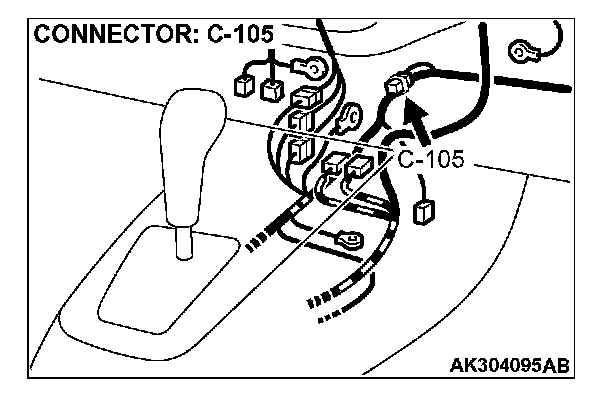

YES: Check the connector C-105 at intermediate connectors for damage, and repair or replace as required. Refer to Harness Connector Inspection. If intermediate connector is in good condition, replace the ECM or PCM. Then confirm that the malfunction symptom is eliminated.
NO: Repair it. Then confirm that the malfunction symptom is eliminated.
