Inspection Procedure N-6

Column switch: ETACS-ECU does not receive any signal from windshield mist wiper switch, windshield intermittent wiper switch, windshield low-speed wiper switch, windshield high-speed wiper switch, windshield washer switch, rear wiper switch or rear washer switch.

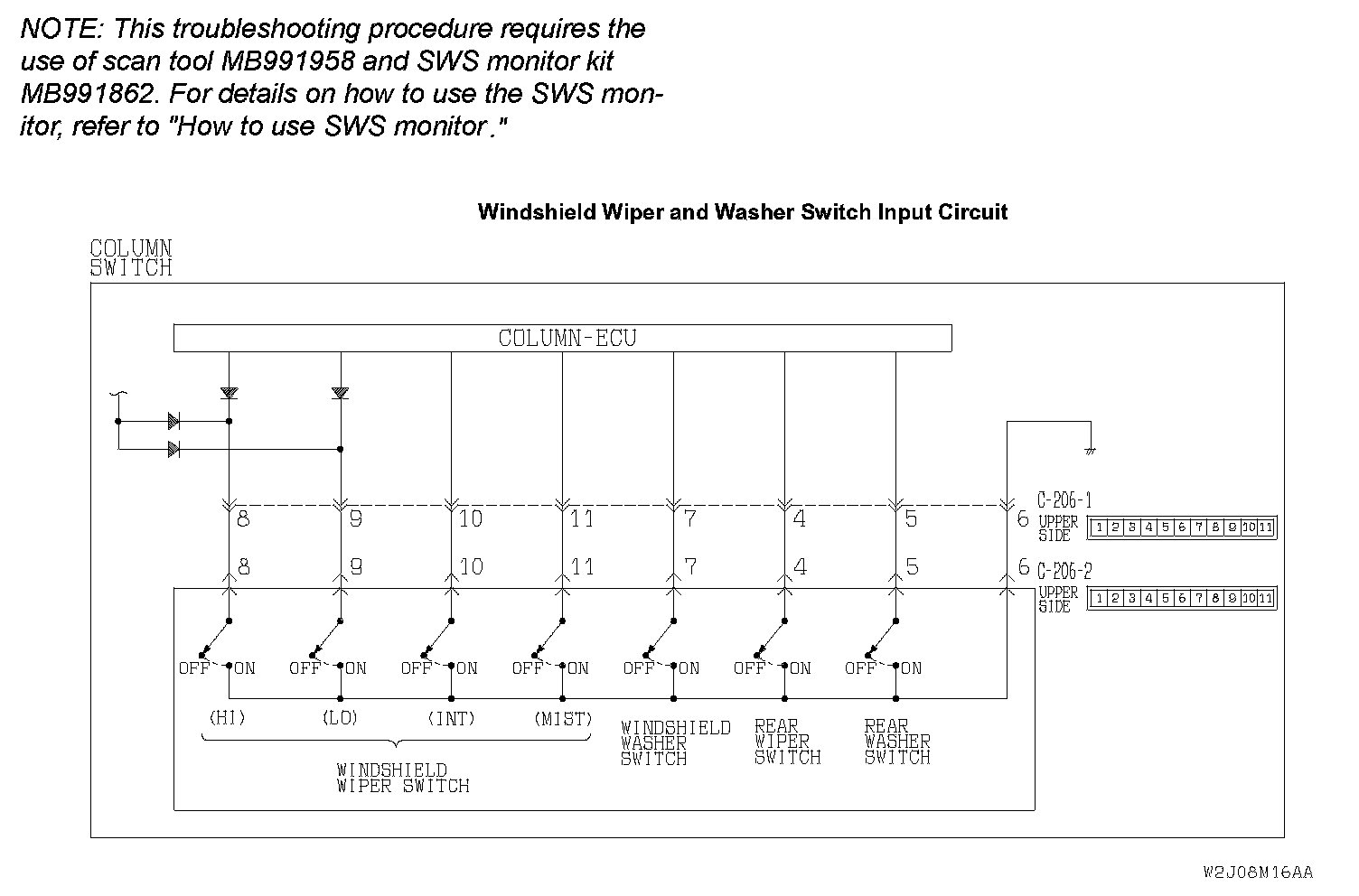

Windshield Wiper And Washer Switch Input Circuit:

CIRCUIT OPERATION
The ETACS-ECU operates the following equipment or functions according to signal from the column switch (windshield wiper and washer switch):
- Windshield wiper and washer
- Rear wiper and washer

TECHNICAL DESCRIPTION (COMMENT)
If the signal is not normal, the equipment, which is described in "CIRCUIT OPERATION", does not work normally.

TROUBLESHOOTING HINTS
- The column switch (windshield wiper and washer switch) may be defective
- The ETACS-ECU may be defective
- The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector

DIAGNOSIS

Required Special Tools:
- MB991223: Harness Set
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: MUT-III USB Cable
- MB991911: MUT-III Main Harness B
- MB991813: SWS Monitor Kit
- MB991806: SWS Monitor Cartridge
- MB991812: SWS Monitor Harness (For Column-ECU)
- MB991922: Probe Harness

STEP 1. Use scan tool MB991958 to select "ECU COMM CHK" on the SWS monitor display.
Check the column-ECU.

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958. Connect the DLC harness before connecting the column-ECU harness. Be sure to connect SWS monitor kit MB991862 after turning on scan tool MB991958.

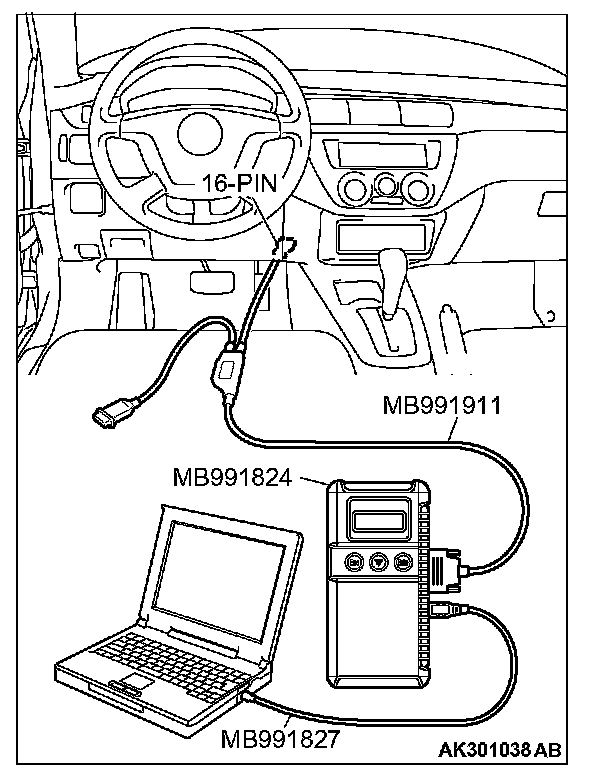

1. Connect scan tool MB991958 to the data link connector.

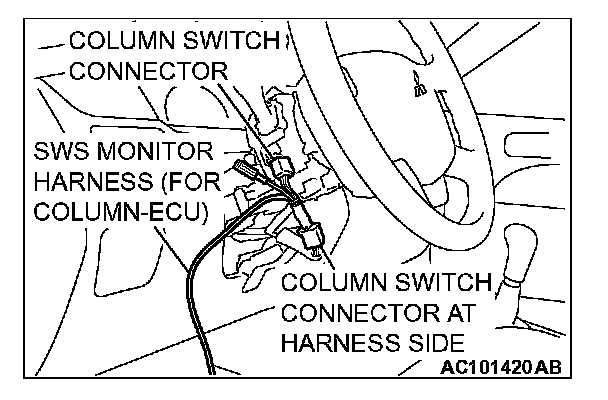

2. Connect SWS monitor kit MB991862 to the column switch connector.
3. Turn the ignition switch to the "ON" position.
4. Operate scan tool MB991958 according to the procedure below to display "ECU COMM CHK."
1. Select "SYSTEM SELECT."
2. Select "SWS."
3. Select "SWS MONITOR."
4. Select "ECU COMM CHK."

5. Scan tool MB991958 should show "OK" on the "ECU COMM CHK" menus for both the "COLUMN ECU" menu.

Q: Is "OK" displayed on the "COLUMN ECU" menu?

YES: Go to Step 2.

NO: Refer to Inspection Procedure A-2 "Communication with column switch (column-ECU) is not possible."







STEP 2. Check the windshield wiper and washer switch.

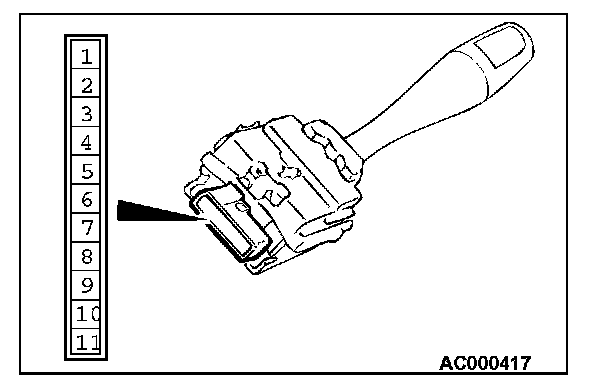

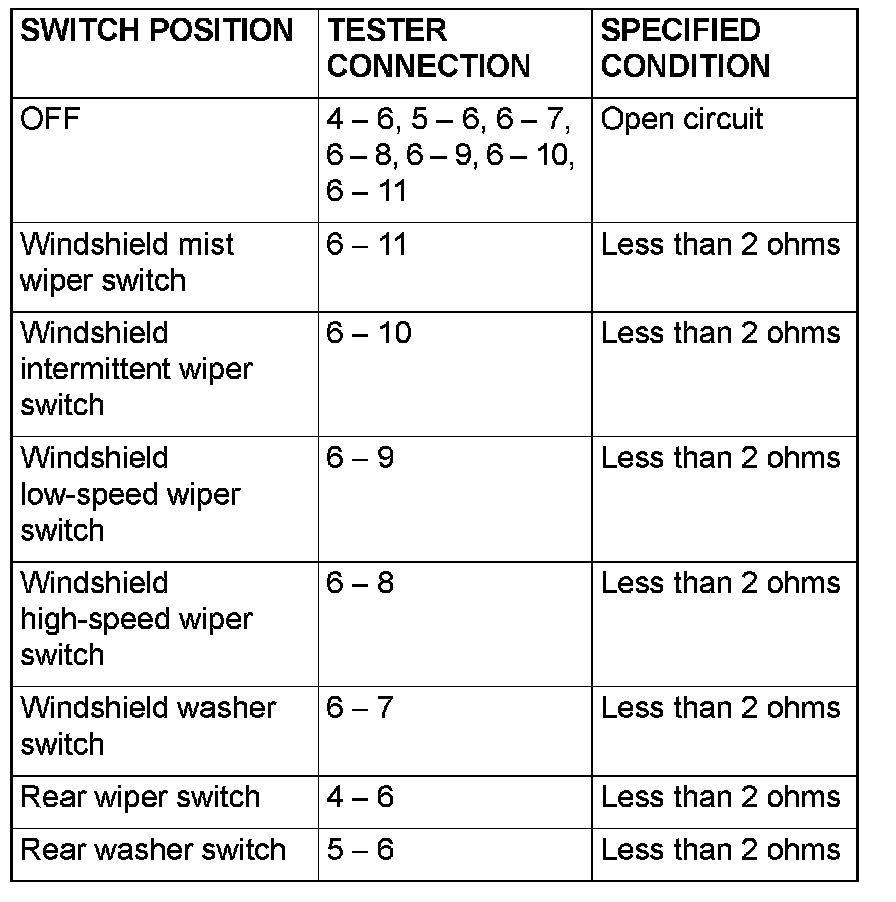

Remove the windshield wiper and washer switch. Then check continuity between the switch terminals.

Q: Are the windshield wiper and washer switch in good condition?

YES: Go to Step 3.

NO: Replace the column switch. If the equipment, which are described in "CIRCUIT OPERATION", work normally, the input signal from the column switch (windshield wiper and washer switch) should be normal.







STEP 3. Check the switch body.

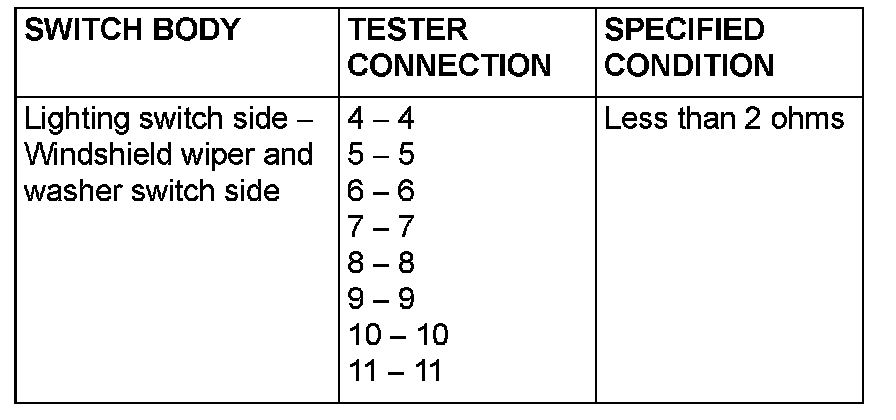

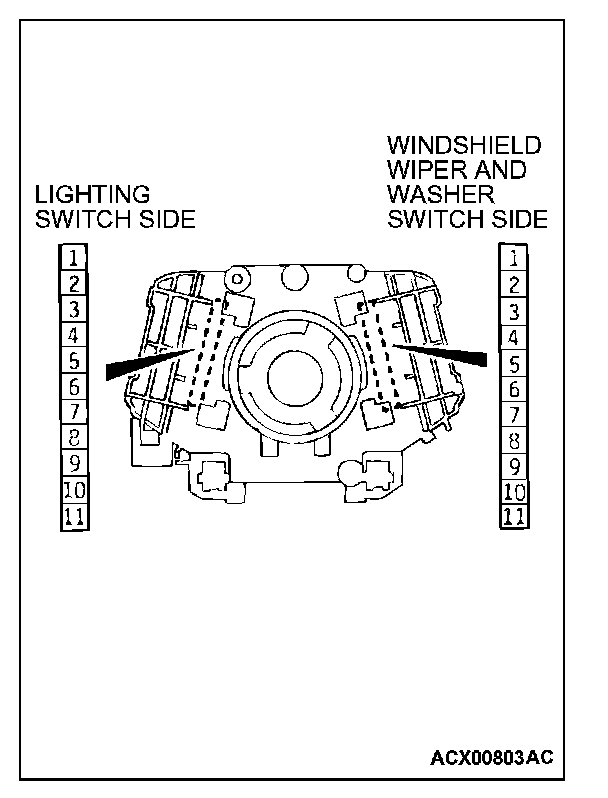

Remove the turn-signal light and lighting switch and windshield wiper and washer switch. Then check continuity between the switch body terminals.

Q: Is the switch body in good condition?

YES: Go to Step 4.

NO: Replace the column switch. If the equipment, which are described in "CIRCUIT OPERATION", work normally, the input signal from the column switch (windshield wiper and washer switch) should be normal.

STEP 4. Replace the ECU.

1. Replace the column switch (turn-signal light and lighting switch).
2. If the equipment, which are described in "CIRCUIT OPERATION", work normally, the input signal from the column switch (windshield wiper and washer switch) should be normal.

Q: Does the column switch (windshield wiper and washer switch) send a normal signal to the ECU?

YES: No action is necessary and testing is complete.

NO: Replace the ETACS-ECU. If the equipment, which are described in "CIRCUIT OPERATION", work normally, the input signal from the column switch (windshield wiper and washer switch) should be normal.
