Part 2 of 2

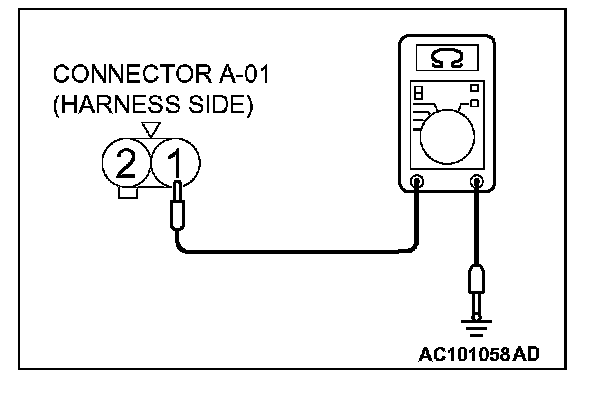

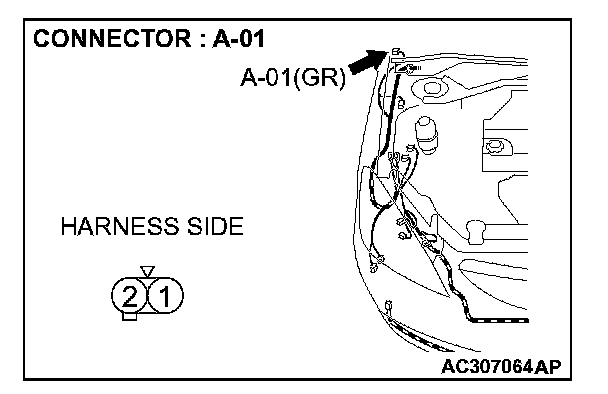

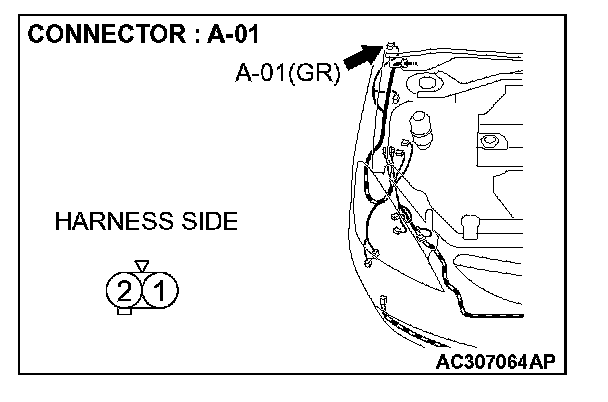

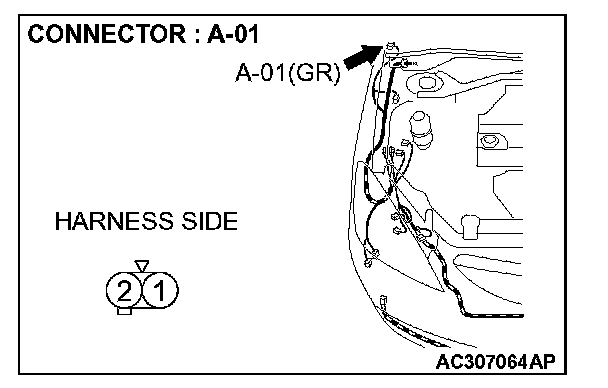

STEP 26. Check the ground circuit to the side turn-signal light (RH). Test at side turn-signal light (RH) connector A-01.

1. Disconnect side turn-signal light (RH) connector A-01 and measure the resistance available at the wiring harness side of the connector.

2. Measure the resistance value between terminal 1 and ground.
- The resistance should equal 2 Ohms or less.

Q: Is the measured resistance 2 Ohms or less?

YES: Go to Step 28.

NO: Go to Step 27.

STEP 27. Check the wiring harness between side turn-signal light (RH) connector A-01 (terminal 1) and ground.

Q: Is the wiring harness between side turn-signal light (RH) connector A-01 (terminal 1) and ground in good condition?

YES: Replace the socket. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

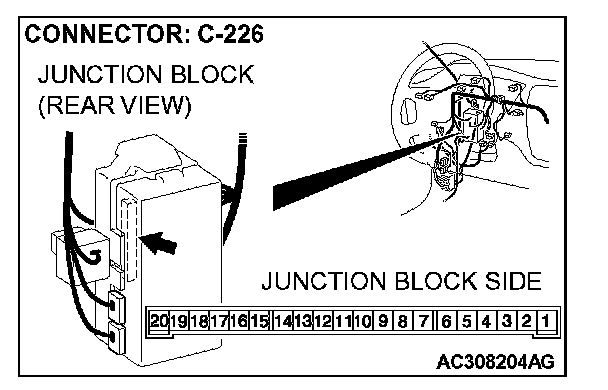

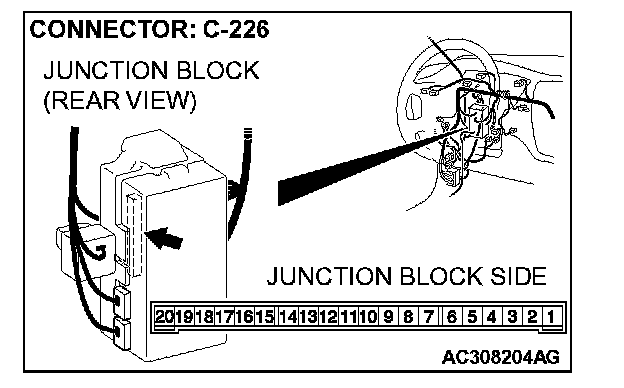

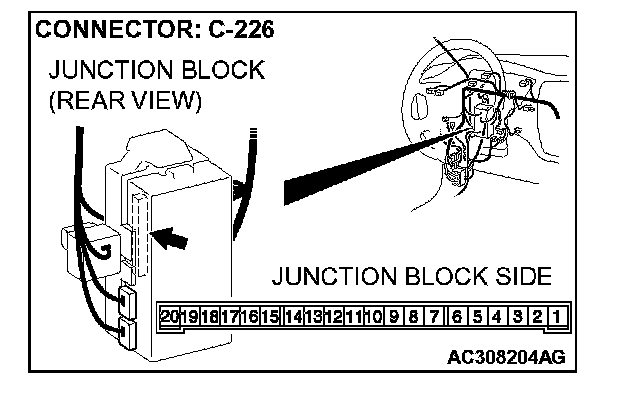

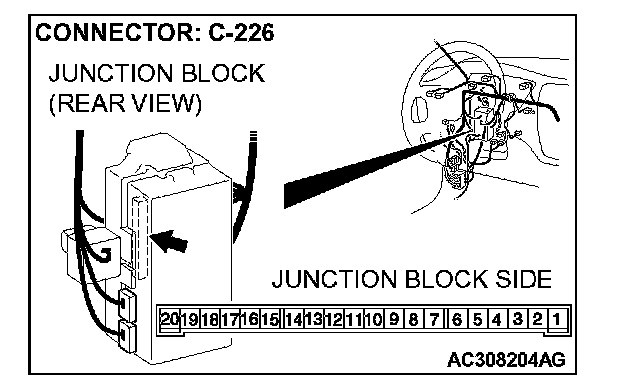

STEP 28. Check ETACS-ECU connector C-226 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is ETACS-ECU connector C-226 in good condition?

YES: Go to Step 29.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the turn-signal lights illuminate normally.

STEP 29. Check the wiring harness between side turn-signal light (RH) connector A-01 (terminal 2) and ETACS-ECU connector C-226 (terminal 9).

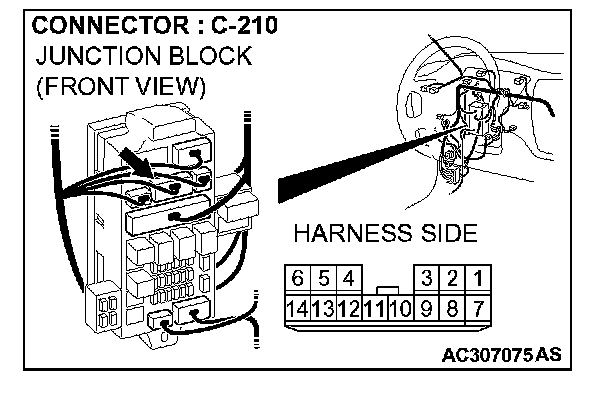

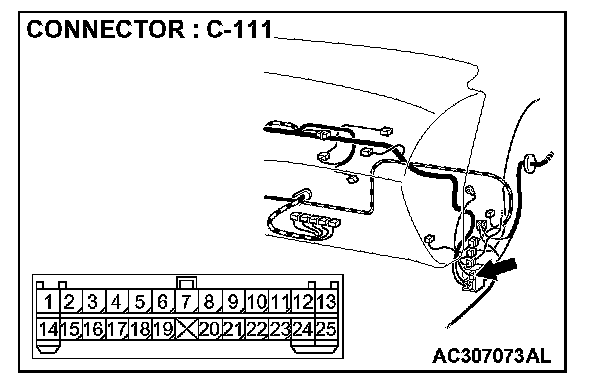

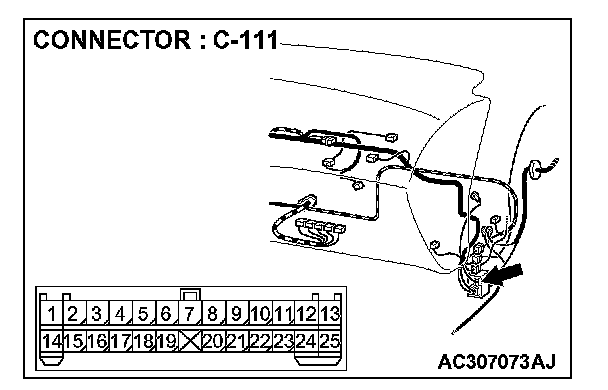

NOTE: Also check junction block connector C-210 and intermediate connector C-111 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If junction block connector C-210 or intermediate connector C-111 is damaged, repair or replace the damaged component(s) as described in Harness Connector Inspection.

Q: Is the wiring harness between side turn-signal light (RH) connector A-01 (terminal 2) and ETACS-ECU connector C-226 (terminal 9) in good condition?

YES: Replace the socket. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

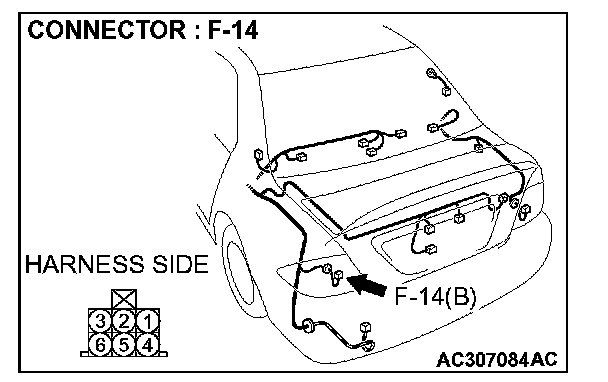

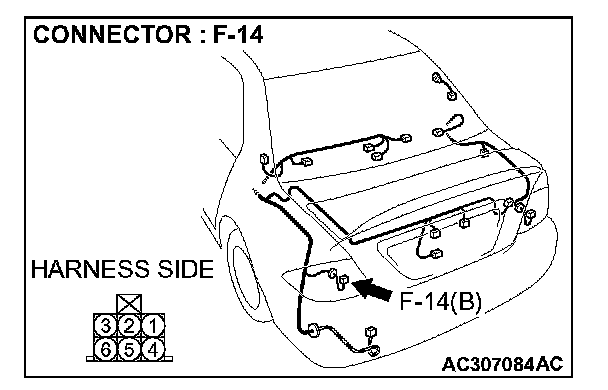

STEP 30. Check rear combination light (LH) connector F-14 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is rear combination light (LH) connector F-14 in good condition?

YES: Go to Step 31.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the turn-signal lights illuminate normally.

STEP 31. Check the rear turn-signal light bulb (LH).

1. Remove the rear turn-signal (LH) light bulb.
2. Verify that the rear turn-signal light bulb (LH) is not damaged or burned out.

Q: Is the rear turn-signal (LH) light bulb in good condition?

YES: Go to Step 32.

NO: Replace the rear turn-signal (LH) light bulb. Verify that the turn-signal lights illuminate normally.

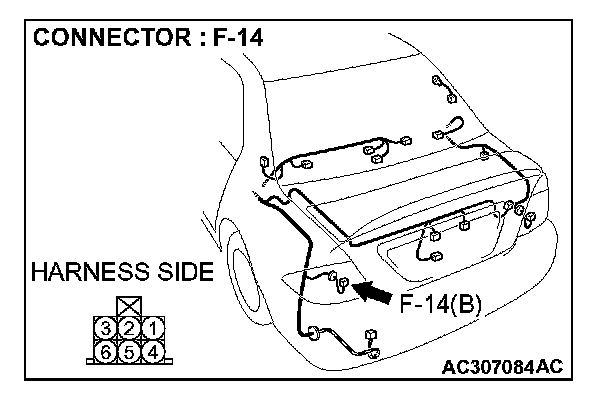

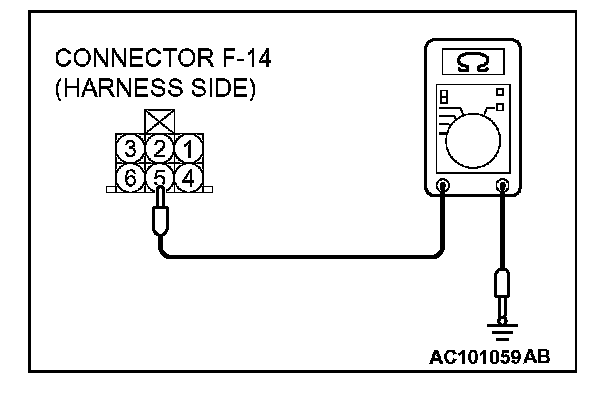

STEP 32. Check the ground circuit to the rear turn-signal light (LH). Test at rear combination light (LH) connector F-14.

1. Disconnect rear combination light (LH) connector F-14 and measure the resistance available at the wiring harness side of the connector.

2. Measure the resistance value between terminal 5 and ground.
- The resistance should equal 2 Ohms or less.

Q: Is the measured resistance 2 Ohms or less?

YES: Go to Step 34.

NO: Go to Step 33.

STEP 33. Check the wiring harness between rear combination light (LH) connector F-14 (terminal 5) and ground.

Q: Is the wiring harness between rear combination light (LH) connector F-14 (terminal 5) and ground in good condition?

YES: Replace the socket assembly. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

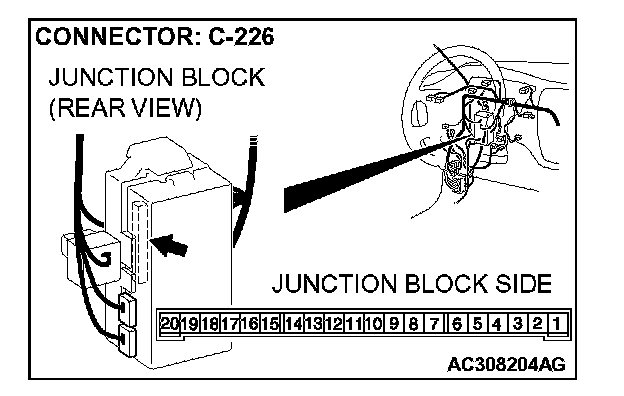

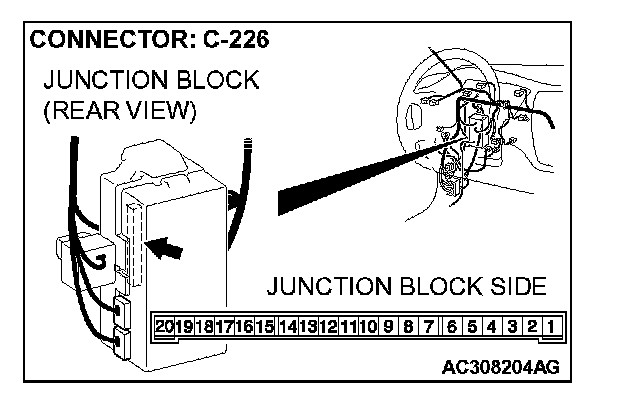

STEP 34. Check ETACS-ECU connector C-226 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Are rear combination light (LH) connector F-14 and ETACS-ECU connector C-226 in good condition?

YES: Go to Step 35.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the turn-signal lights illuminate normally.

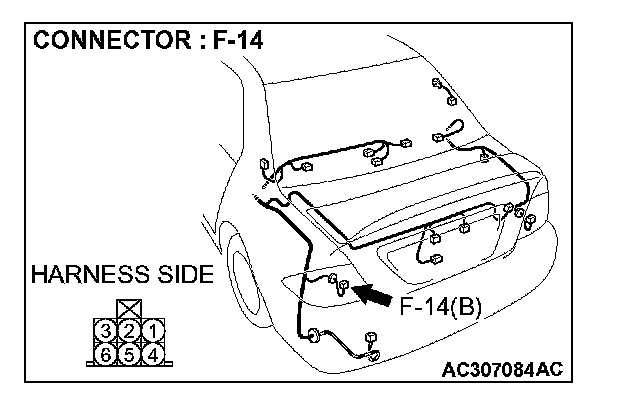

STEP 35. Check the wiring harness between rear combination light (LH) connector F-14 (terminal 1) and ETACS-ECU connector C-226 (terminal 14).

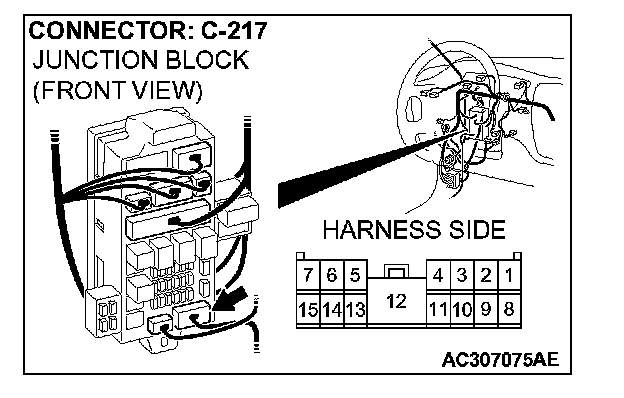

NOTE: Also check junction block connector C-217 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If junction block connector C-217 is damaged, repair or replace the damaged component(s) as described in Harness Connector Inspection.

Q: Is the wiring harness between rear combination light (LH) connector F-14 (terminal 1) and ETACS-ECU connector C-226 (terminal 14) in good condition?

YES: Replace the socket assembly. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

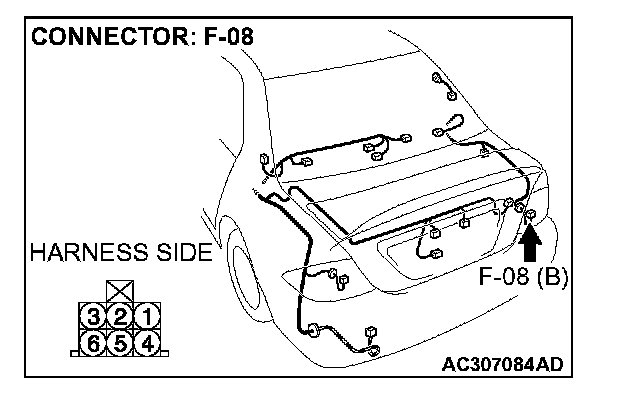

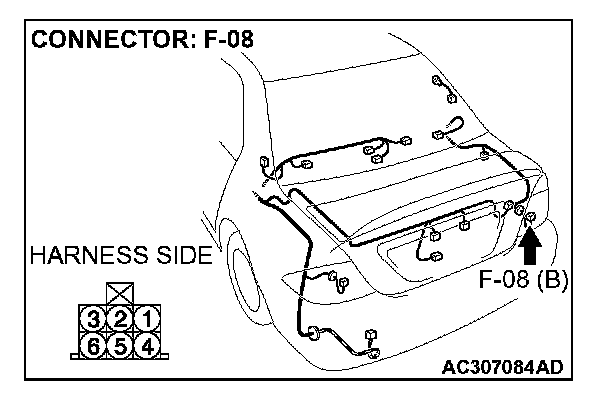

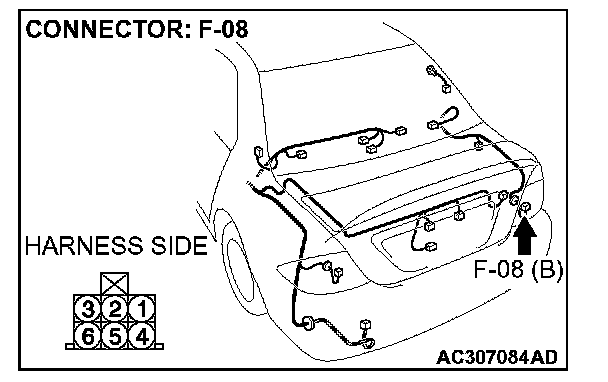

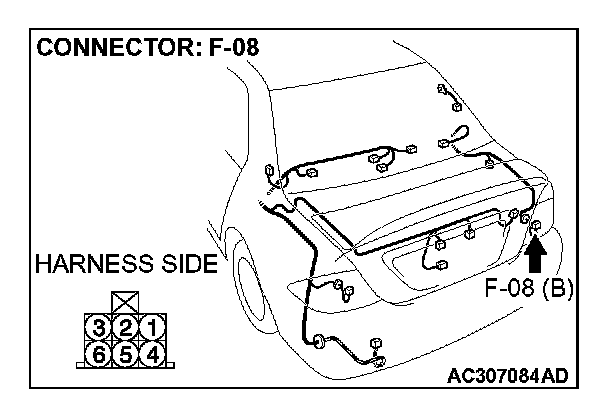

STEP 36. Check rear combination light (RH) connector F-08 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is rear combination light (RH) connector F-08 in good condition?

YES: Go to Step 37.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the turn-signal lights illuminate normally.

STEP 37. Check the rear turn-signal light bulb (RH).

1. Remove the rear turn-signal light bulb (RH).
2. Verify that the rear turn-signal light bulb (RH) is not damaged or burned out.

Q: Is the rear turn-signal light bulb (RH) in good condition?

YES: Go to Step 38.

NO: Replace the rear turn-signal (RH) light bulb. Verify that the turn-signal lights illuminate normally.

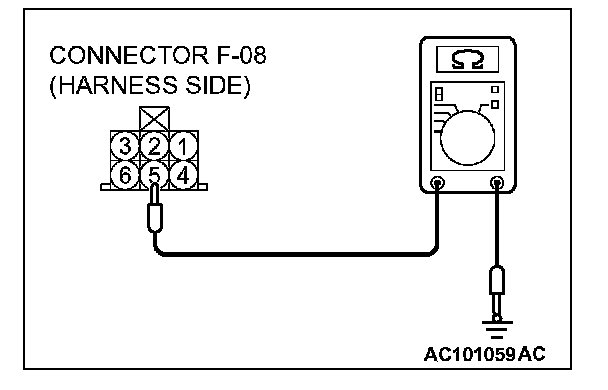

STEP 38. Check the ground circuit to the rear turn-signal light (RH). Test at rear combination light (RH) connector F-08.

1. Disconnect rear combination light (LH) connector F-08 and measure the resistance available at the wiring harness side of the connector.

STEP 39. Check the wiring harness between rear combination light (RH) connector F-08 (terminal 5) and ground.

Q: Is the wiring harness between rear combination light (RH) connector F-08 (terminal 5) and ground in good condition?

YES: Replace the socket assembly. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

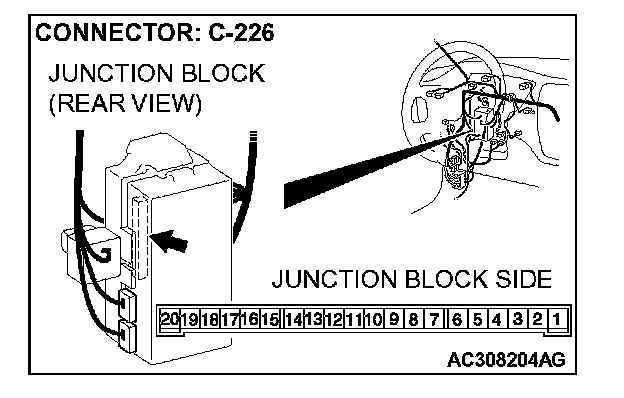

STEP 40. Check ETACS-ECU connector C-226 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is ETACS-ECU connector C-226 in good condition?

YES: Go to Step 41.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the turn-signal lights illuminate normally.

STEP 41. Check the wiring harness between rear combination light (RH) connector F-08 (terminal 1) and ETACS-ECU connector C-226 (terminal 9).

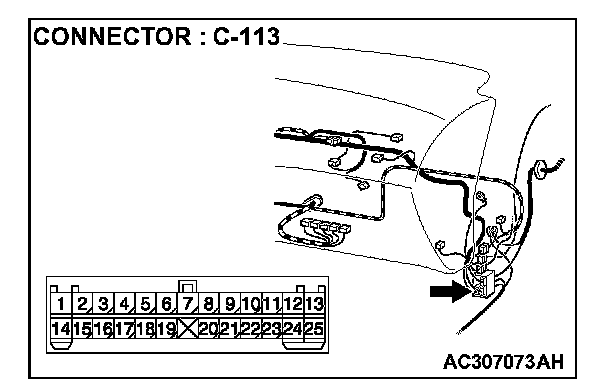

NOTE: Also check junction block connector C-210 and intermediate connector C-113 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If junction block connector C-210 or intermediate connector C-113 is damaged, repair or replace the damaged component(s) as described in Harness Connector Inspection.

Q: Is the wiring harness between rear combination light (RH) connector F-08 (terminal 1) and ETACS-ECU connector C-226 (terminal 9) in good condition?

YES: Replace the socket assembly. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

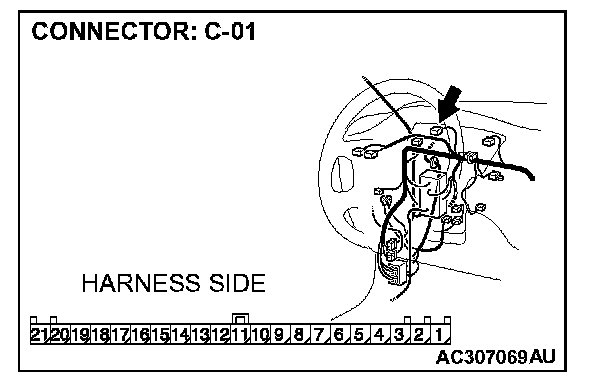

STEP 42. Check combination meter connector C-01 and ETACS-ECU connector C-226 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Are combination meter connector C-01 and ETACS-ECU connector C-226 in good condition?

YES: Go to Step 43.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the turn-signal lights illuminate normally.

STEP 43. Check the wiring harness between combination meter connector C-01 (terminal 3) and ETACS-ECU connector C-226 (terminal 14).

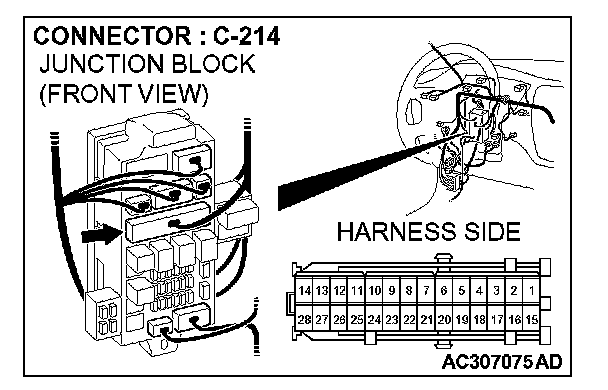

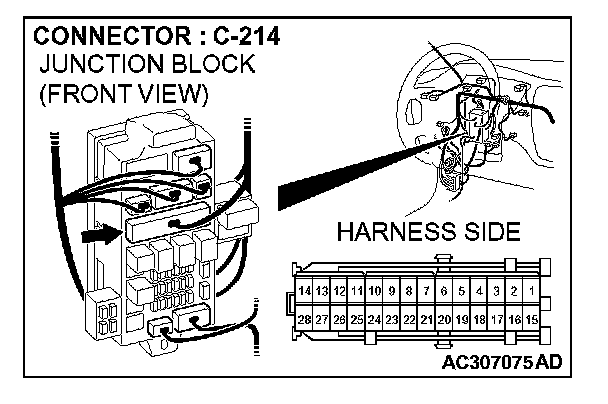

NOTE: Also check junction block connector C-214 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If junction block connector C-214 is damaged, repair or replace the damaged component(s) as described in Harness Connector Inspection.

Q: Is the wiring harness between combination meter connector C-01 (terminal 3) and ETACS-ECU connector C-226 (terminal 14) in good condition?

YES: Replace the combination meter. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

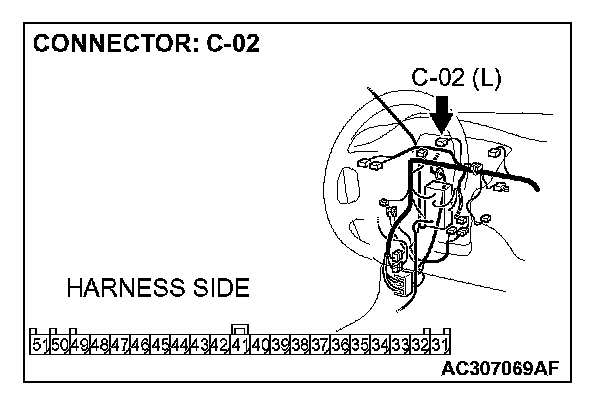

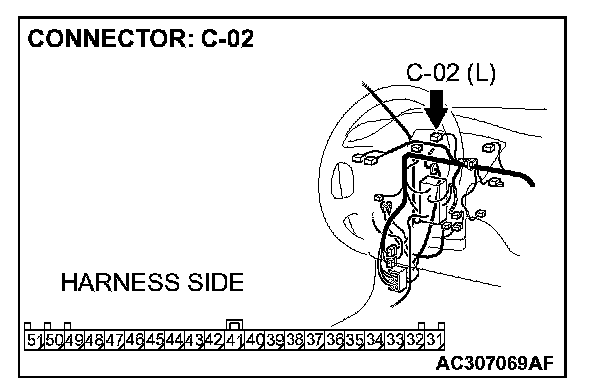

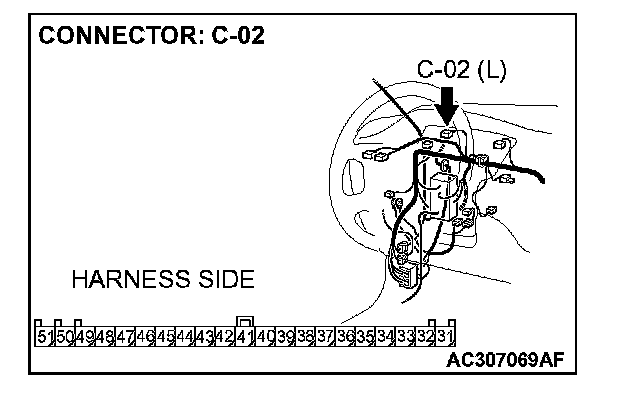

STEP 44. Check combination meter connector C-02 and ETACS-ECU connector C-226 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Are combination meter connector C-02 and ETACS-ECU connector C-226 in good condition?

YES: Go to Step 45.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the turn-signal lights illuminate normally.

STEP 45. Check the wiring harness between combination meter connector C-02 (terminal 49) and ETACS-ECU connector C-226 (terminal 9).

NOTE: Also check junction block connector C-214 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If junction block connector C-214 is damaged, repair or replace the damaged component(s) as described in Harness Connector Inspection.

Q: Is the wiring harness between combination meter connector C-02 (terminal 49) and ETACS-ECU connector C-226 (terminal 9) in good condition?

YES: Replace the combination meter. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

STEP 46. Check combination meter connector C-02 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is combination meter connector C-02 in good condition?

YES: Go to Step 47.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the turn-signal lights illuminate normally.

STEP 47. Check the wiring harness between combination meter connector C-02 (terminal 48) and ground.

Q: Is the wiring harness between combination meter connector C-02 (terminal 48) and ground in good condition?

YES: Replace the combination meter. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

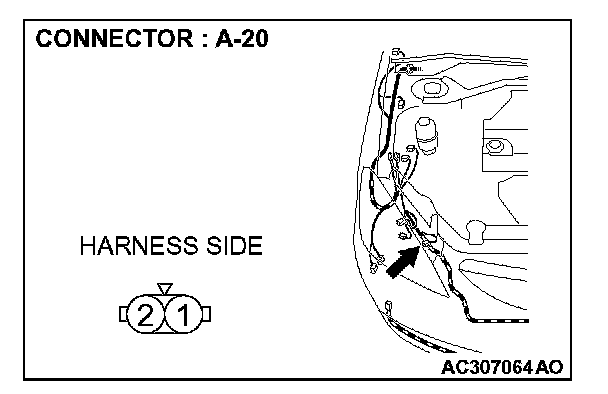

STEP 48. Check front turn-signal light (RH) connector A-20 and ETACS-ECU connector C-226 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Are front turn-signal light (RH) connector A-20 and ETACS-ECU connector C-226 in good condition?

YES: Go to Step 49.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the turn-signal lights illuminate normally.

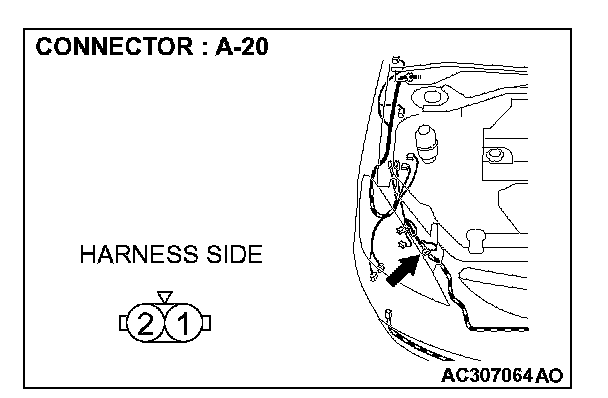

STEP 49. Check the wiring harness between front turn-signal light (RH) connector A-20 (terminal 2) and ETACS-ECU connector C-226 (terminal 9).

NOTE: Also check junction block connector C-210 and intermediate connector C-111 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If junction block connector C-210 or intermediate connector C-111 is damaged, repair or replace the damaged component(s) as described in Harness Connector Inspection.

Q: Is the wiring harness between front turn-signal light (RH) connector A-20 (terminal 2) and ETACS-ECU connector C-226 (terminal 9) in good condition?

YES: Replace the socket. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.
