Inspection Procedure J-11

Headlight and Taillight: Daytime running light function does not work normally.

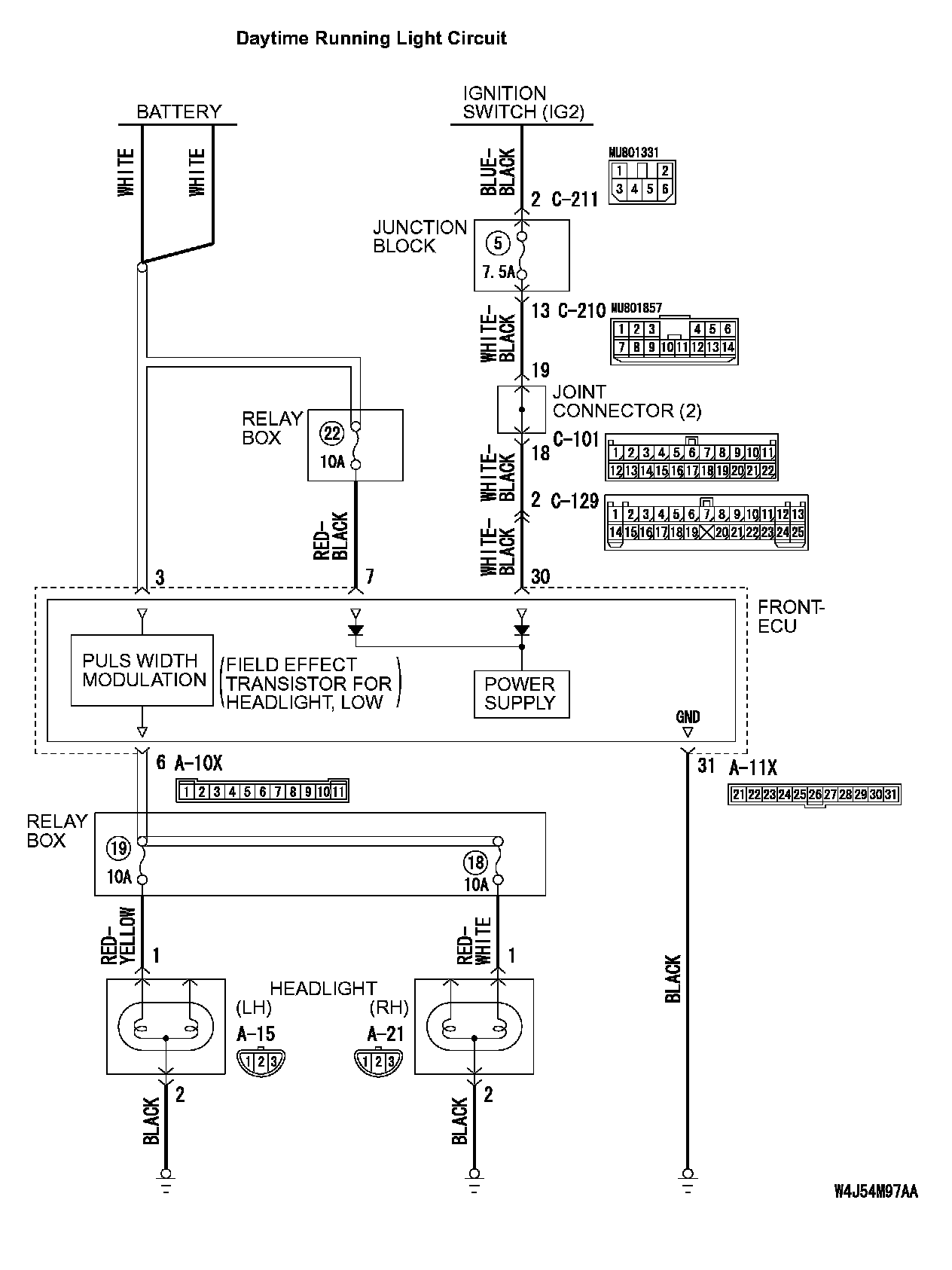

Daytime Running Light Circuit:






TECHNICAL DESCRIPTION (COMMENT)
If the daytime running light function is not operating normally the front-ECU power circuit may be defective or the front-ECU may be defective.

TROUBLESHOOTING HINTS
- The front-ECU may be defective
- The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector

DIAGNOSIS

Required Special Tools:
- MB991223: Harness Set
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: MUT-III USB Cable
- MB991911: MUT-III Main Harness B
- MB991813: SWS Monitor Kit
- MB991806: SWS Monitor Cartridge
- MB991812: SWS Monitor Harness (For Column-ECU)
- MB991922: Probe Harness

STEP 1. Verify the headlight (low-beam) operation.
Check to see that the headlight (low-beam) lights up properly when operating the dimmer switch while the headlight switch is ON.

Q: Do the headlights (low-beam) illuminate normally?

YES: Go to Step 2.

NO: Refer to Inspection Procedure J-2 "Headlights (low-beam) do not illuminate normally."

STEP 2. Use scan tool MB991958 to select "ECU COMM CHK" on the SWS monitor display.
Check the following ECUs:
- Front-ECU

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958. Connect the DLC harness before connecting the column-ECU harness. Be sure to connect SWS monitor kit MB991862 after turning on scan tool MB991958.







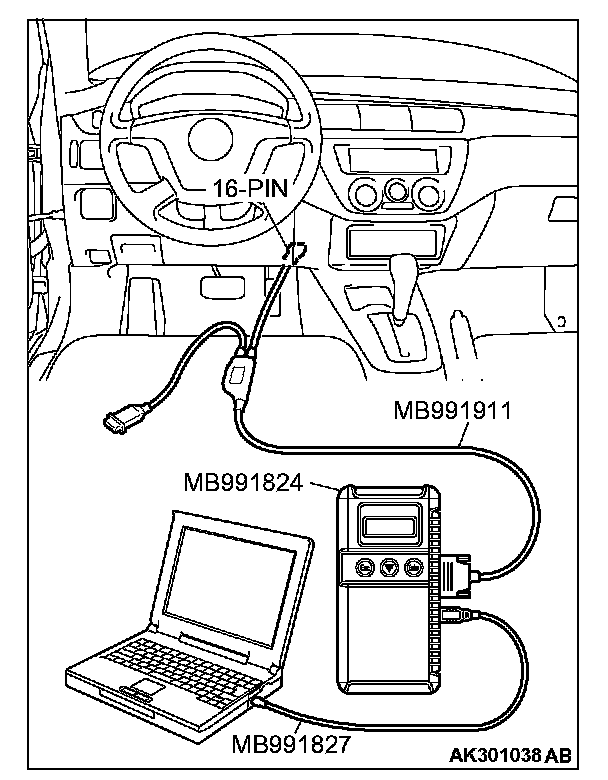

1. Connect scan tool MB991958 to the data link connector.

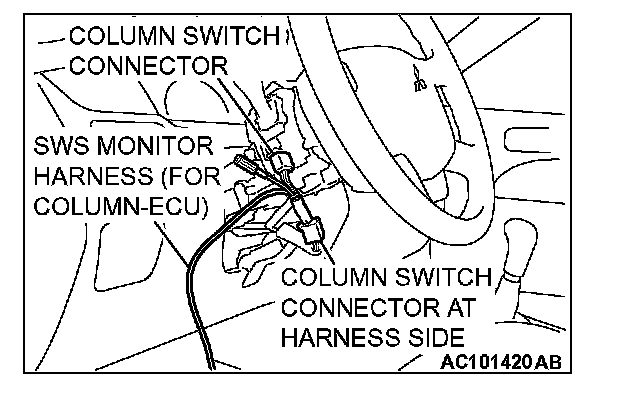

2. Connect SWS monitor kit MB991862 to the column switch connector.
3. Turn the ignition switch to the "ON" position.
4. Operate scan tool MB991958 according to the procedure below to display "ECU COMM CHK."
1. Select "SYSTEM SELECT."
2. Select "SWS."
3. Select "SWS MONITOR."
4. Select "ECU COMM CHK."

5. Scan tool MB991958 should show "OK" on the "ECU COMM CHK" menu for the "FRONT ECU" menu.

Q: Is "OK" displayed on the "FRONT ECU"menu?

YES: Replace the front-ECU. The daytime running light function should now work normally.

NO: Refer to Inspection procedure A-4 "Communication with the front-ECU is not possible."
