Scan Tool Testing and Procedures

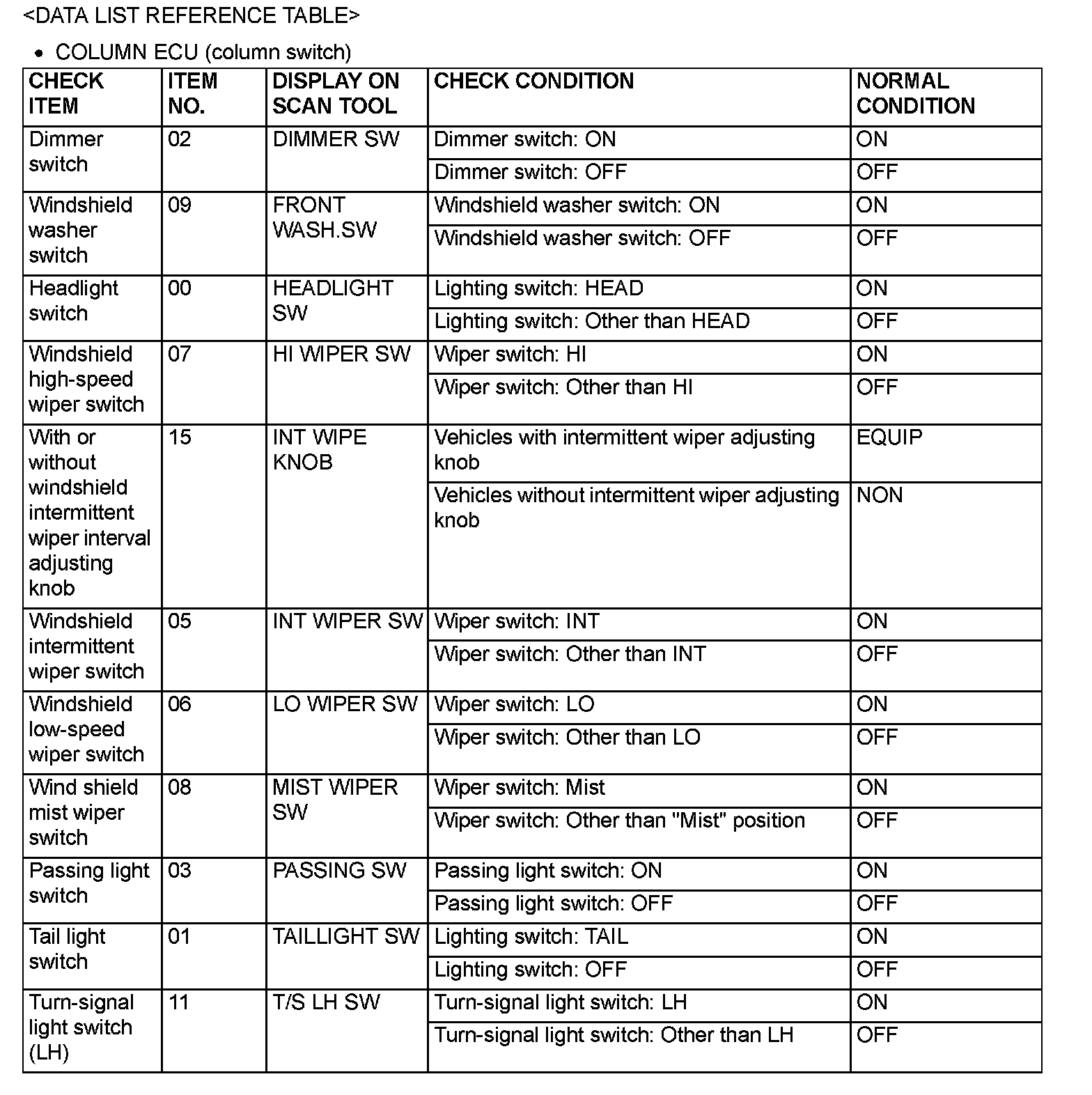

Column ECU (Column Switch) Part 1:

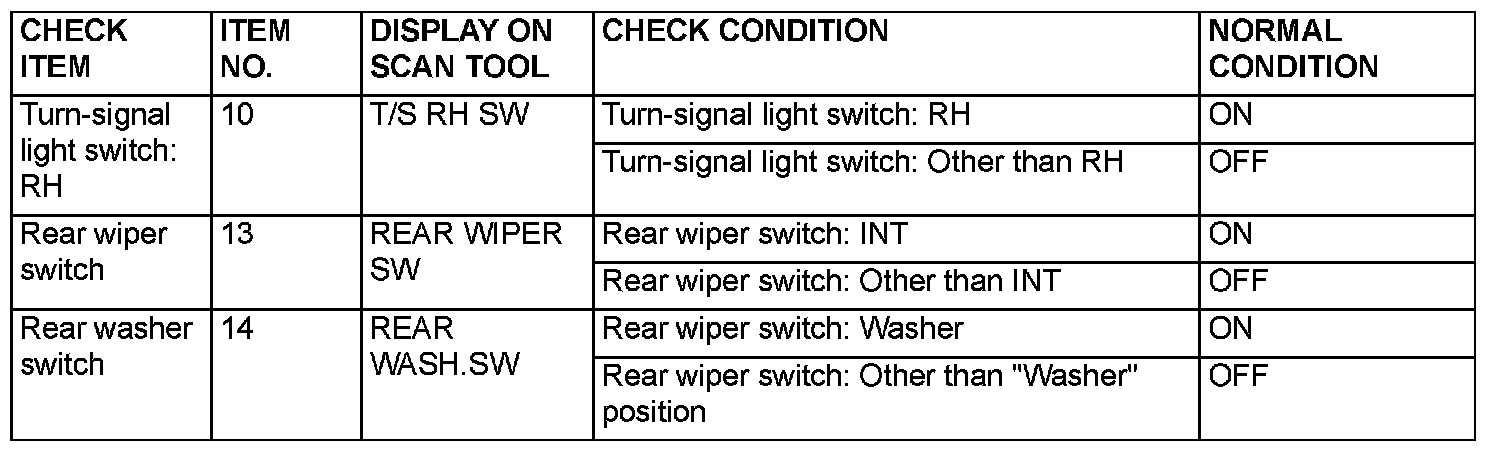

Column ECU (Column Switch) Part 2:

- COLUMN ECU (column switch)

NOTE: For item number 43, the scan tool also display "ON" when the light reminder tone alarm or R (reverse) position warning tone alarm is triggered.

NOTE: For item number 70, the scan tool also displays "NG" under the "ECU COMM CHK" when it displays "NO ACK" under the front-ECU check.

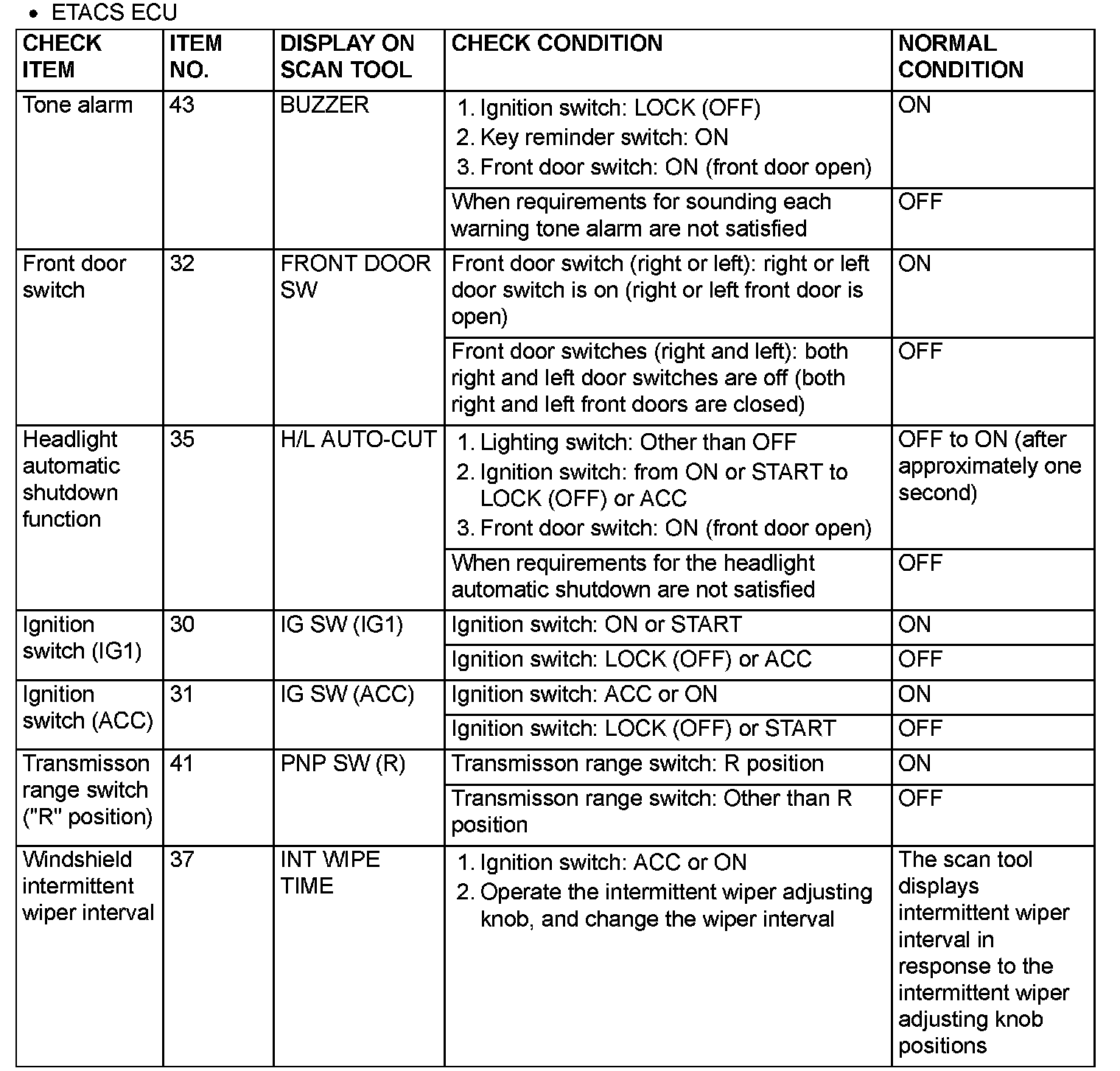

ETACS ECU:

ETACS ECU

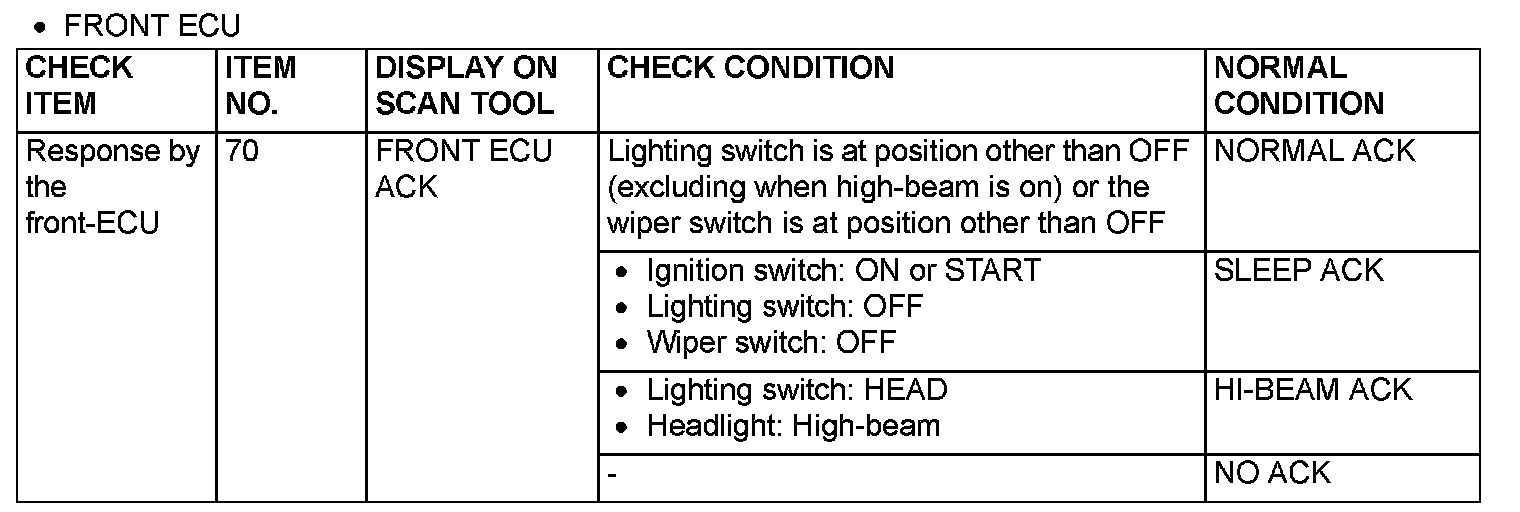

Front ECU:

FRONT ECU


The table shows the service data and their normal condition, which are displayed during the "FUNCTION DIAG." The row "Normal conditions" shows values, which are shown when each operation is made.

NOTE: When checking the input signals (off, tail, low-beam or high-beam), turn the ignition switch to the "ON" position in order to disable the headlight automatic shutdown function. However, the headlight operation does not depend on the ignition switch positions, the scan tool does not display the title "IGNITION SWITCH".

For checking item "HI (High-beam)", the scan tool displays "OFF" on the item number 2 "Dimmer SW" when the headlights are at high-beam. Therefore, the scan tool should display "ON" momentarily when the dimmer switch is operated.

NOTE: The headlight automatic shutdown function works in approximately one second after the lighting monitor tone alarm starts sounding, and then the tone alarm ceases sounding.

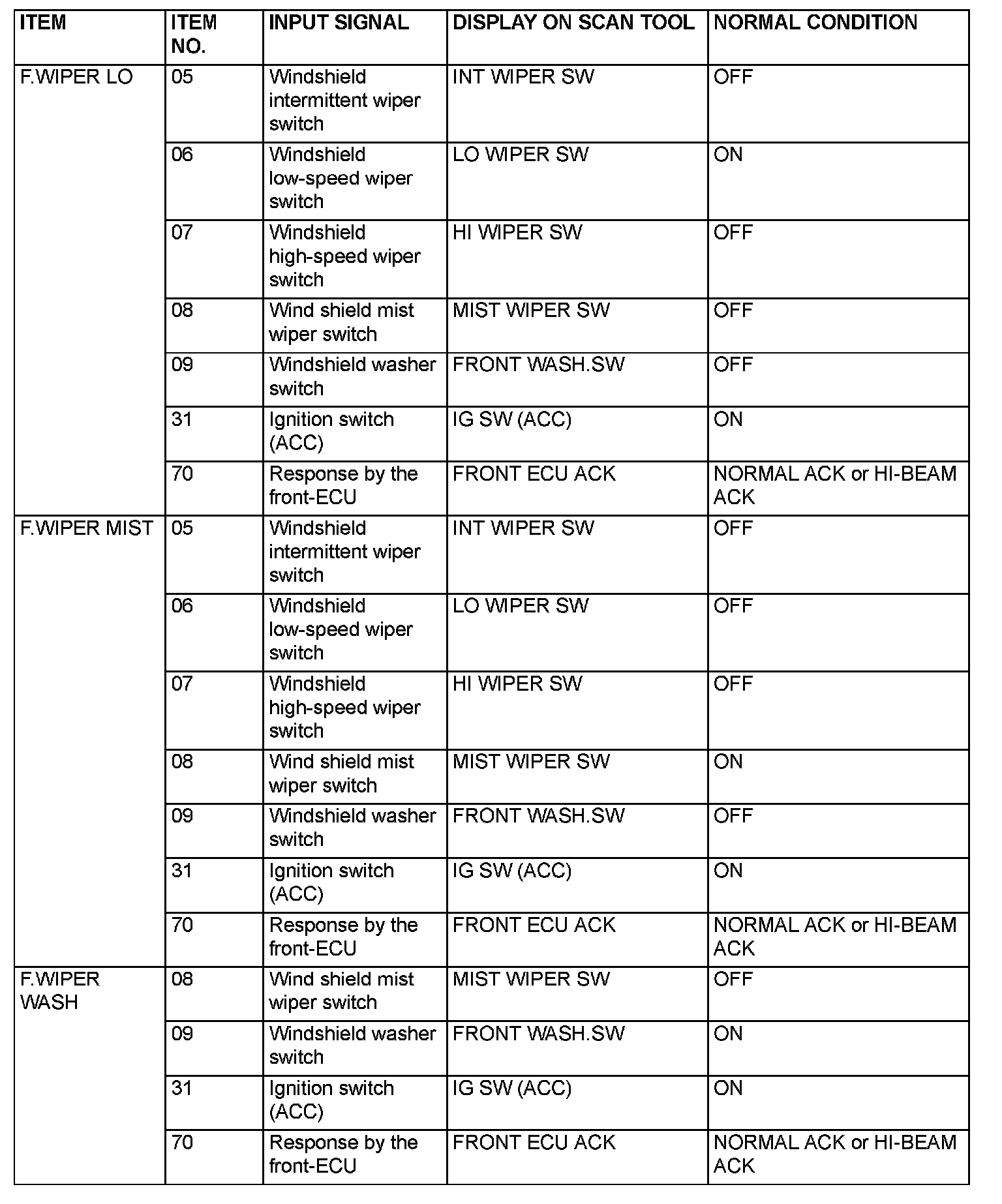

WIPER Part 1:

WIPER Part 2:

WIPER

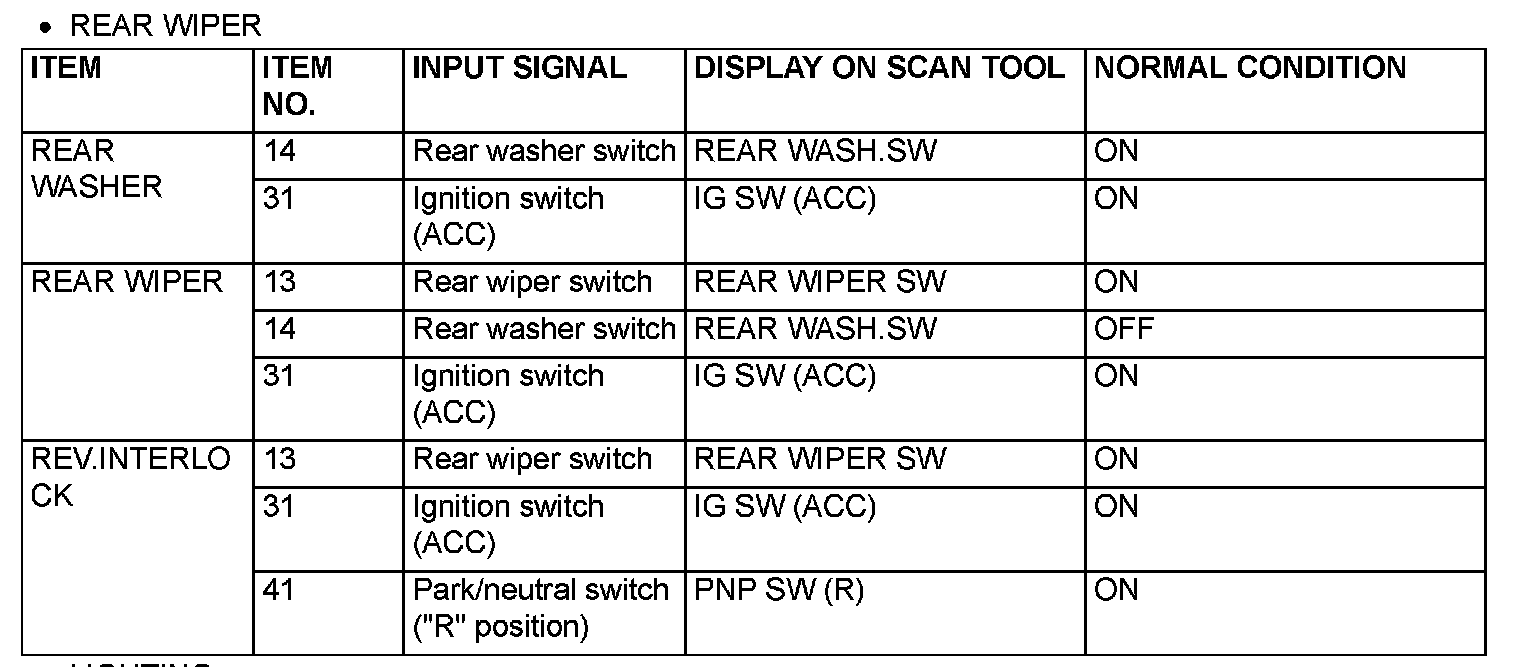

Rear Wiper:

REAR WIPER

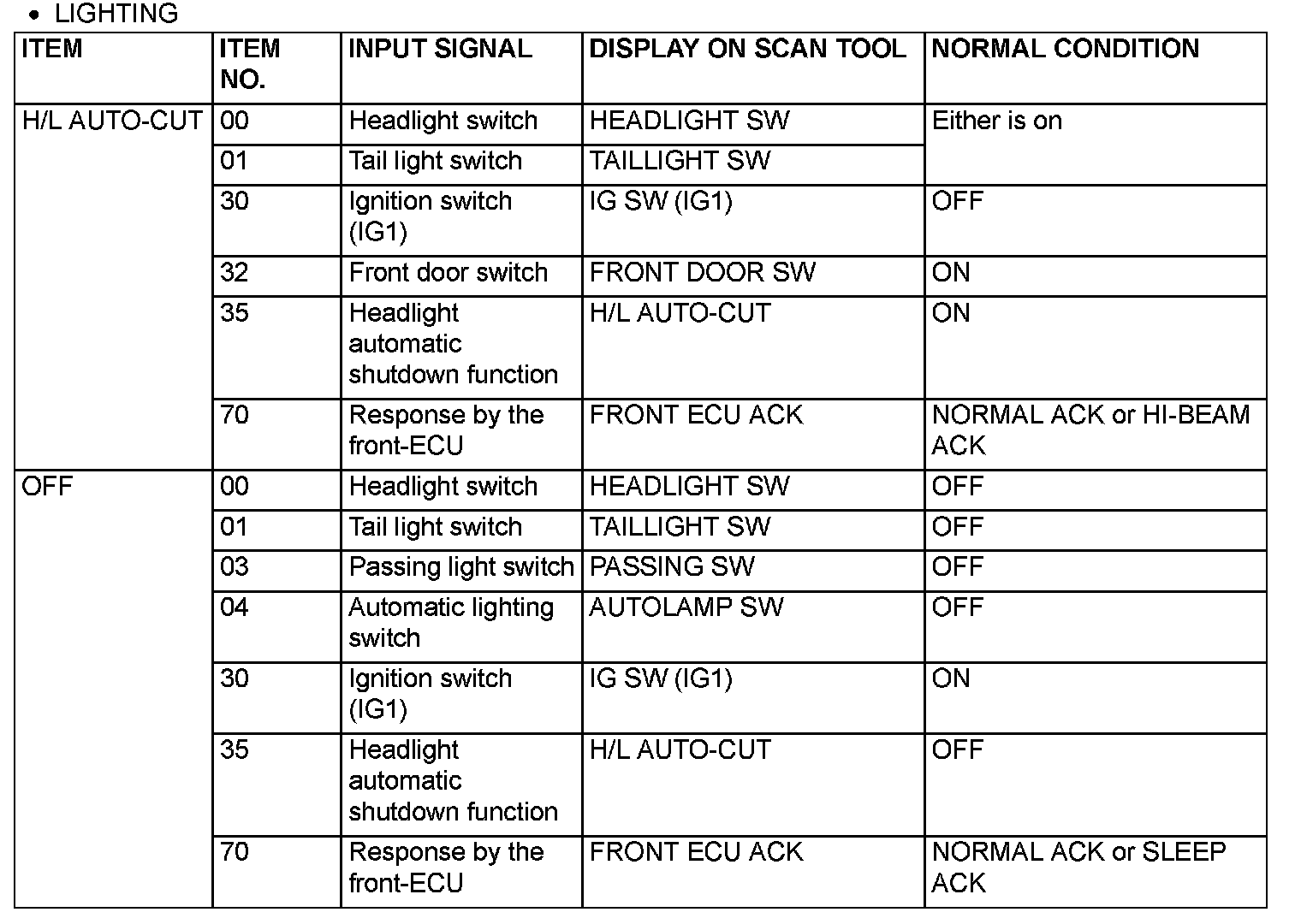

Lighting Part 1:

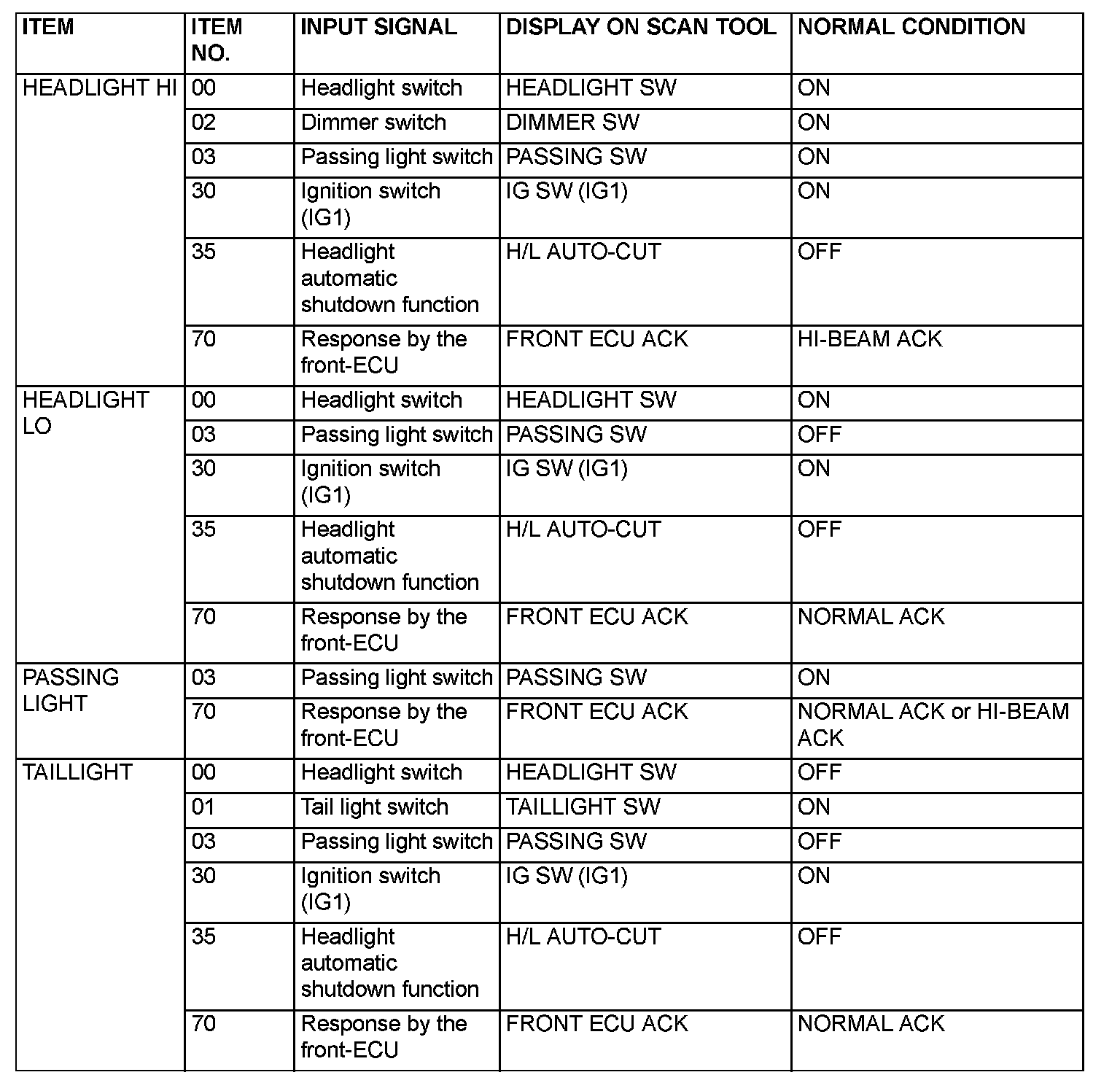

Lighting Part 2:

LIGHTING

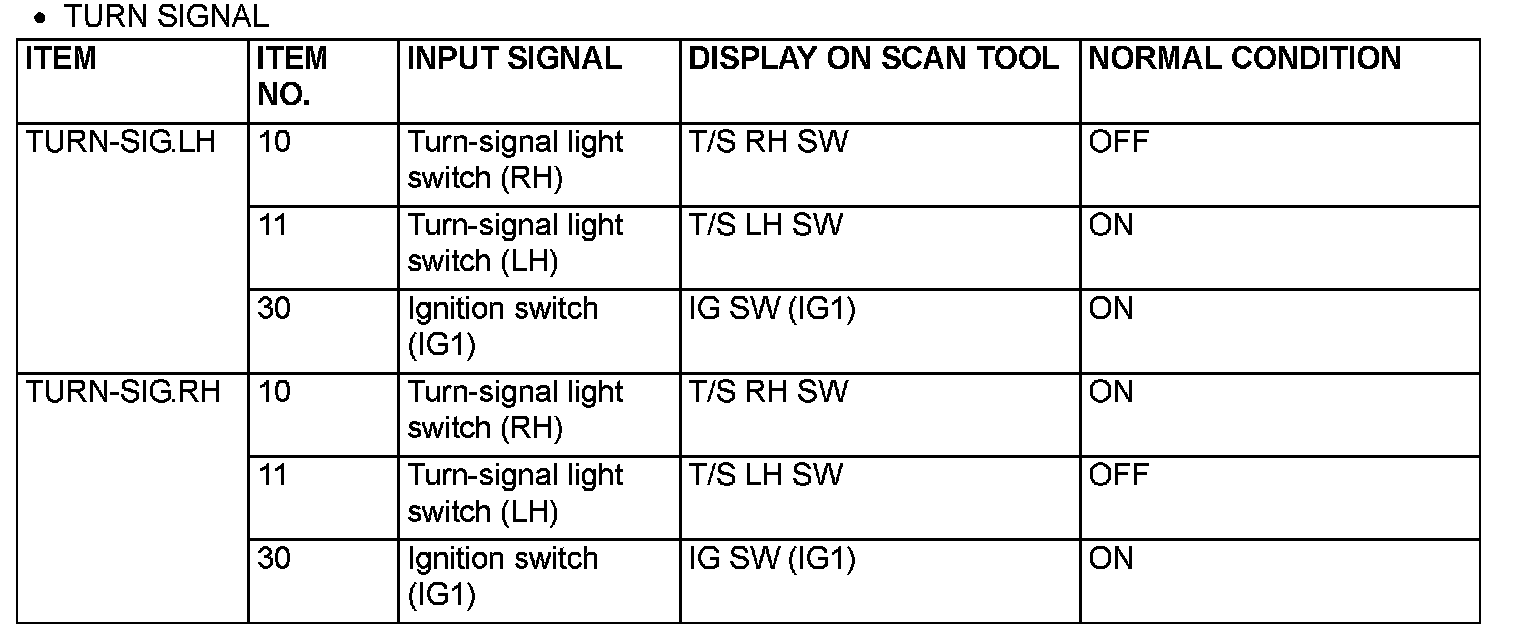

Turn Signal:

TURN SIGNAL

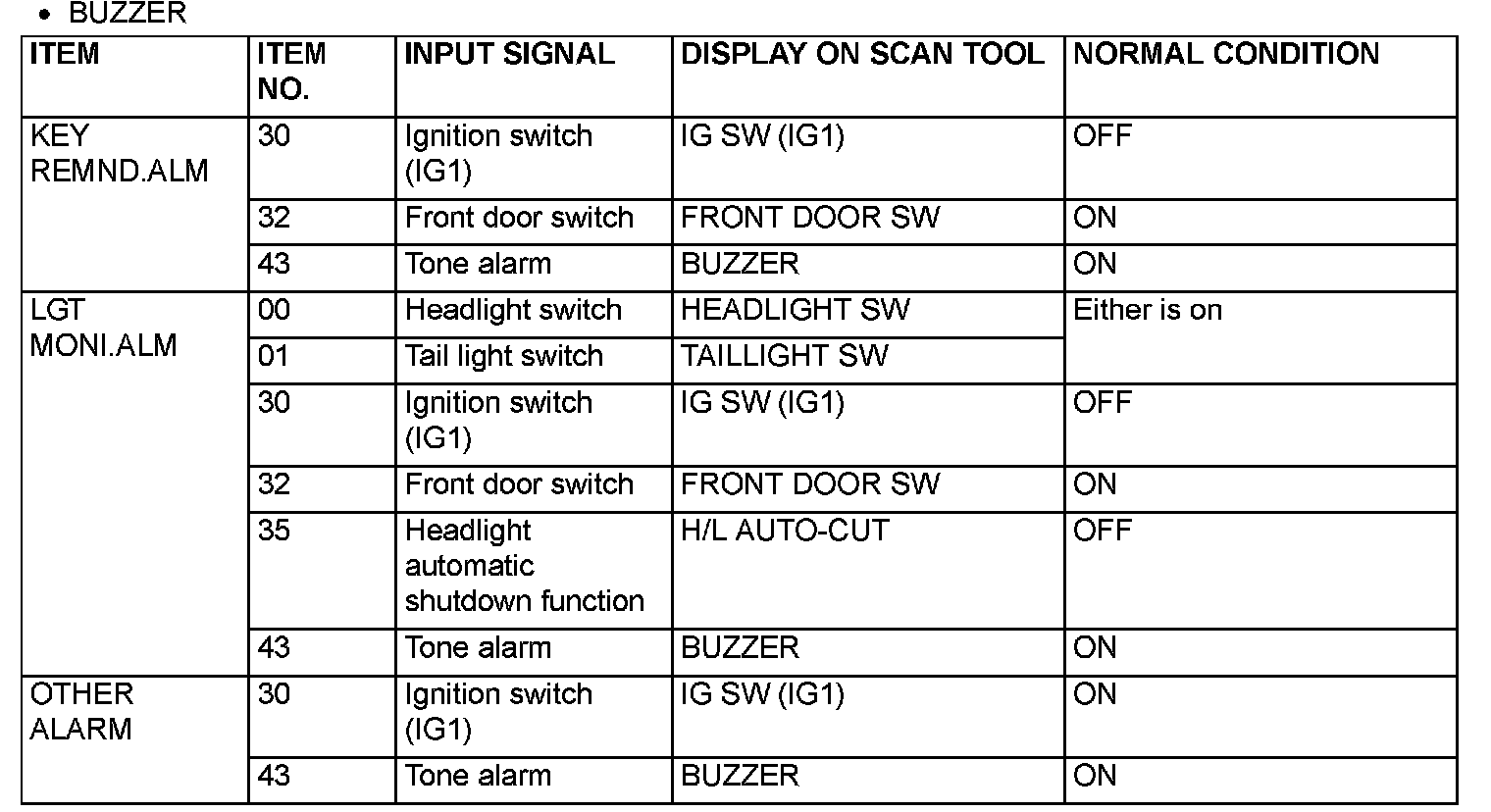

Buzzer:

BUZZER
