How to Connect SWS Monitor

HOW TO CONNECT SWS MONITOR

HOW TO CONNECT THE SCAN TOOL (MUT-III)

Required Special Tools:
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: MUT-III USB Cable
- MB991911: MUT-III Main Harness B
- MB991813: SWS Monitor Kit
- MB991806: SWS Monitor Cartridge
- MB991812: SWS Monitor Harness (For Column-ECU)
- MB991822: Probe Harness




CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Ensure that the ignition switch is at the "LOCK" (OFF) position.
2. Start up the personal computer.

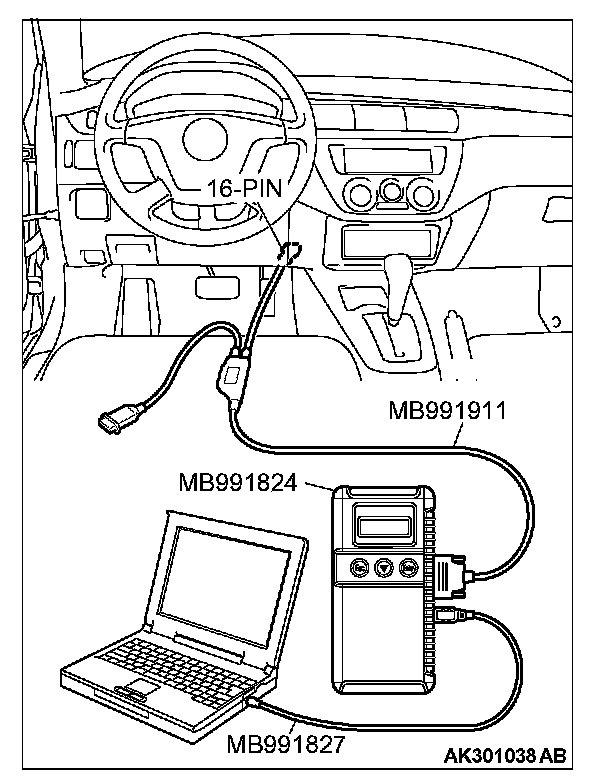

3. Connect special tool MB991827 to special tool MB991824 and the personal computer.
4. Connect special tool MB991911 to special tool MB991824.
5. Connect special tool MB991911 to the data link connector.

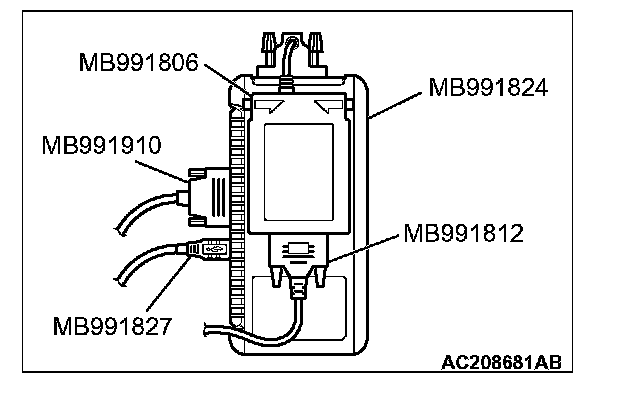

6. Connect special tool MB991812 to special tool MB991806.
7. Connect special tool MB991806 to special tool MB991824.
8. Turn the power switch of special tool MB991824 to the "ON" position.

NOTE: When special tool MB991824 is energized, special tool MB991824 indicator light will be illuminated in a green color.

9. Start the MUT-III system on the personal computer.
10. Connect the SWS monitor to the vehicle.

HOW TO CONNECT SWS MONITOR

CAUTION: Always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting the SWS monitor kit and scan tool MB991958. Connect the DLC harness before connecting the column-ECU harness. Be sure to connect SWS monitor kit MB991862 after turning on the scan tool MB991958.

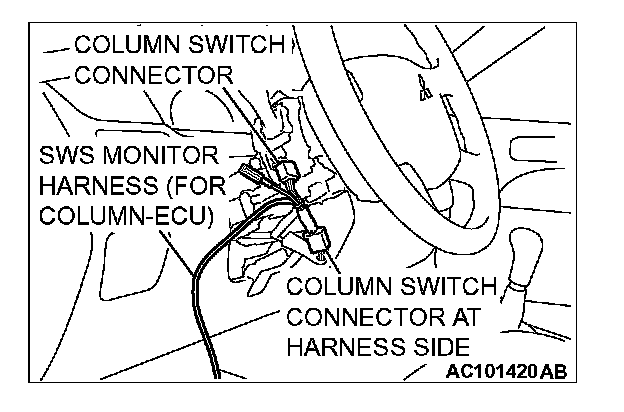

1. Remove the steering column cover.
2. Remove the steering column switch connector.




3. Connect the SWS monitor harness (for column-ECU).
