Home >> Mitsubishi >> 2004 >> Lancer L4-2.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Reading and Clearing Diagnostic Trouble Codes >> How To Use SWS Monitor

How To Use SWS Monitor

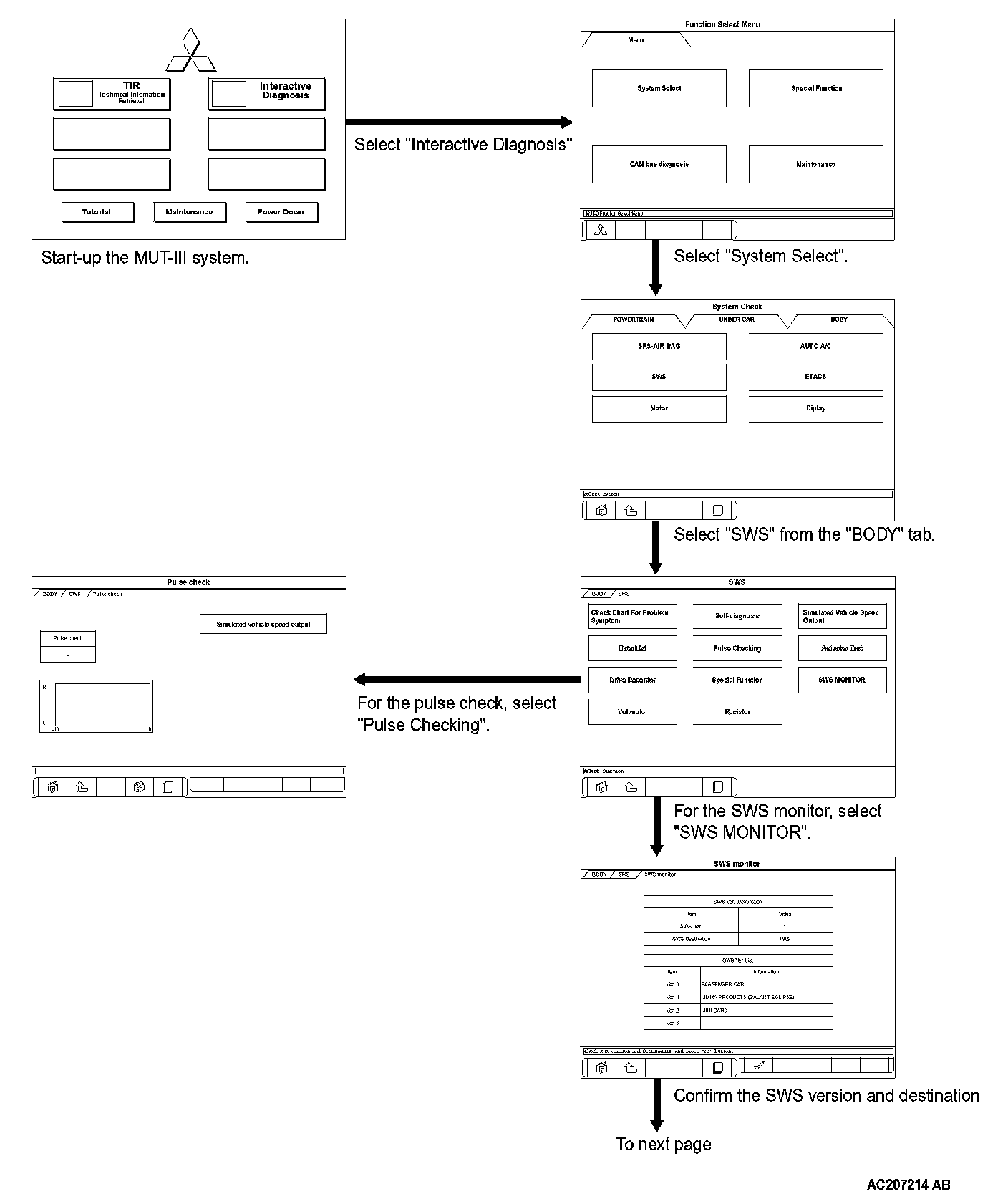

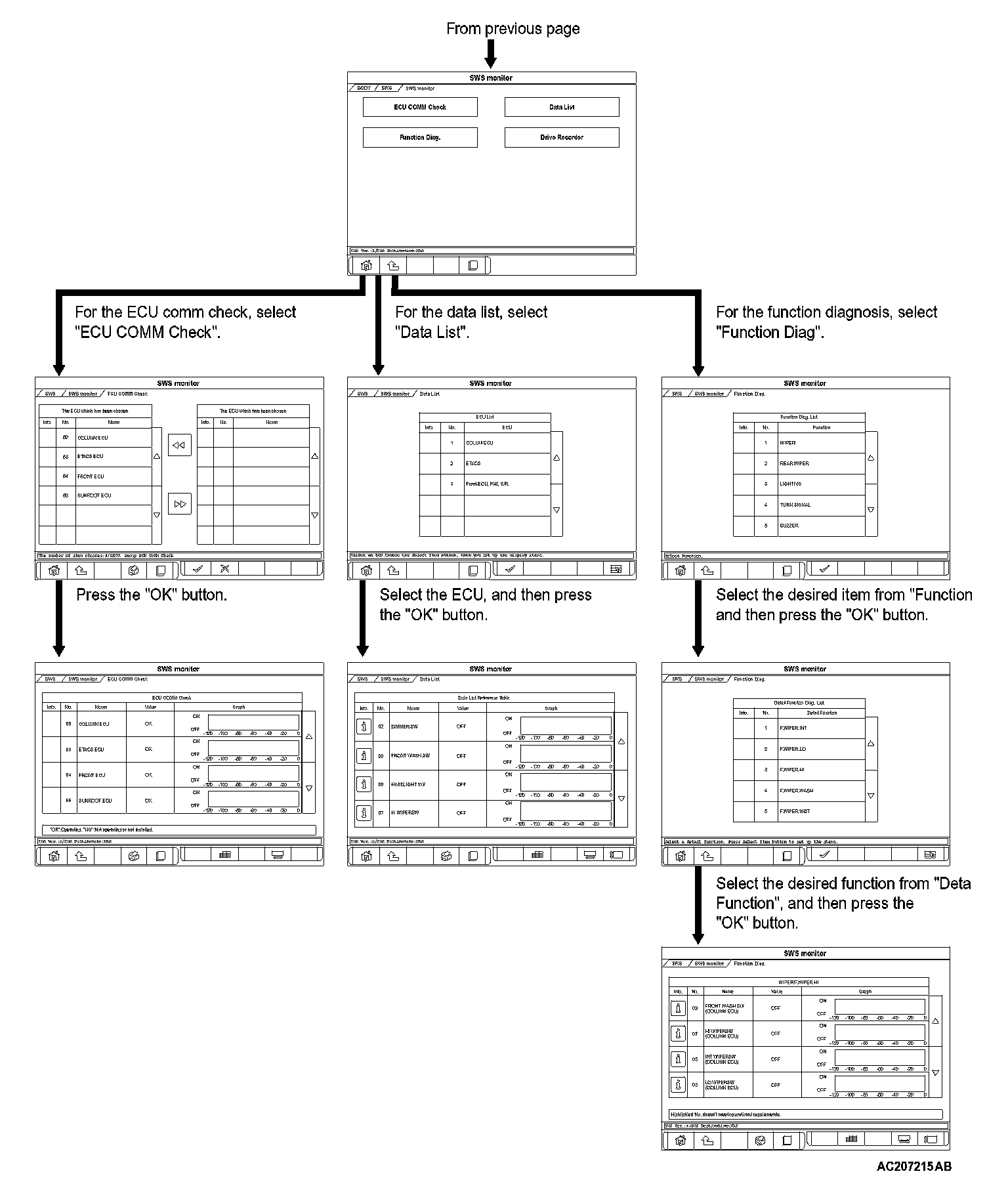

HOW TO USE SWS MONITOR







When scan tool MB991958 is used
To carry out troubleshooting, operate scan tool MB991958 (MUT-III Sub Assembly) as follows.
