EATCS-ECU

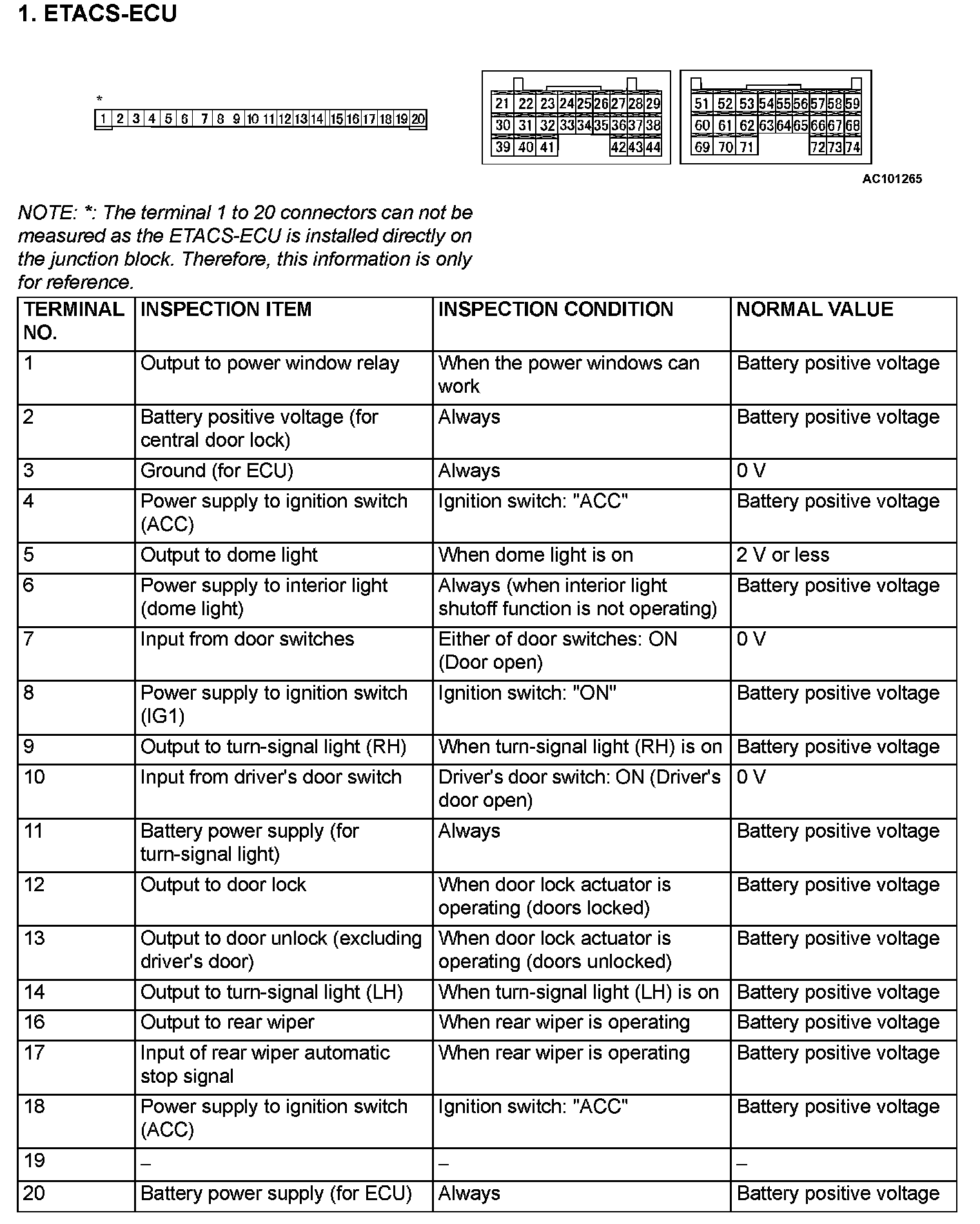

Check At ECU Terminal - Part 1:

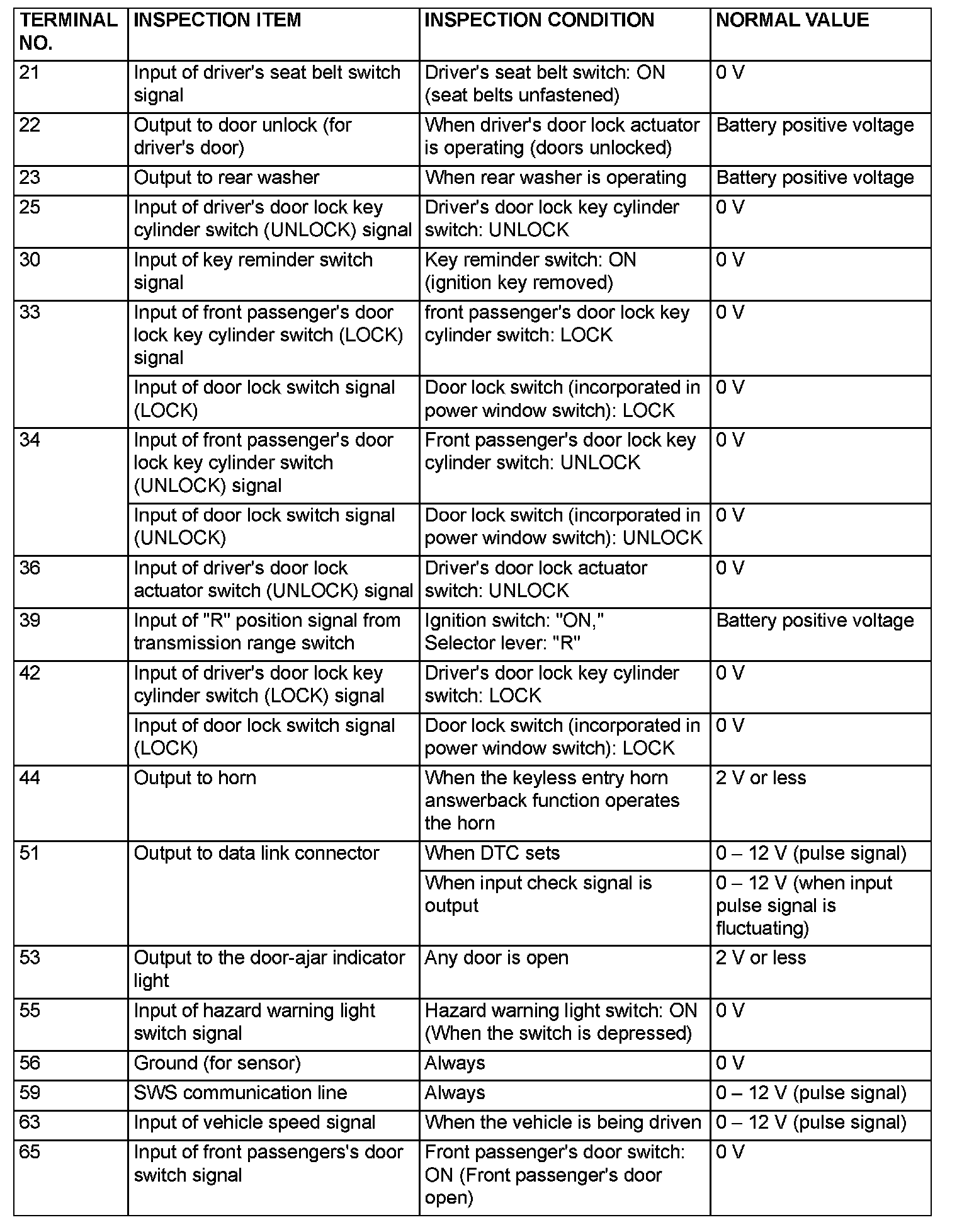

Check At ECU Terminal - Part 2:

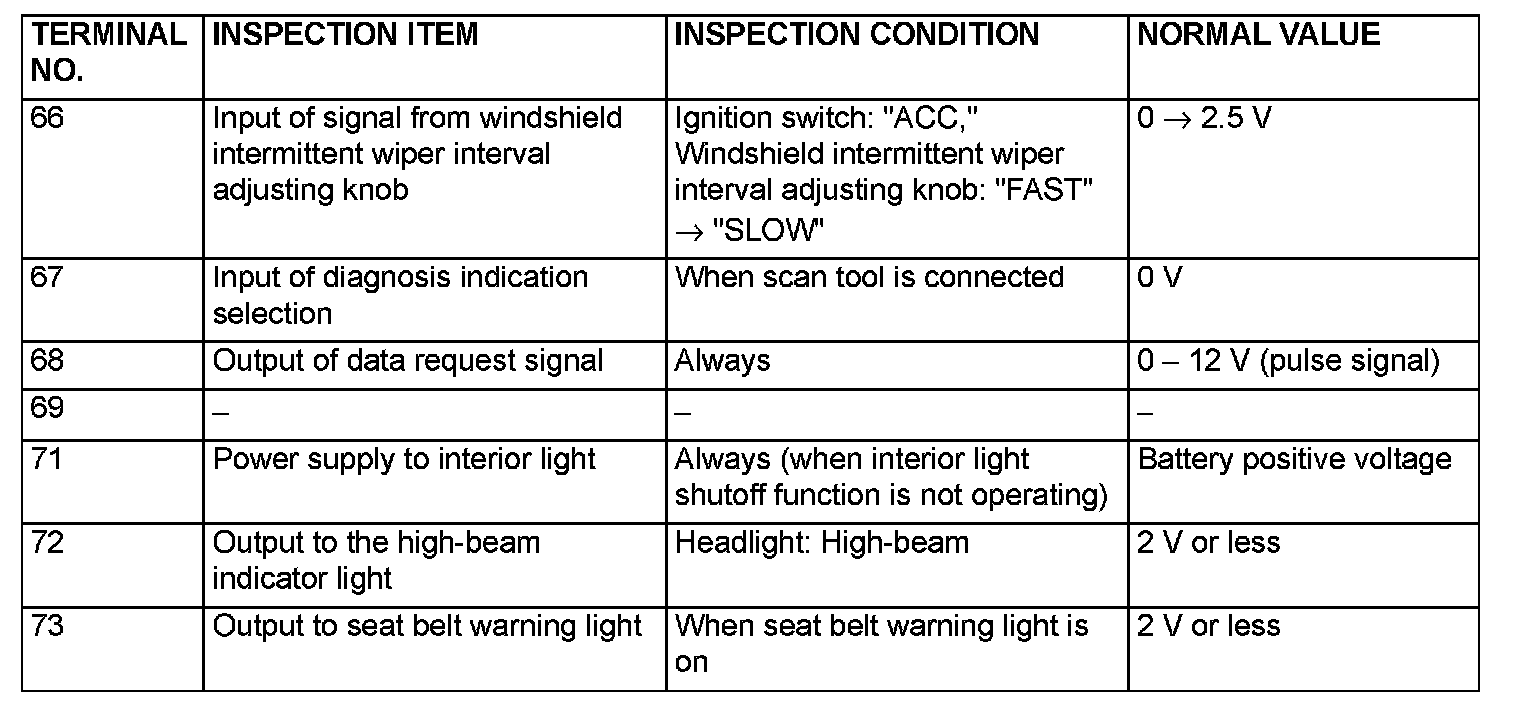

Check At ECU Terminal - Part 3:
