Heater Core: Service and Repair

HEATER UNIT, HEATER CORE, BLOWER ASSEMBLY AND EVAPORATOR UNIT

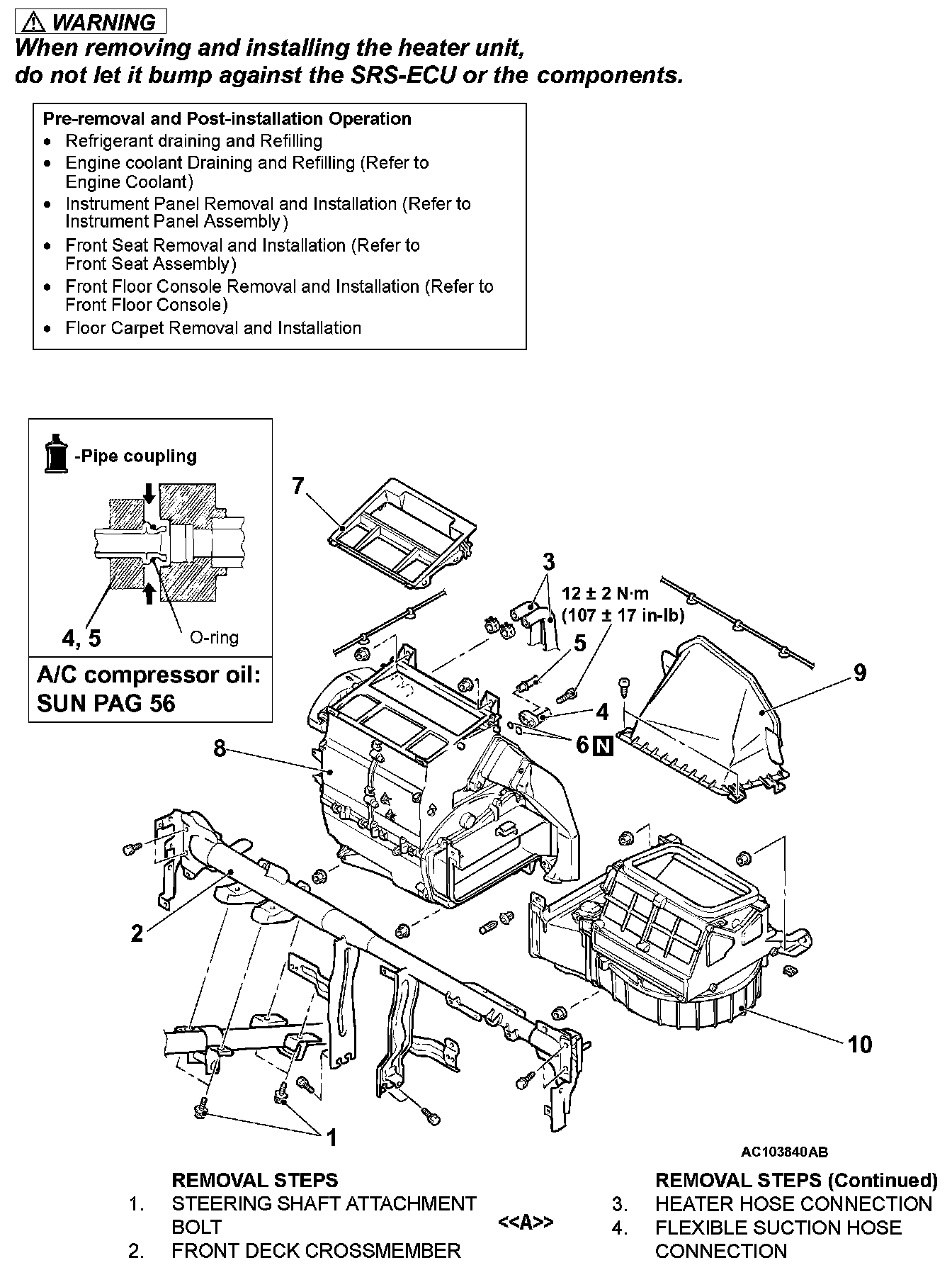

HEATER UNIT / Removal And Installation:

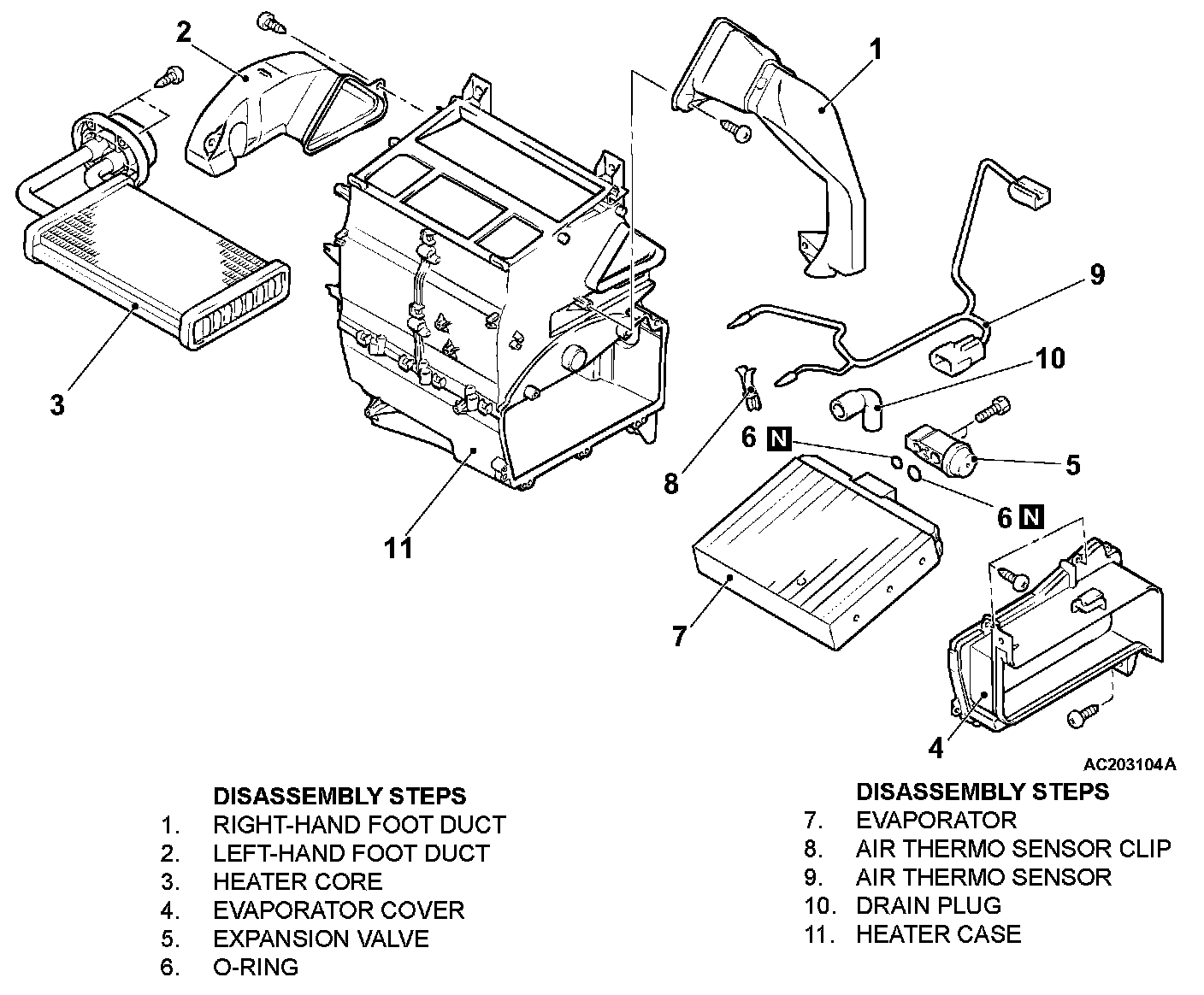

HEATER UNIT / Disassembly And Assembly:

REMOVAL SERVICE POINT
<> FLEXIBLE SUCTION HOSE AND LIQUID PIPE B DISCONNECTION

CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to hose and nipples.

To prevent the entry of dust or other foreign bodies, plug the dismantled hose and the nipples of the expansion valves.
