Magnetic Clutch Operation Check

Compressor Magnetic Clutch Operation Check

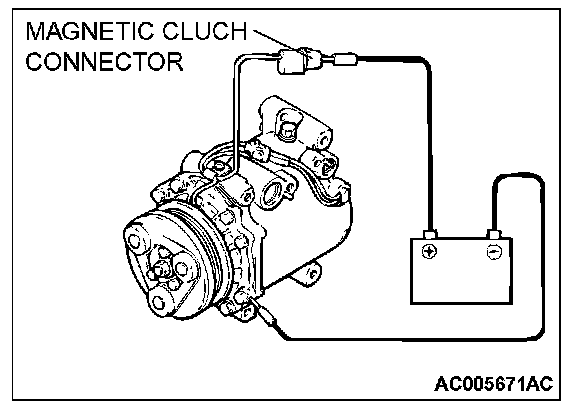

Connect the compressor connector terminal to the battery positive (+) terminal and ground the battery's negative (-) terminal to the compressor unit. At that time, the magnetic clutch should make a definite operating sound.
