Home >> Mitsubishi >> 2004 >> Lancer L4-2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram >> Overhaul (Engine Overhaul) >> Intake and Exhaust Manifolds

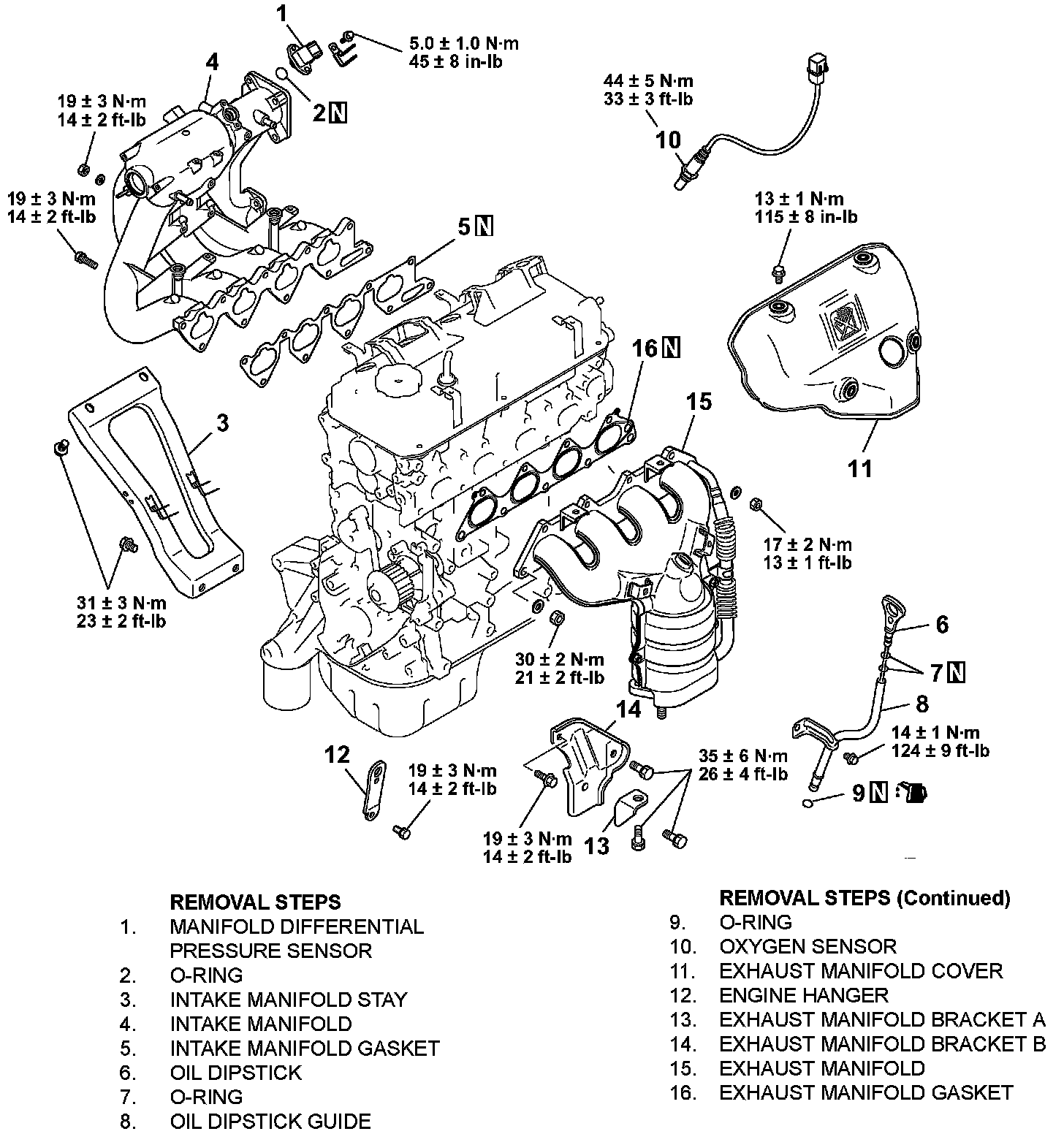

Intake and Exhaust Manifolds





INTAKE AND EXHAUST MANIFOLDS REPLACEMENT W/ RELATED COMPONENTS
