Auto-Cruise Control Check

AUTO-CRUISE CONTROL SYSTEM COMPONENT CHECK







AUTO-CRUISE CONTROL CHECK

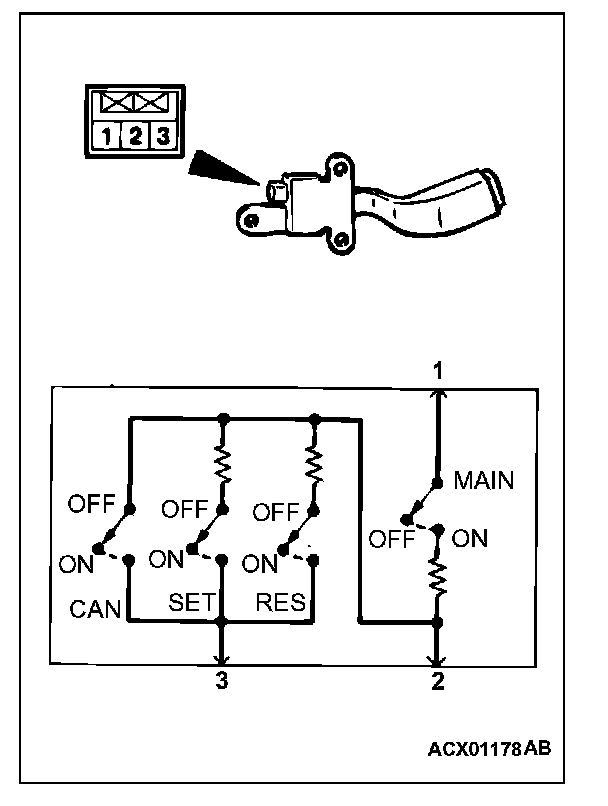

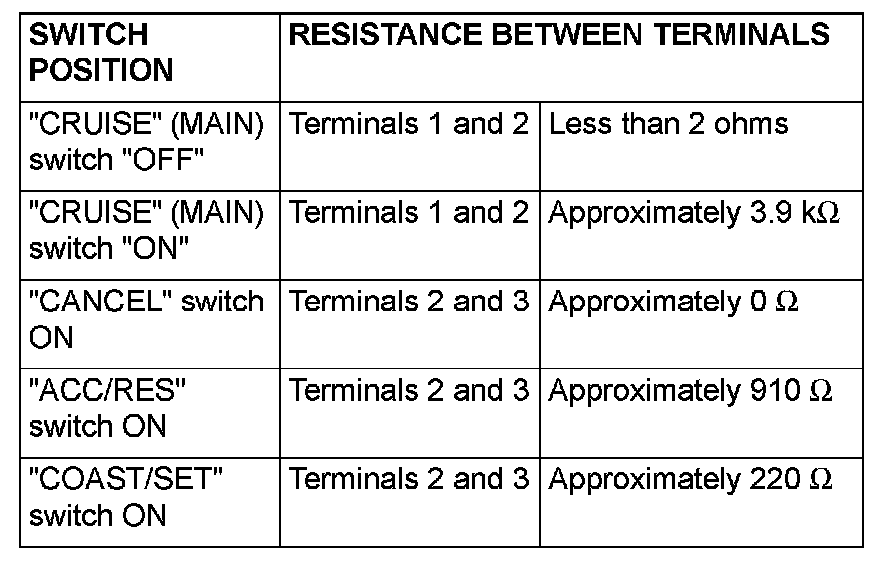

Measure the resistance between the terminals when each of the "COAST/SET", "ACC/RES", "CANCEL" and "CRUISE" (MAIN) switches is pressed. If the values measured at the time correspond to those in the table, the resistance values are correct.
