Clearing Diagnostic Trouble Codes
ERASING DIAGNOSTIC TROUBLE CODESWHEN USING SCAN TOOL MB991958
Required Special Tools:
^ MB991958: Scan Tool (MUT-III Sub Assembly)
^ MB991824: Vehicle Communication Interface (V.C.I.)
^ MB991827: MUT-III USB Cable
^ MB991911: MUT-III Main Harness B (Vehicles without CAN communication system)
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
NOTE: If the battery voltage is low, diagnostic trouble codes will not be set. Check the battery if scan tool MB99 1958 does not display.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System select."
5. Choose "ABS" from the "CHASSIS" tab.
6. Select "MITSUBISHI."
7. Select "Diagnostic Trouble Code."
8. If a DTC is set, it is shown.
9. Choose "DTC erase" to erase the DTC.
WHEN NOT USING SCAN TOOL MB991958
Required Special Tool:
^ MB991529: Diagnostic Trouble Code Check Harness
NOTE: If the ABS-ECU functions have stopped due to the fail-safe function, the diagnostic trouble code cannot be erased.
1. Turn the ignition switch to the "LOCK" (OFF) position.

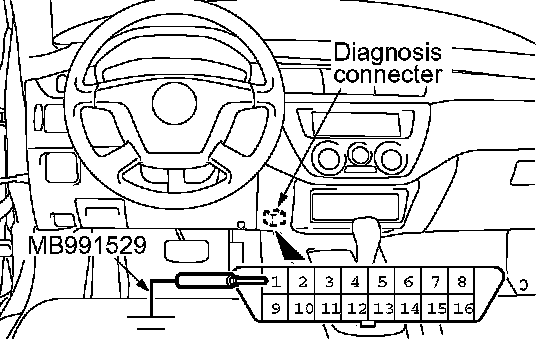

2. Use special tool MB991529 to earth terminal number 1 of the data link connector.

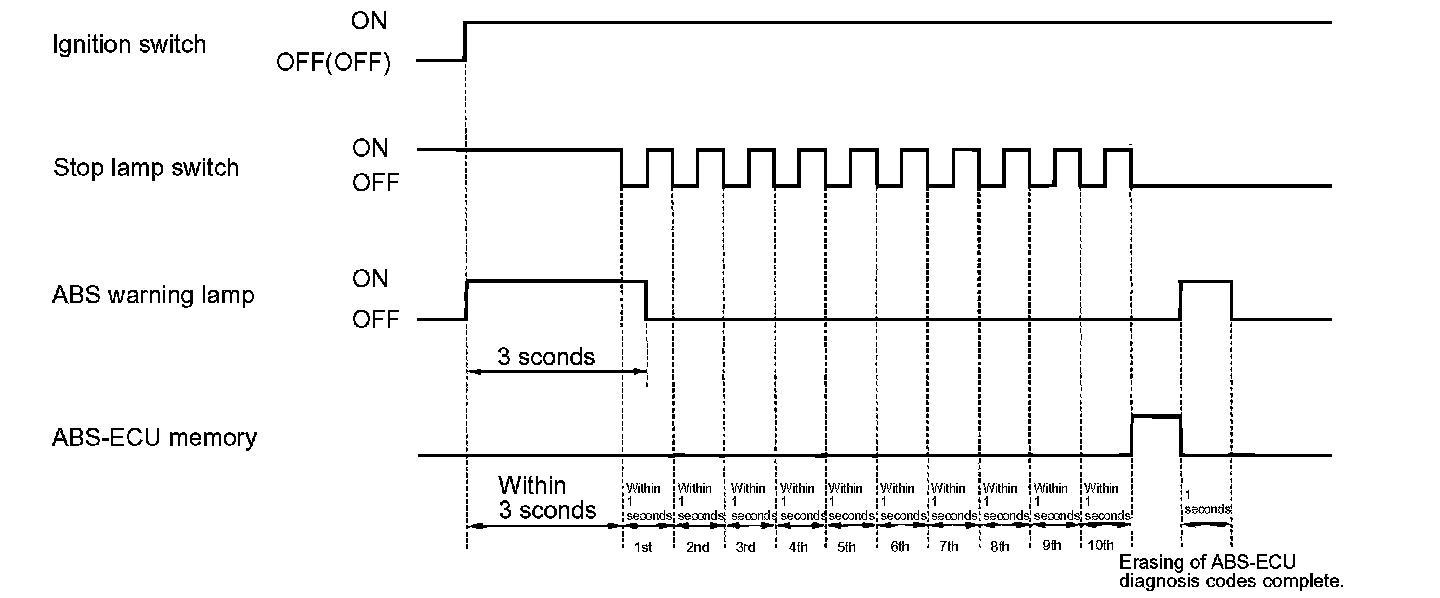

3. Depress the brake pedal and hold it.
4. Turn the ignition switch to the "ON" position.
5. After turning the ignition switch to the "ON", release the pedal within three seconds. Repeat this process of pressing and releasing the brake pedal 10 continuous times.
6. Turn the ignition switch to the "LOCK" (OFF) position.
7. Disconnect special tool MB991529.
