Interior Moulding / Trim: Service and Repair

TRIMS

REMOVAL AND INSTALLATION

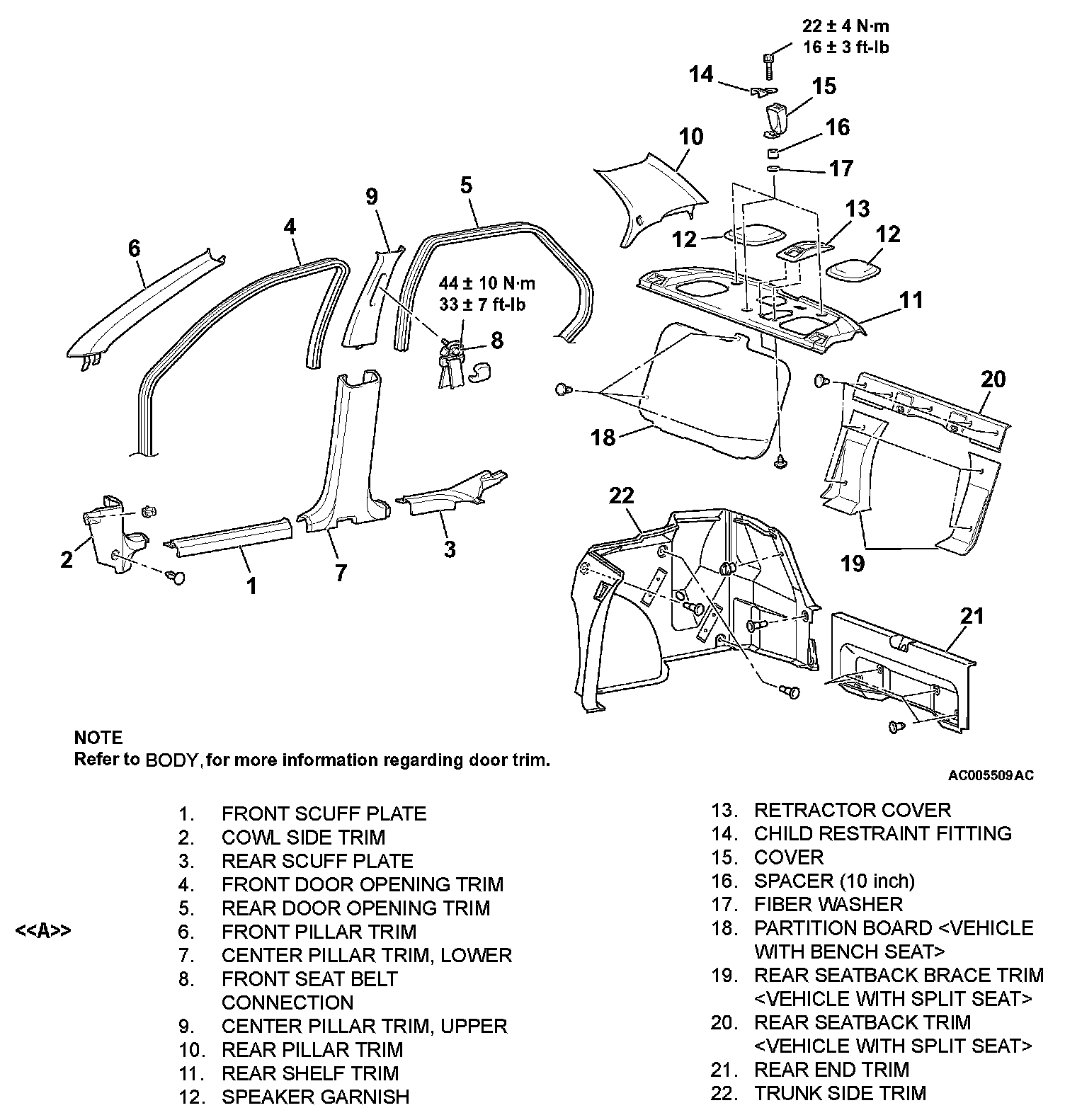

Removal Steps 1-22:

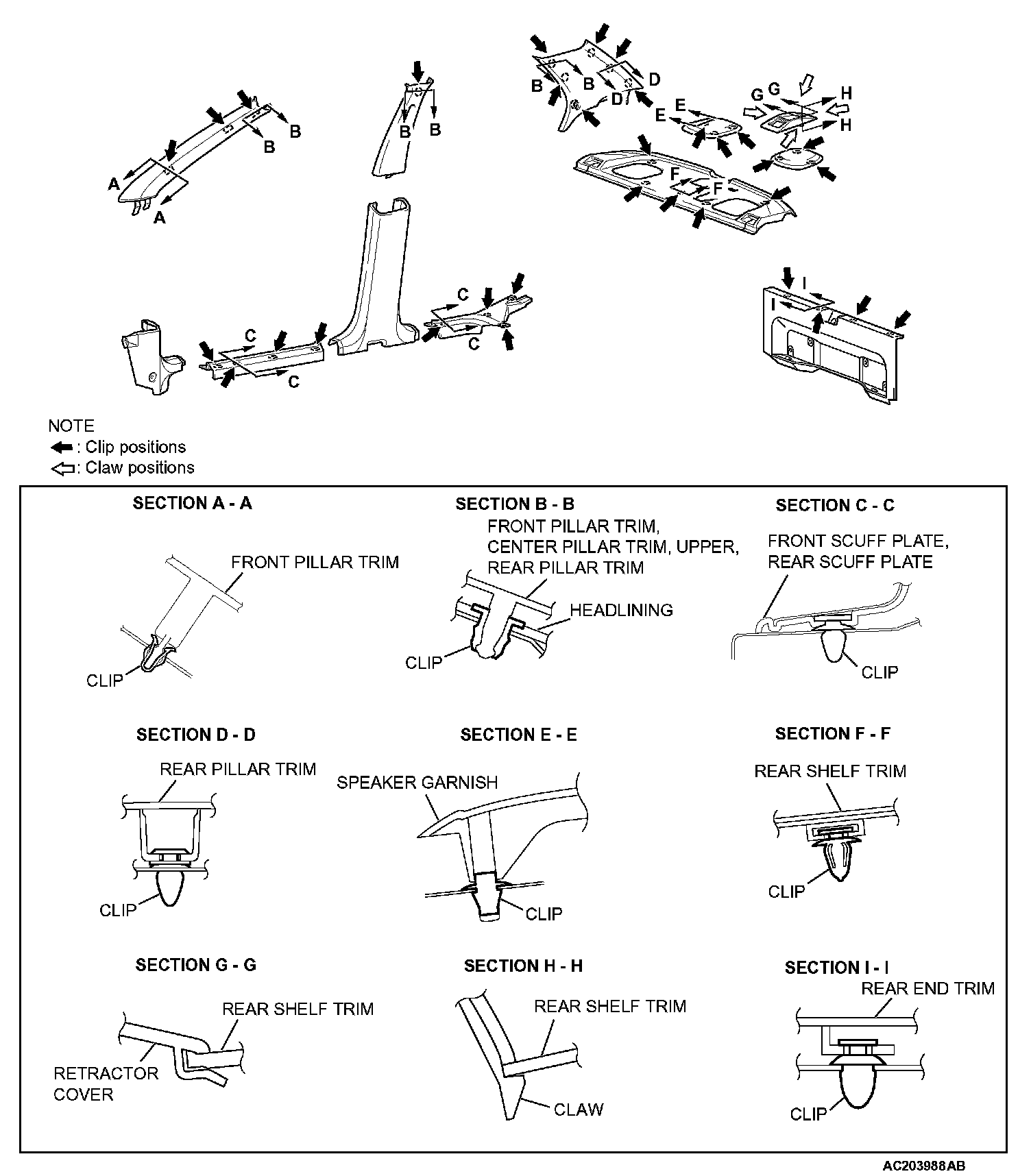

Clip Position:

REMOVAL SERVICE POINT

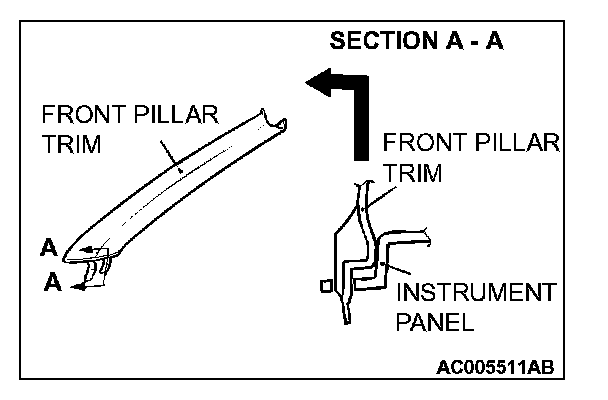

[[A]] FRONT PILLAR TRIM REMOVAL






Release the clip to pull towards the direction shown in the illustration and remove the front pillar trim.
