P0401
DTC P0401: Exhaust Gas Recirculation Flow Insufficient DetectedTECHNICAL DESCRIPTION
- When the EGR vacuum regulator solenoid valve switches from "OFF" to "ON" while the engine is running, EGR gas flows.
- The ECM
DESCRIPTIONS OF MONITOR METHODS
- The changes in the intake manifold pressure is monitored while the EGR valve opens and closes, and if the changes are small, the EGR flow rate is determined to be insufficient.
MONITOR EXECUTION
- Continuous
MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- EGR vacuum regulator solenoid valve monitor
Sensor (The sensor below is determined to be normal)
- Volume airflow sensor
- Barometric pressure sensor
- Intake air temperature sensor
- Engine coolant temperature sensor
- Throttle position sensor
- Manifold differential pressure sensor
DTC SET CONDITIONS

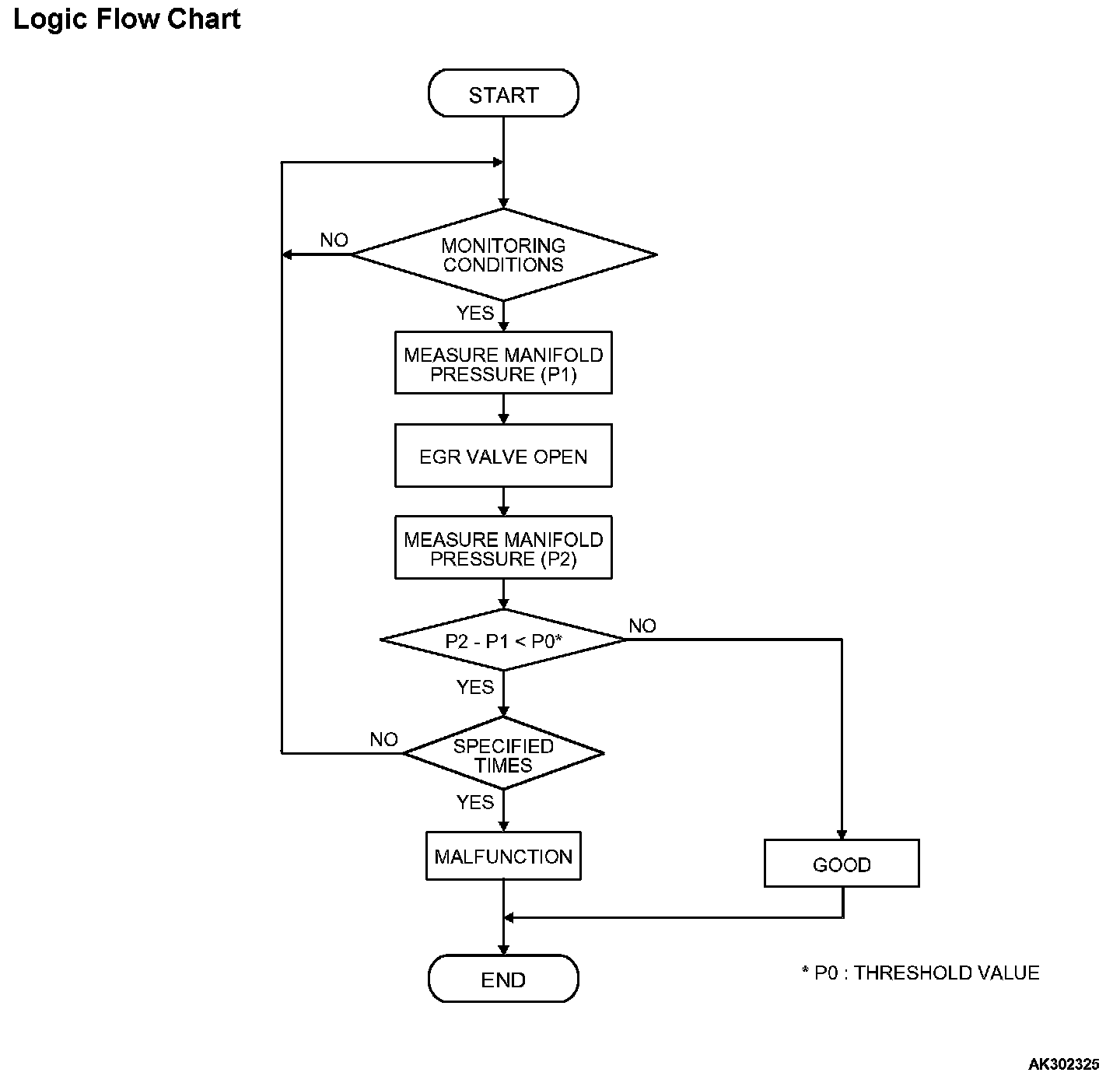

Logic Flow Chart:
Logic Flowchart
Check Conditions
- At least 20 seconds have passed since the last monitor was complete.
- Engine coolant temperature is higher than 76 °C (169 °F).
- Engine speed is at between 1,000 and 1,800
- Intake air temperature is higher than -10 °C (14 °F).
- Barometric pressure is higher than 76 kPa (22.4 in.Hg).
- Vehicle speed is 1.5 km/h (0.9 mph)
- At least 90 seconds have passed since manifold absolute pressure sensor output voltage fluctuated 1.5 volts or more.
- The throttle valve is closed.
- Volumetric efficiency is lower than 15
- While fuel is being shut off.
- The ECM
Judgement Criteria
- The intake manifold pressure fluctuation width is lower than 3.5 kPa (0.50 psi). When the EGR vacuum regulator solenoid valve is turned ON.
OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function - OBD-II Drive Cycle - Procedure 5 - Exhaust Gas Recirculation (EGR) System Monitor. OBD-II Drive Cycle Pattern Lists
TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- EGR valve does not open.
- EGR control vacuum is too low.
- EGR vacuum regulator solenoid valve failed.
- Open or shorted EGR vacuum regulator solenoid valve circuit, or connector damage.
- Manifold differential pressure sensor failed.
- ECM failed.
- PCM failed.
DIAGNOSIS
Required Special Tools:
- MB991958: Scan Tool (MUT-II Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991911: Main Harness B
STEP 1. Check the EGR system.
Refer to Emission Control System - Exhaust Gas Recirculation (EGR) System - EGR System Check. Exhaust Gas Recirculation System Check
Q: Are there any abnormalities?
YES: Go to Step 2.
NO: Repair it. Then go to Step 3.
STEP 2. Using scan tool MB991958, check data list item 95: Manifold Absolute Pressure Sensor.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

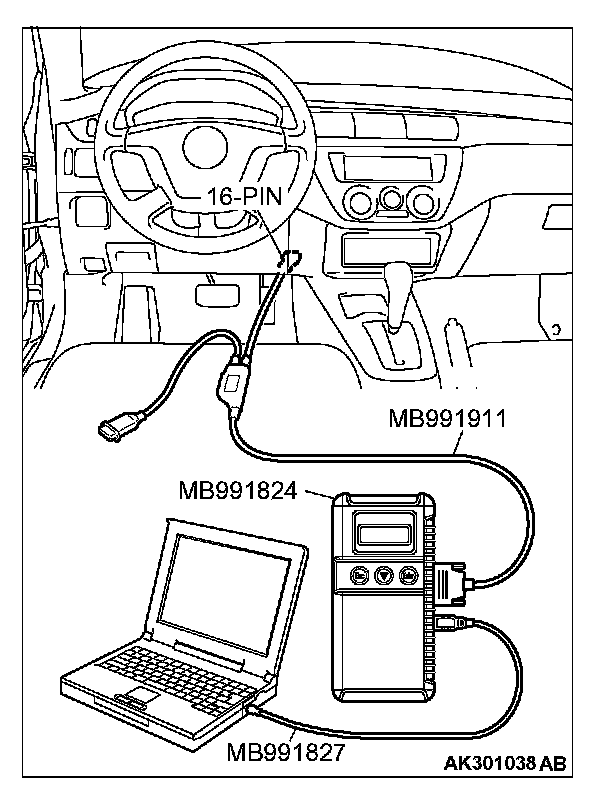

1. Connect scan tool MB991958 to the data link connector.
2. Start the engine and run at idle.
3. Set scan tool MB991958 to the data reading mode for item 95, Manifold Absolute Pressure Sensor.
4. Warm up the engine to normal operating temperature: 80 °C to 95 °C (176 °F to 203 °F).
- Should be between 64 - 78 kPa (18.9 - 23.0 in.Hg) at engine idling.
5. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?
YES: Clean the EGR valve and EGR passage. Then go to Step 3.
NO: Refer to DTC P0106 - Manifold Absolute Pressure Sensor Circuit Range/Performance Problem, DTC P0107 - Manifold Absolute Pressure Sensor Circuit Low Input, DTC P0108-Manifold Absolute Pressure Sensor Circuit High Input.
STEP 3. Test the OBD-II drive cycle.
1. Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Procedure 5 - Exhaust Gas Recirculation (EGR) System Monitor. OBD-II Drive Cycle Pattern Lists
2. Check the diagnostic trouble code (DTC).
Q: Is DTC P0401 set?
YES: Retry the troubleshooting.
NO: The inspection is complete.
