Anti-Lock Braking System (ABS)

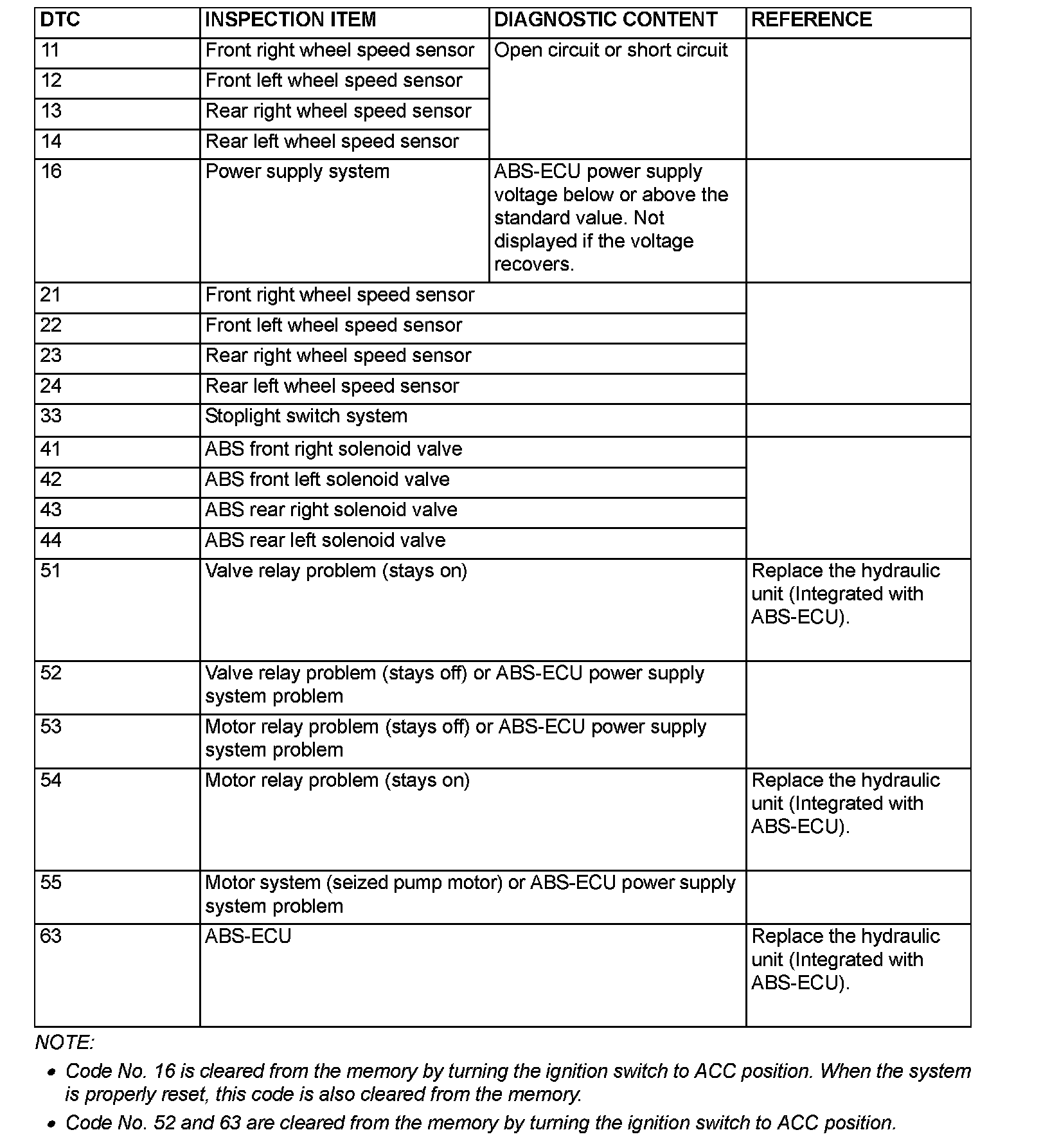

DIAGNOSTIC TROUBLE CODE CHART





Follow the inspection chart that is appropriate for the diagnostic trouble code.

NOTE:
^ Code No. 16 is cleared from the memory by turning the ignition switch to ACC position. When the system is properly reset, this code is also cleared from the memory.
^ Code No. 52 and 63 are cleared from the memory by turning the ignition switch to ACC position.
