Rear Wiper and Washer

INSPECTION

REAR WIPER MOTOR CHECK






Inspect the rear wiper motor operation by removing the harness connector with the motor attached to the vehicle.

WIPER MOTOR OPERATION

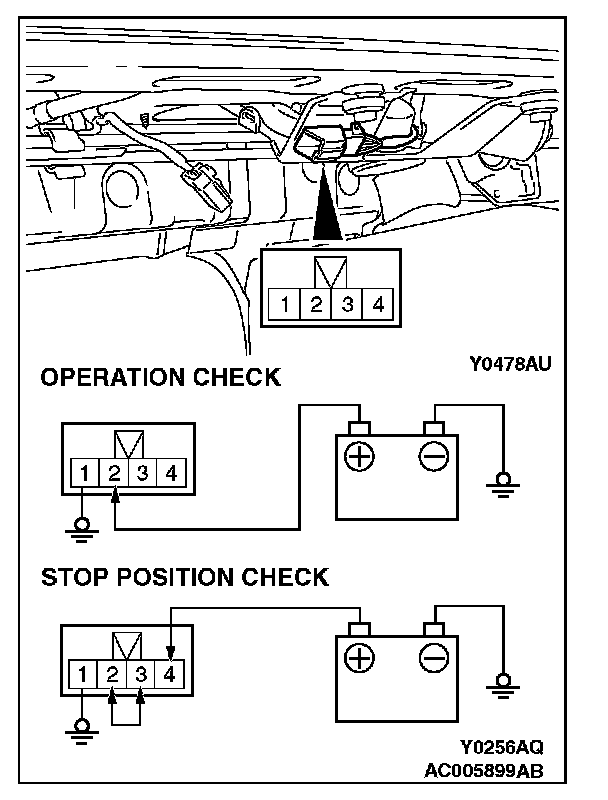

Connect the battery to the rear wiper motor as shown in the illustration and check the motor operation.

WIPER MOTOR AT STOP POSITION OPERATION
1. Run the wiper motor disconnect the battery and stop the motor.
2. Reconnect the battery as shown in the illustration and confirm that after the motor starts turning it stops at the automatic stop position.

REAR WASHER MOTOR CHECK

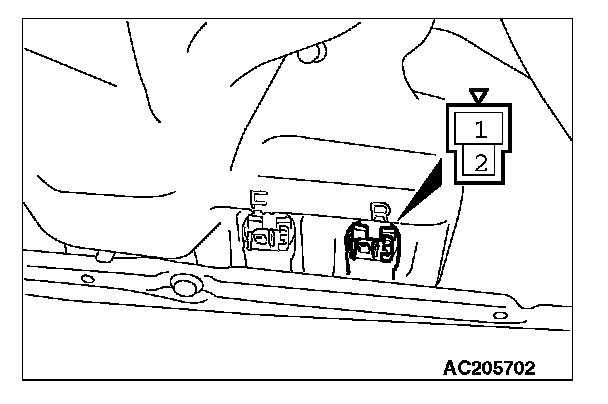

1. Remove the rear washer tank assembly with the washer hose attached. Then fill the washer tank with water.
2. Check to see that the water is vigorously sprayed when connecting the positive battery terminal to terminal number 2 and terminal number 1 to the negative battery terminal.

REAR WASHER FLUID EJECTION CHECK

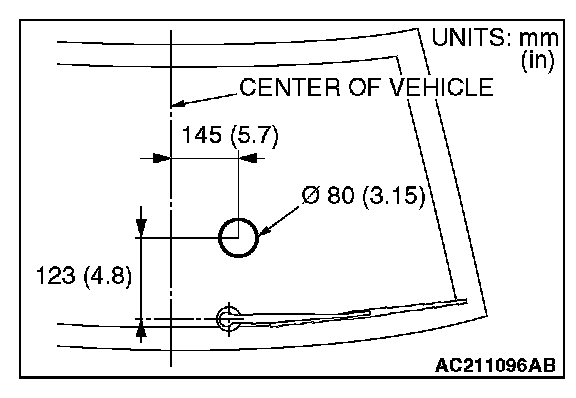

Move the nozzle to adjust the position so that the spray is in the area shown in the illustration.

REAR WIPER AND WASHER SWITCH CHECK

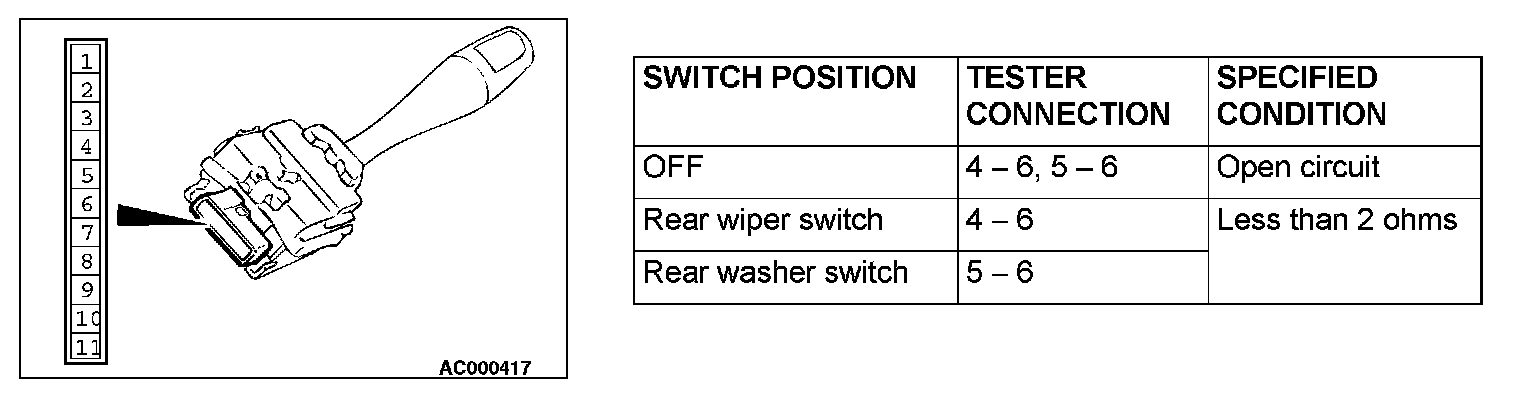

Check continuity between the switch terminals.
