Home >> Mitsubishi >> 2004 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Regulator >> Front Door Window Regulator >> Testing and Inspection

Front Door Window Regulator: Testing and Inspection

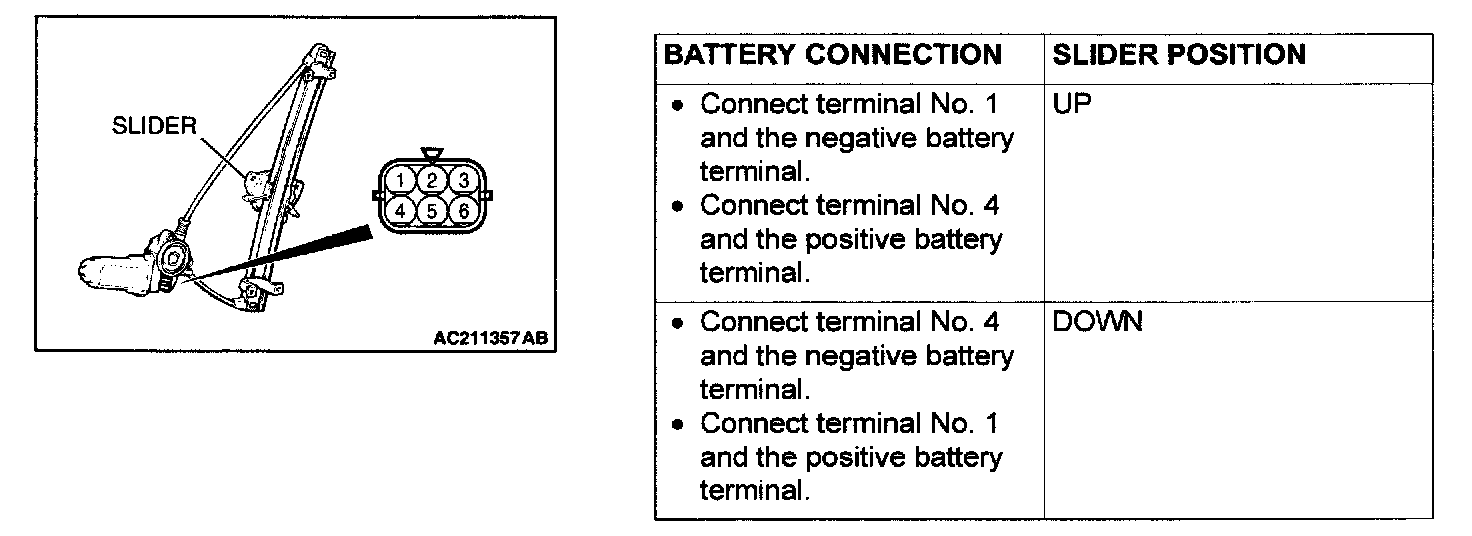

Power Window Regulator Motor Continuity Check:
