Removal and Replacement

Window Glass Runchannel and Door Opening Weather-Strip:

Window Glass Runchannel and Door Opening Weather-Strip:

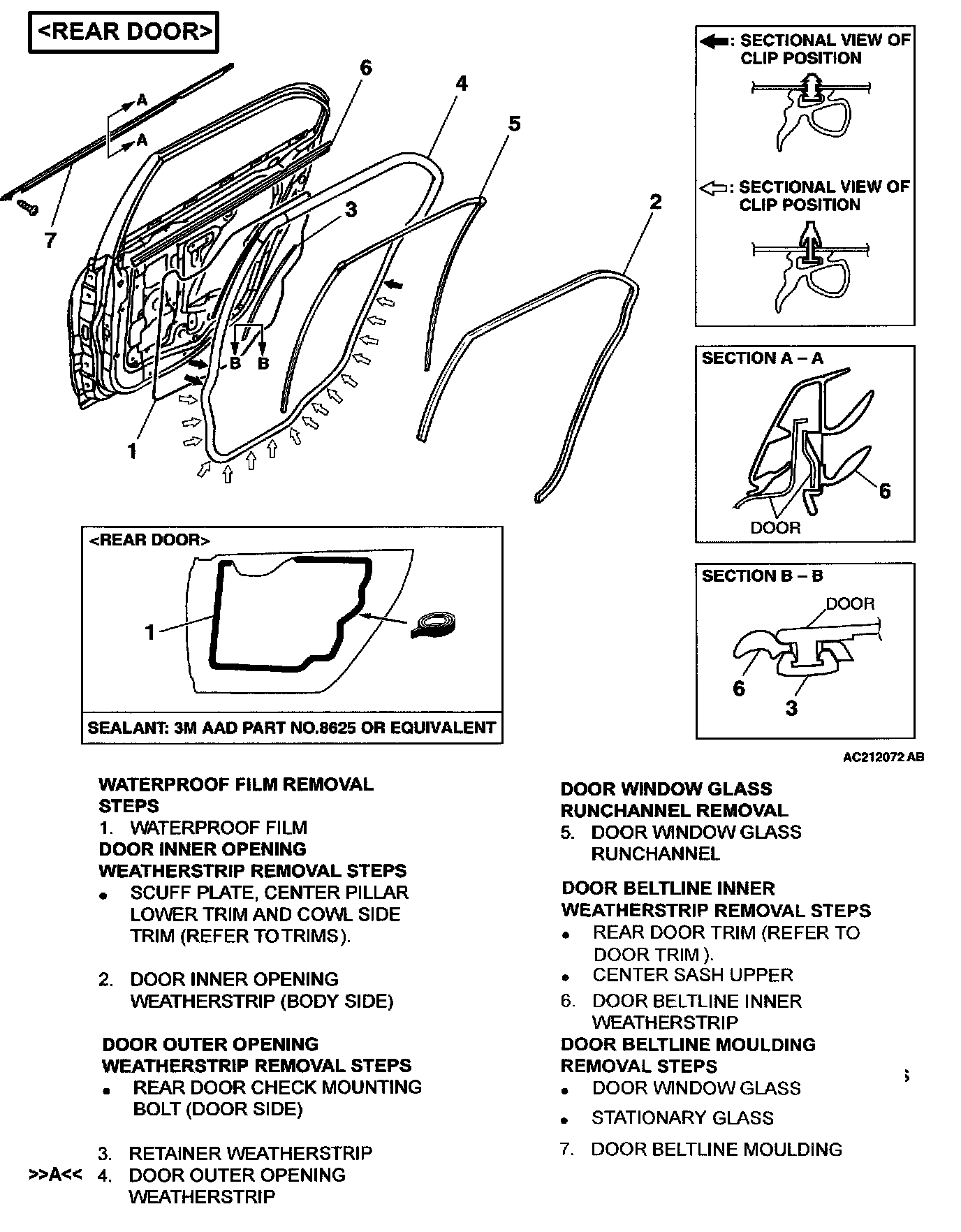

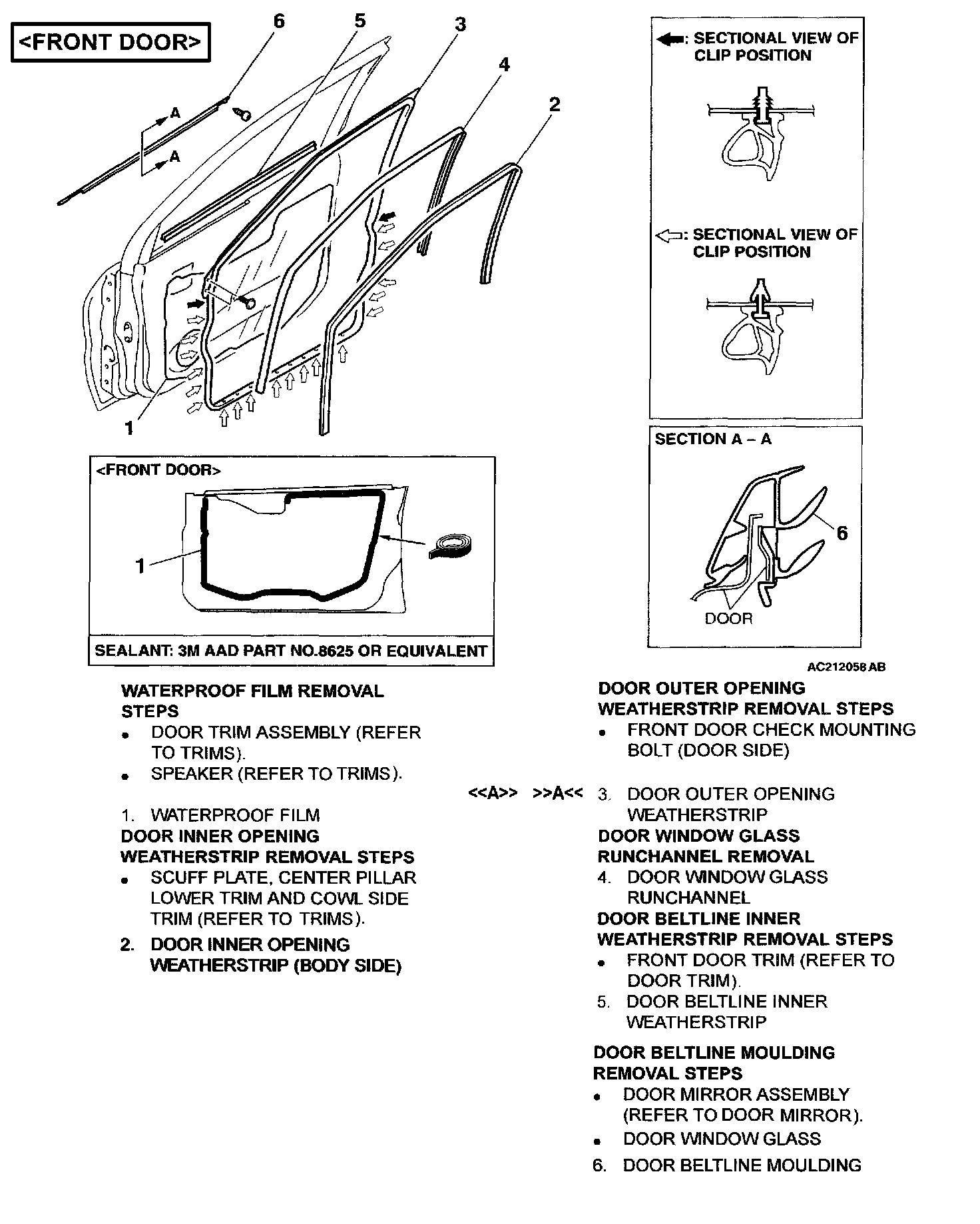

Window Glass Runchannel and Door Opening Weather-Strip

REMOVAL SERVICE POINT








[[A]] DOOR OUTER OPENING WEATHERSTRIP REMOVAL

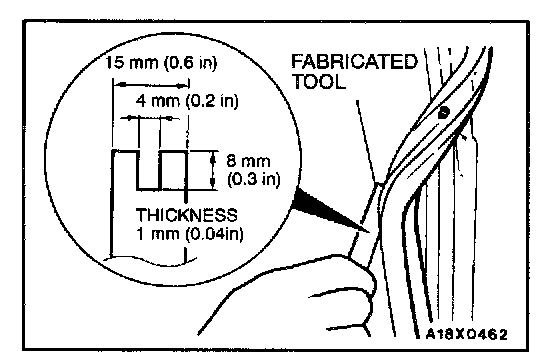

Make a fabricated tool as shown in the illustration to remove the door weatherstrip.

INSTALLATION SERVICE POINT







]]A[[ DOOR OUTER OPENING WEATHERSTRIP INSTALLATION
The clip color identifies the left and right weatherstrips, so be sure to use the colors for the correct door.


ITEM.....................................................SPECIFIED ADHESIVES
Rear Window Glass/Windshield...............................MT AAD Part No. 8609 Super Fast Urethane and 3 MT AAD Part No. 8608 Super Fast Urethane Primer or equivalent.
