Front Door Window Glass: Adjustments

DOOR WINDOW GLASS ADJUSTMENT
Check that the door glass moves white contacting the door glass channel when it is raised and lowered fully. If not, adjust the door window according to the following procedures.

1. Remove the door trim (Refer to Door trim).
2. Remove the waterproof film.

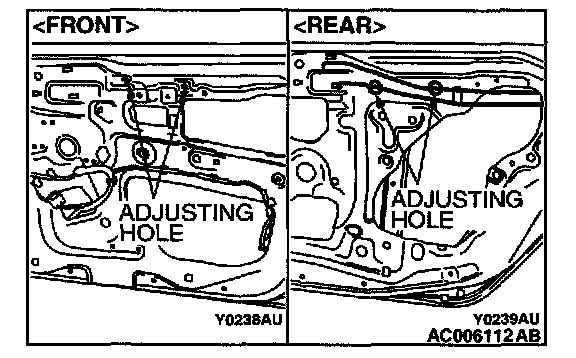

3. Loosen the door glass mounting screw via the adjusting hole with the door window glass fully closed, then lower the window glass a little.







4. Fully close the door window glass again and tighten the door glass mounting screw firmly via the adjusting hole.
