Transmission Case

DISASSEMBLY AND ASSEMBLY

ASSEMBLY SERVICE POINTS
>>A<< BUSHING INSTALLATION

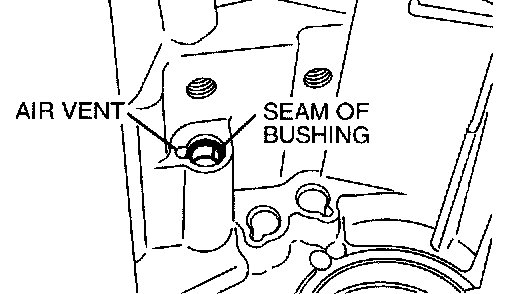

1. Press fit the bushing so the seam is away from the air vent.

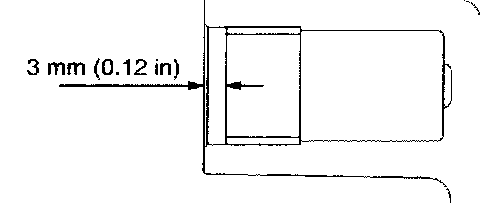

2. Be sure the bushing is fully seated as shown. It must be 3 mm (0.12 inch) belong the housing surface.

>>B<< NEEDLE BEARING INSTALLATION

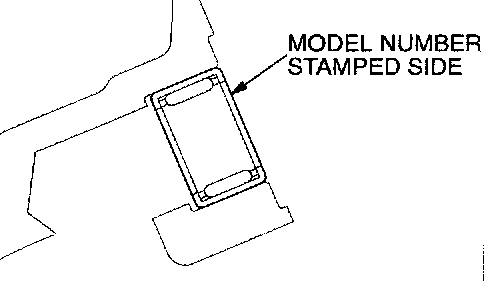

1. Check the installation direction of the needle bearing.
2. Press fit the needle bearing until it is flush with the case.

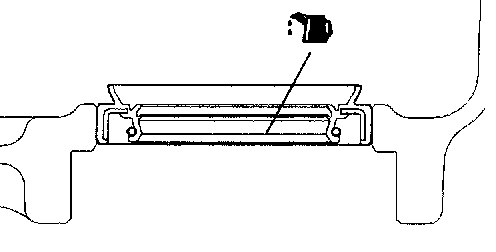

>>C<< OIL SEAL INSTALLATION





1. Apply gear oil (Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification GL-4).

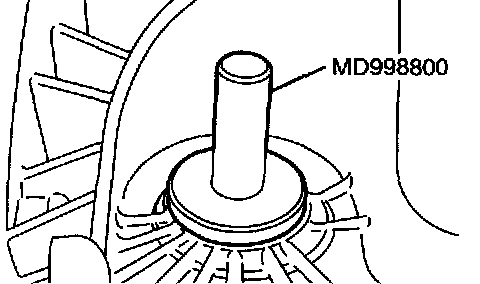

2. Using special tool MD998800, press fit the oil seal into the transaxle case.
