Clutch Housing
DISASSEMBLY AND ASSEMBLY
DISASSEMBLY SERVICE POINT

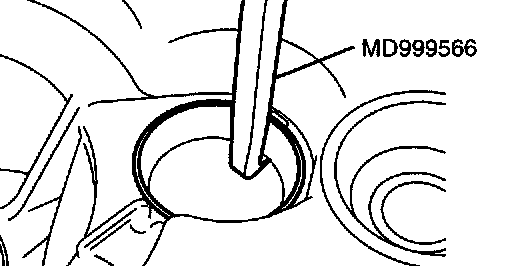

<> OUTER RACE REMOVAL
Using special tool MD999566, remove the outer race from the clutch housing.

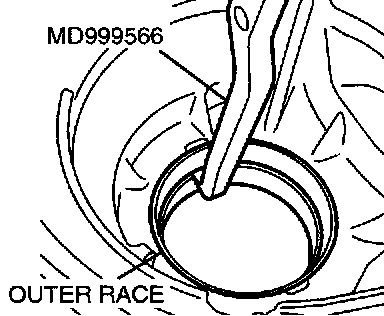

<> OUTER RACE REMOVAL
Using special tool MD999566, remove the outer race from the clutch housing.
ASSEMBLY SERVICE POINTS

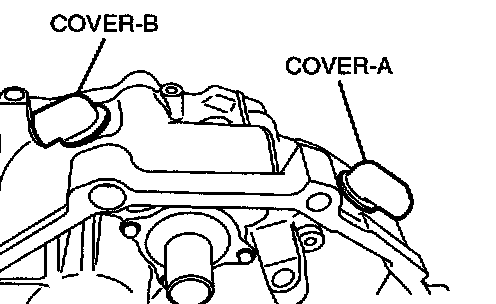

>>A<< COVER-B/COVER-A INSTALLATION
Install the covers directed as shown in the illustration.

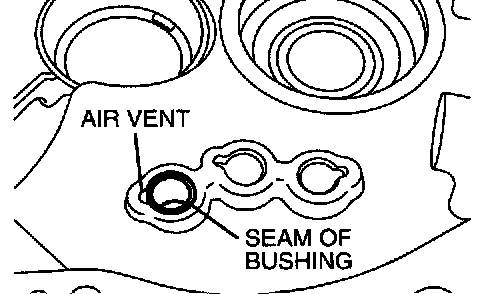

>>B<< BUSHING INSTALLATION
1. Press fit the bushing so the seam is away from the air vent.

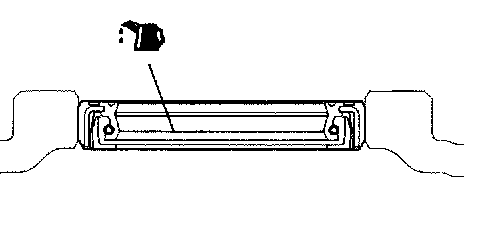

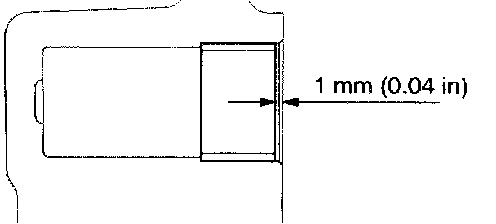

2. Be sure the bushing is fully seated as shown. It must be 1 mm (0.04 inch) below the housing surface.

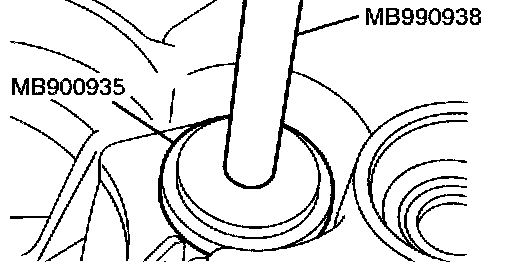

>>C<< OUTER RACE INSTALLATION
Using special tools MB990938 and MB990935, press fit the outer race into the clutch housing.

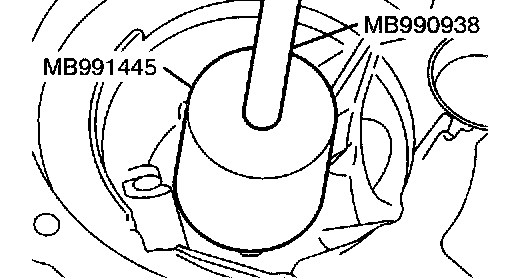

>>D<< OUTER RACE INSTALLATION
1. Check the installation direction of the outer race.
2. Using special tools MB990938 and MB991445, press fit the outer race into the clutch housing.

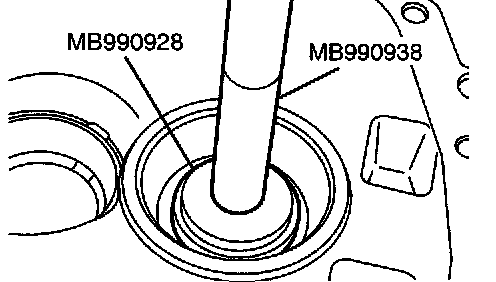

>>E<< OIL SEAL INSTALLATION
1. Apply transmission oil (Hypoid gear oil SAE 75W-90 or 75W85W conforming to API classification GL-4) to the oil seal lip.
2. Using special tools MB990938 and MB990928, press fit the oil seal into the clutch housing.
