General Description

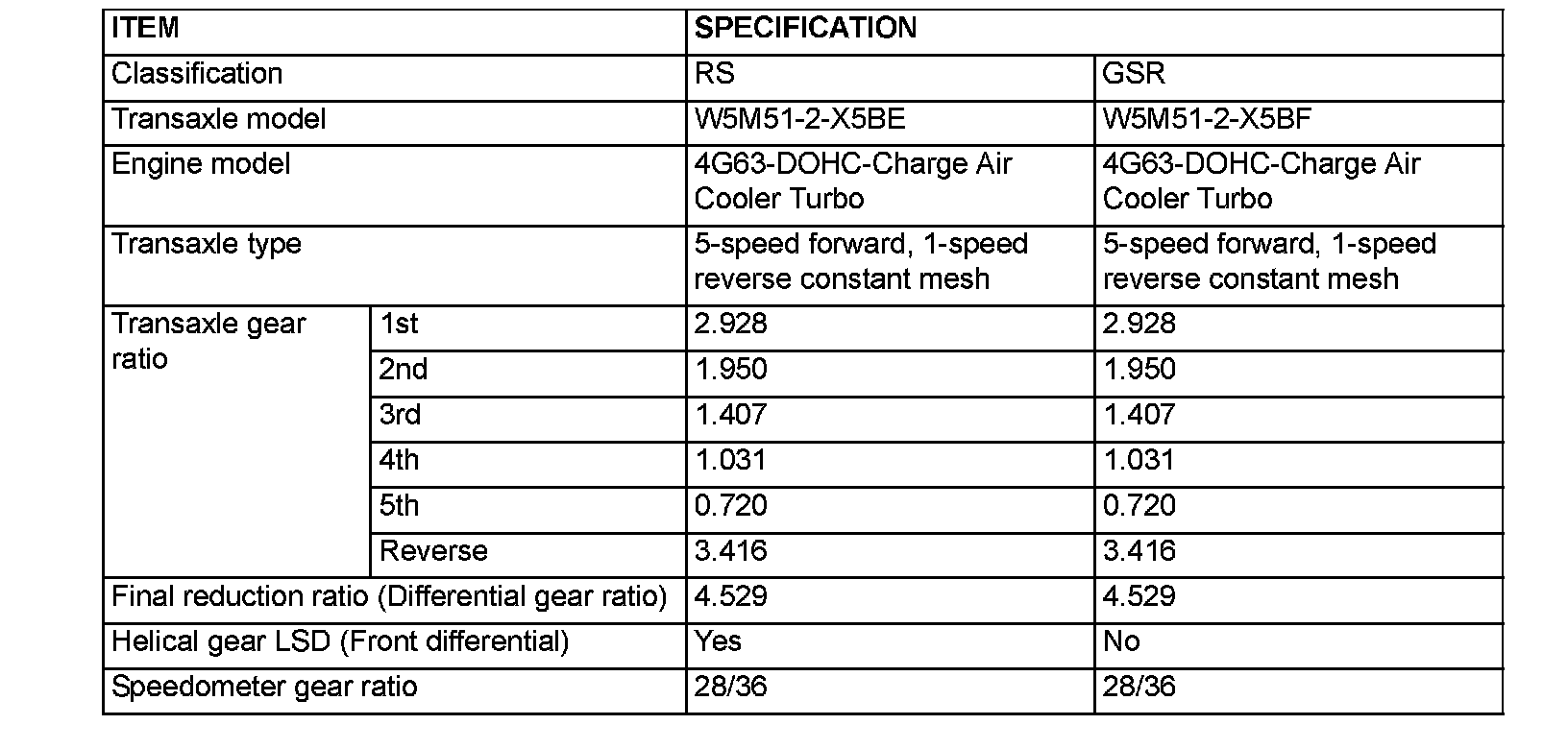

GENERAL DESCRIPTION

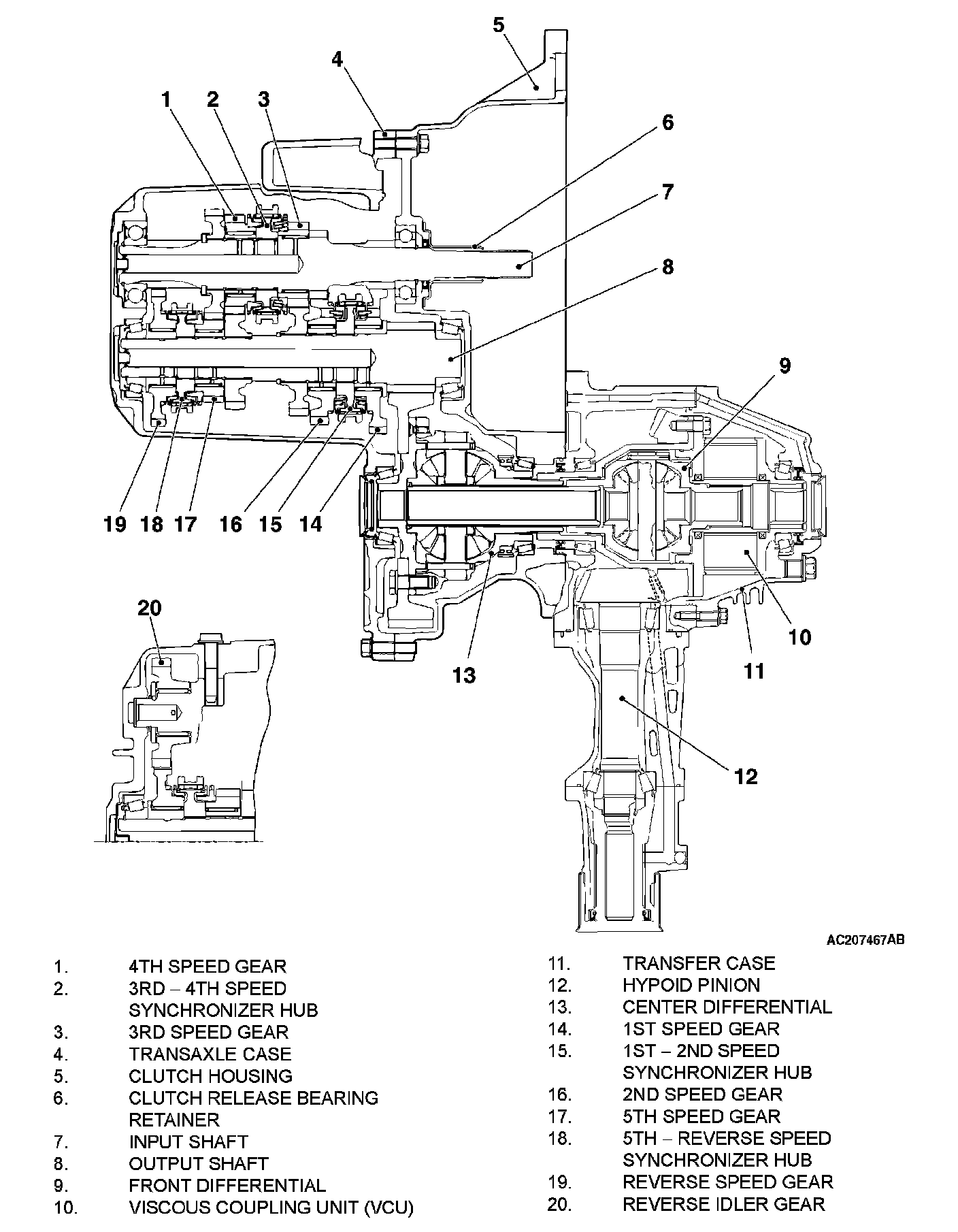

SECTIONAL VIEW (VEHICLES WITH HELICAL GEAR LSD)

SECTIONAL VIEW (VEHICLES WITHOUT HELICAL GEAR LSD)
