Manual Transmission/Transaxle: Application and ID

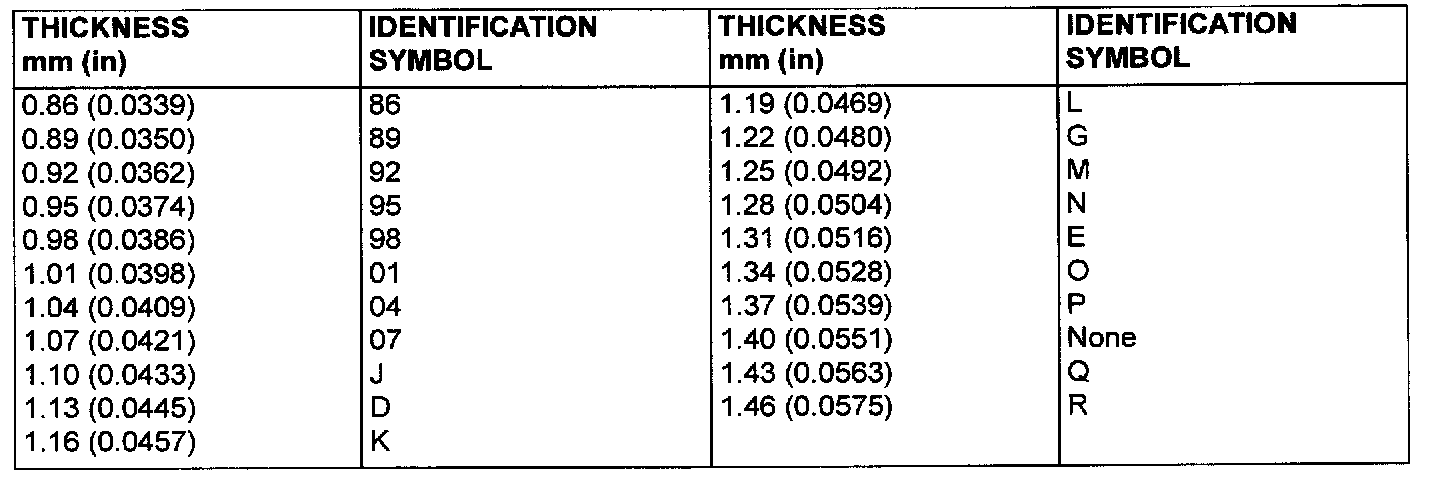

SNAP RINGS, SPACERS AND THRUST PLATE FOR ADJUSTMENT

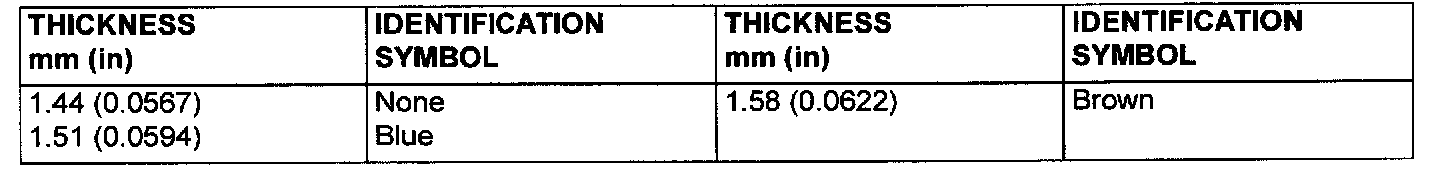

Spacer
(For adjustment of input shaft end play)

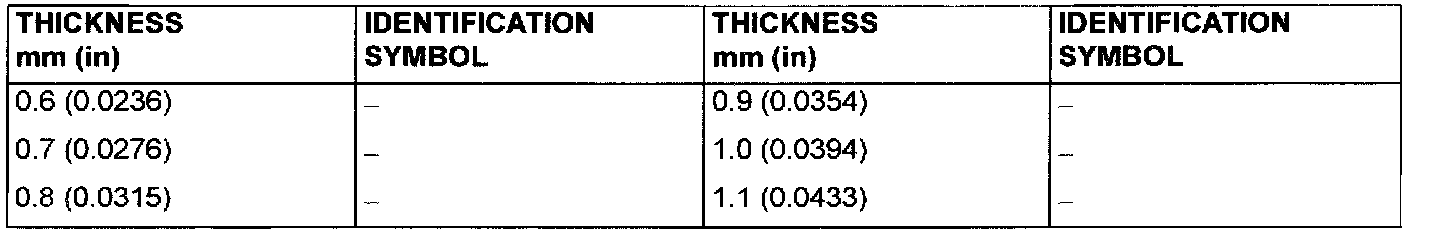

Snap ring
(For adjustment of input shaft front bearing end play)

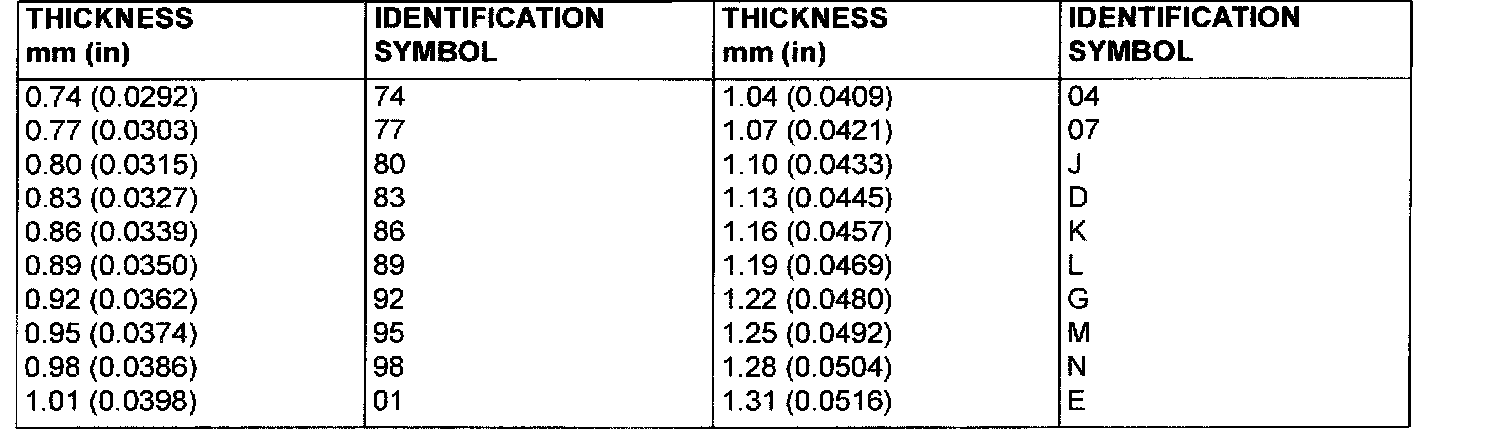

Snap ring
(For adjustment of input shaft rear bearing end play)

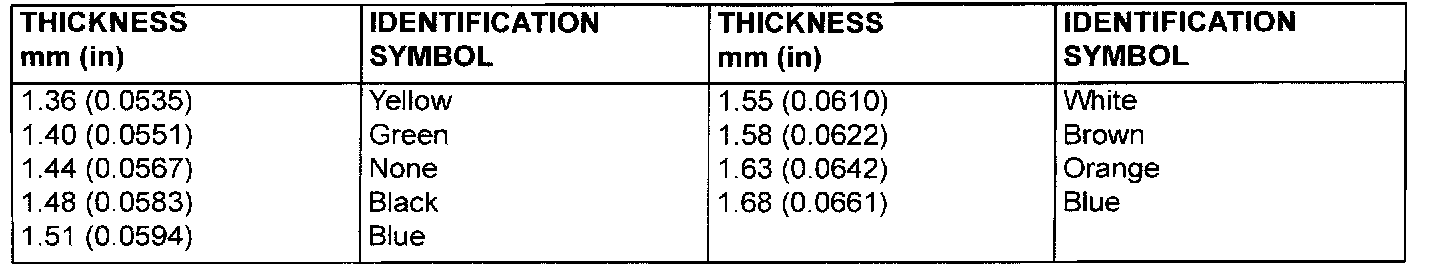

Thrust plate
(For adjustment of input shaft 5th speed gear end play)

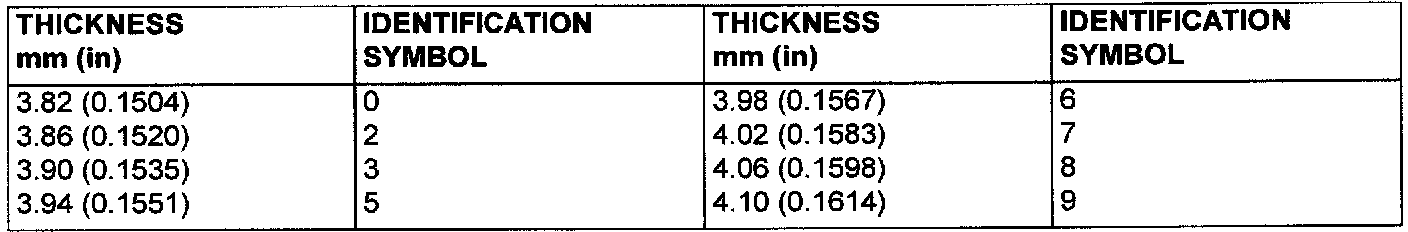

Spacer
(For adjustment of output shaft preload)

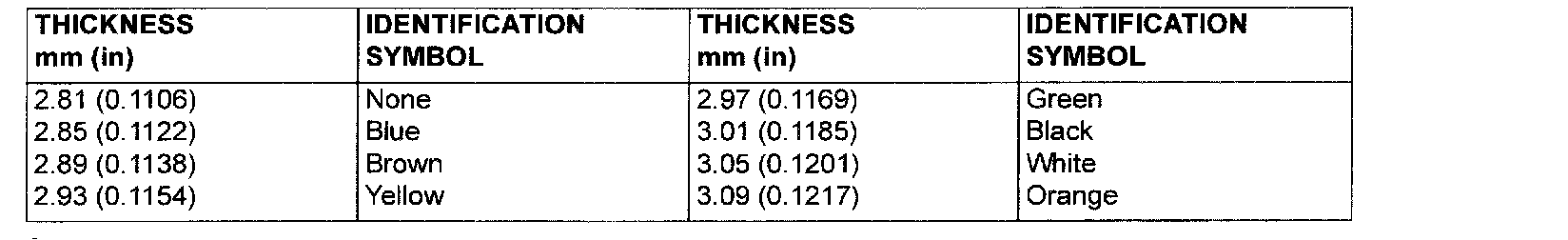

Snap ring
(For adjustment of output shaft rear bearing end play)

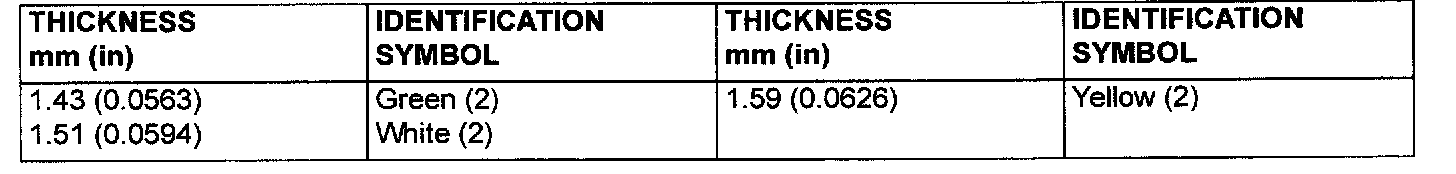

Snap ring
(For adjustment of output shaft 3rd speed gear end play)

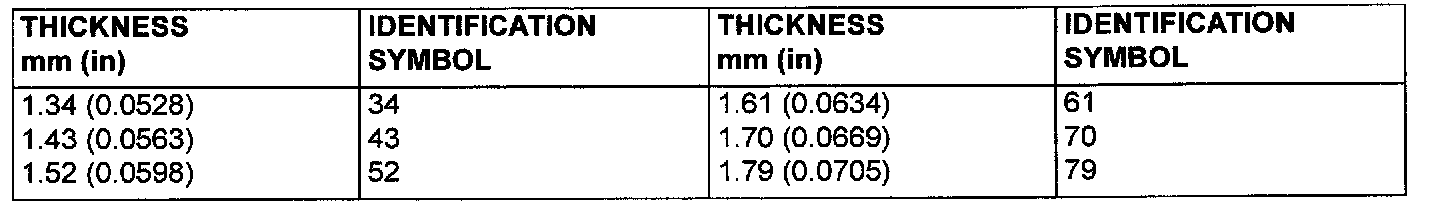

Spacer
(For adjustment of center differential case preload)
Spacer
(For adjustment of center differential case backlash)
