Drive/Propeller Shaft: Description and Operation

GENERAL DESCRIPTION
3 way split 4joint type propeller shaft with center bearing, with the following features is utilized:
^ The No. 3 joint incorporates LJ, which is light and compact.
^ An insulator is located at the center bearing to vehicle body joint, reducing vibration.
^ For environmental protection, a lead-free grease is used on LJ and center bearing.

NOTE:
^ LJ: Lobro Joint

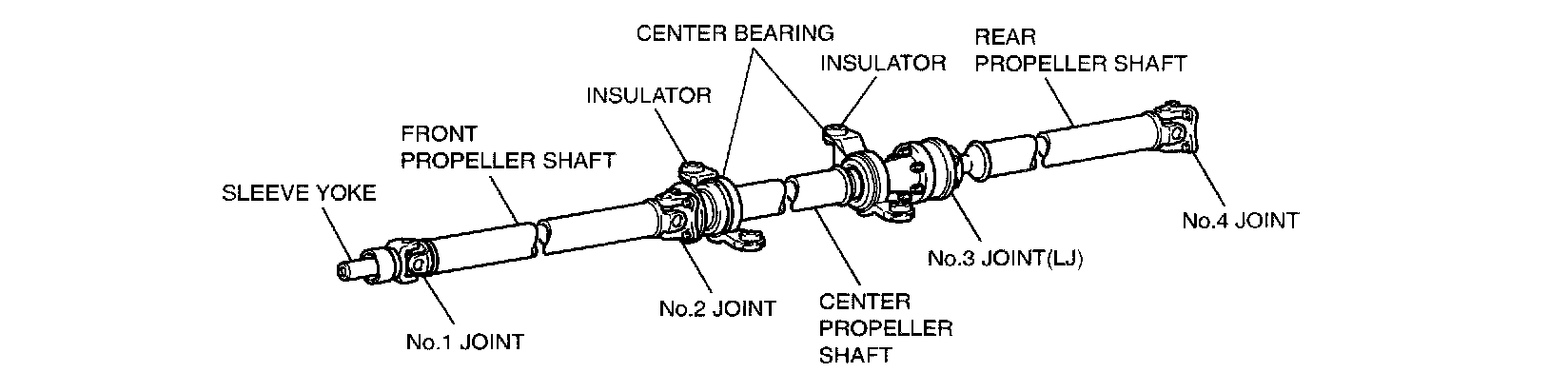

CONSTRUCTION DIAGRAM
