Battery - Load Test Rate Chart Revision
No.: TSB-05-54-001DATE: February, 2005
MODEL: See below
SUBJECT:
BATTERY LOAD TEST RATE CHART - SERVICE MANUAL REVISION
PURPOSE

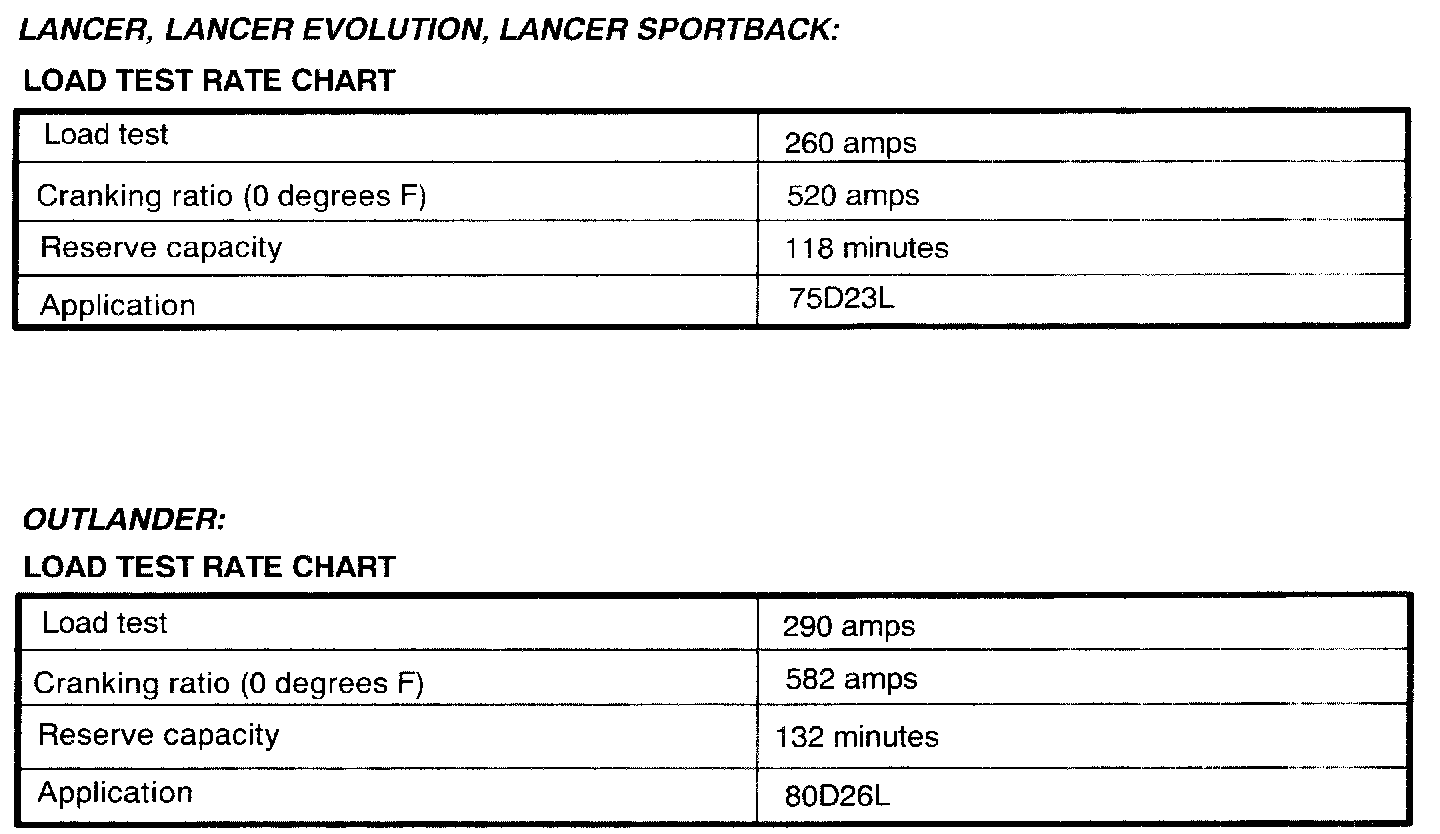

The battery load test rate charts in the affected service manual pages are incorrect. This bulletin contains the corrected battery load test charts as shown for the affected vehicles.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
2002-05 Lancer, 2003-05 Lancer Evolution, 2004-05 Lancer Sportback, 2004-05 Outlander
AFFECTED SERVICE MANUALS
2002 Lancer, Volume 3, page 54A-6
2003 Lancer, Volume 3, page 54A-6
2004 Lancer, Volume 3, page 54A-6
2005 Lancer, Volume 2, page 54A-6
2003 Lancer Evolution, Volume 3, page 54A-6
2004 Lancer Evolution, Volume 2, page 54A-6
2005 Lancer Evolution, Volume 2, page 54A-6
2004 Lancer Sportback, Volume 3, page 54A-6
2005 Lancer Sportback, Volume 3, page 54A-6
2004 Outlander, Volume 3, page 54A-7
2005 Outlander, Volume 2, page 54A-7
