Overhaul

DISASSEMBLY AND ASSEMBLY

WARNING:
^ Do not move the tilt lever from the lock position unto the installation has completed. If you move it accidentally, the steering column cannot be reinstalled correctly.

DISASSEMBLY SERVICE POINT

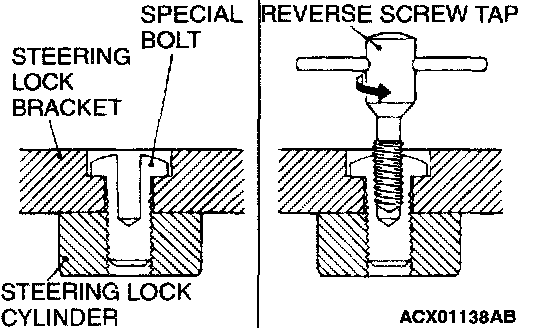

[[A]] SPECIAL BOLT REMOVAL





1. Drill in the special bolt a hole deep enough for the tap to stand.
2. Remove the special bolt with a left-hand tap.

ASSEMBLY SERVICE POINT

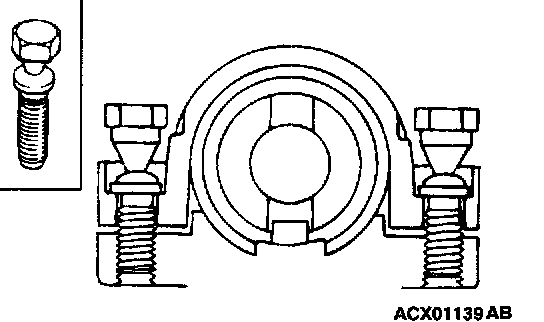

]]A[[ STEERING LOCK CYLINDER ASSEMBLY/STEERING LOCK BRACKET/SPECIAL BOLT INSTALLATION

CAUTION: The bolts must be replaced with new ones when the steering lock is installed.





1. When installing the steering lock cylinder and steering lock bracket to the steering column assembly, temporarily install the steering lock in alignment with the column boss.
2. After checking that the lock works properly, tighten the special bolts until the head is twisted off.
