Stator: Testing and Inspection
STATORStator:

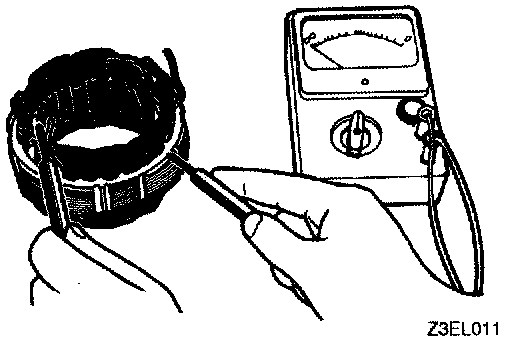

1. Check the continuity between coil leads. If there is no continuity, replace the stator.
Stator:

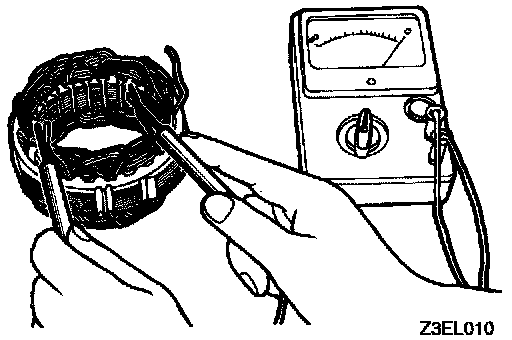

2. Check the continuity between coil and core. If there is no continuity, replace the stator.
1. Check the continuity between coil leads. If there is no continuity, replace the stator.
2. Check the continuity between coil and core. If there is no continuity, replace the stator.
