Alternator Brush: Testing and Inspection

BRUSH

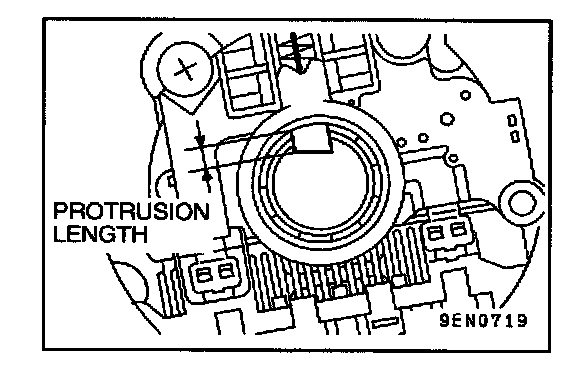

1. Measure the length of the protrusion of the brush. Replace the brush if the protrusion length is shorter than the limit.

Limit: ............................................2 mm minimum

2. Unsolder the lead of the brush. The brush will come out, ready for removal.

Brush Replacement:

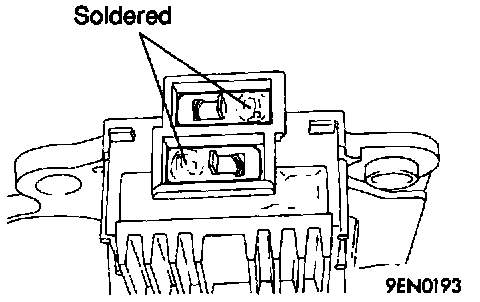

3. Install a new brush by pushing it into the holder as shown in the drawing and soldering the lead.
