Seat Belt

Front Seat Belts:

Rear Seat Belt:

ITEM SPECIFICATION

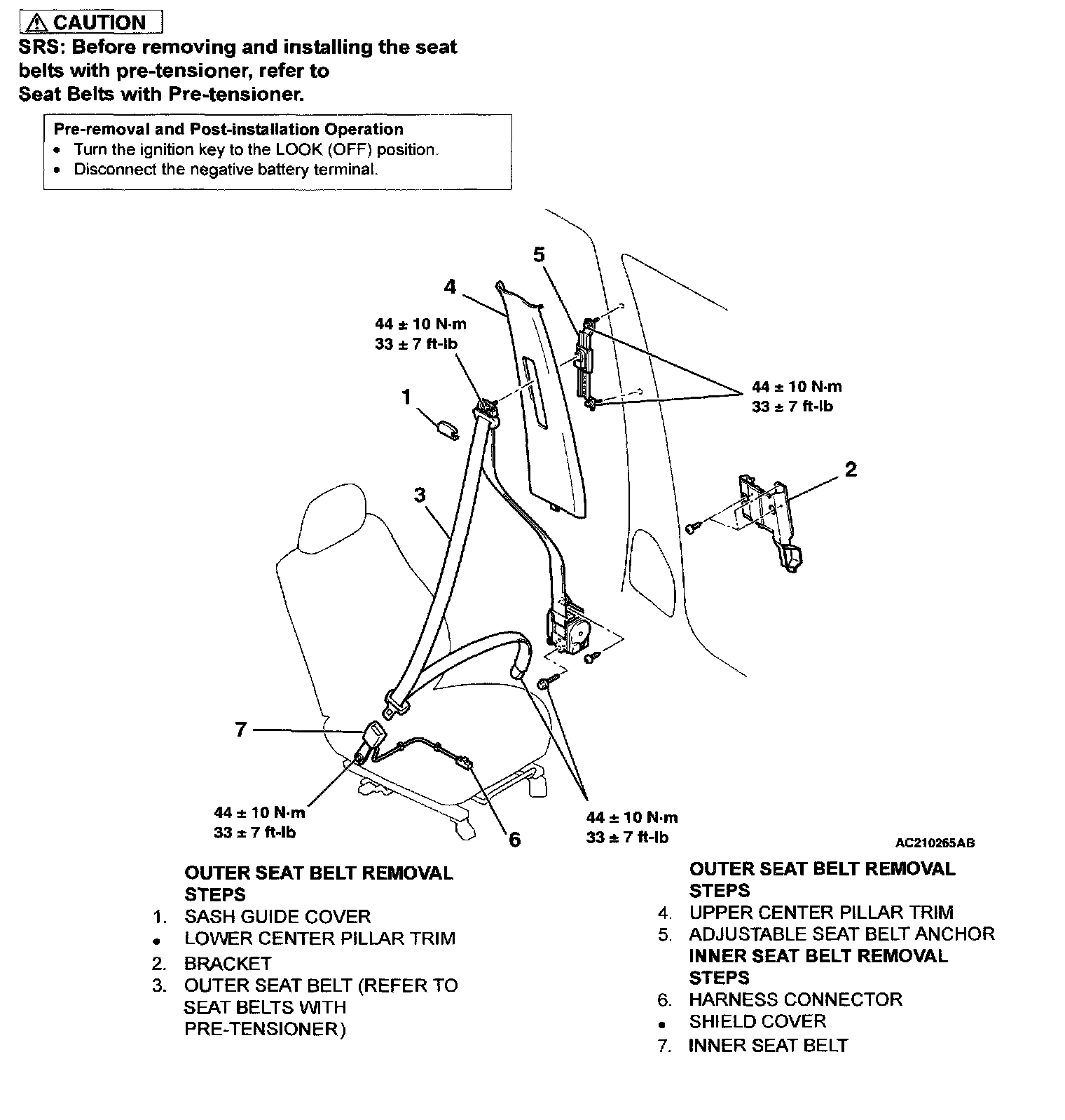

FRONT SEAT BELT
Adjustable seat belt anchor bolt 44 ± 10 N.m (33 ±7 ft-lb)
Inner seat belt bolt 44 ±10 N.m (33 ±7 ft-lb)
Outer seat belt bolt 44 ±10 N.m (33 ±7 ft-lb)

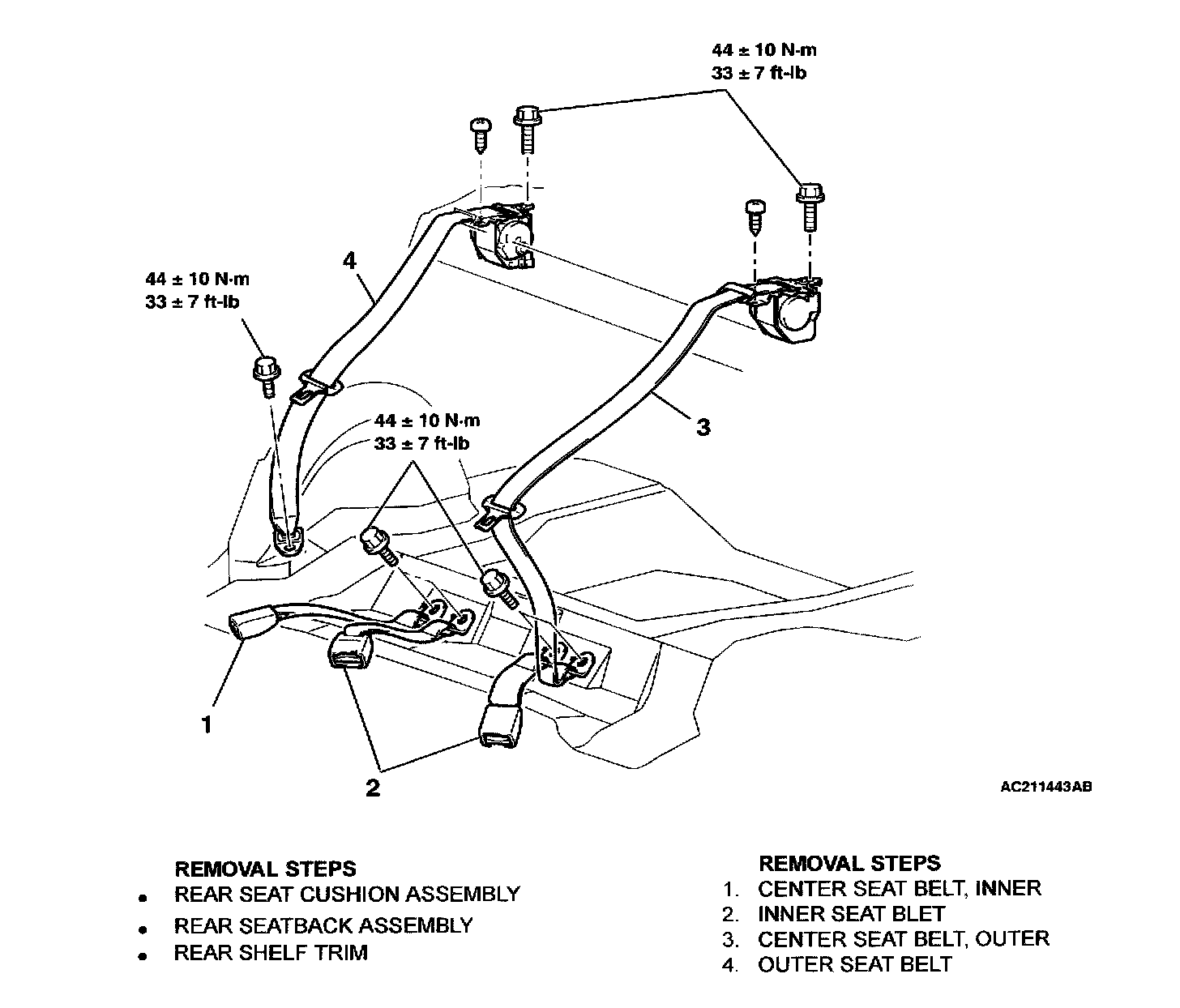

REAR SEAT BELT
Center seat belt, inner bolt 44 ± 10 N.m (33 ± 7 ft-lb)
Center seat belt, outer bolt 44 ± 10 N.m (33 ± 7 ft-lb)
Inner seat belt bolt 44 ± 10 N.m (33 ± 7 ft-lb)
Outer seat belt bolt 44 ± 10 N.m (33 ± 7 ft-lb)


Seat belts with pre-tensioner
Seat belt lower anchor bolt 44 ± 10 N.m (33 ± 7 ft-lb)
Seat belt shoulder anchor bolt 44 ± 10 N.m (33 ± 7 ft-lb)
Seat belt with pre-tensioner mounting bolt 44 ± 10 N.m (33 ± 7 ft-lb)
