Lancer Evolution L4-2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Cylinder Block Assembly
>>
System Specifications
>>
Engine Overhaul
>>
Service Specifications
Service Specifications
The contents of this image reflects the changes called out by TSB-05-11-001

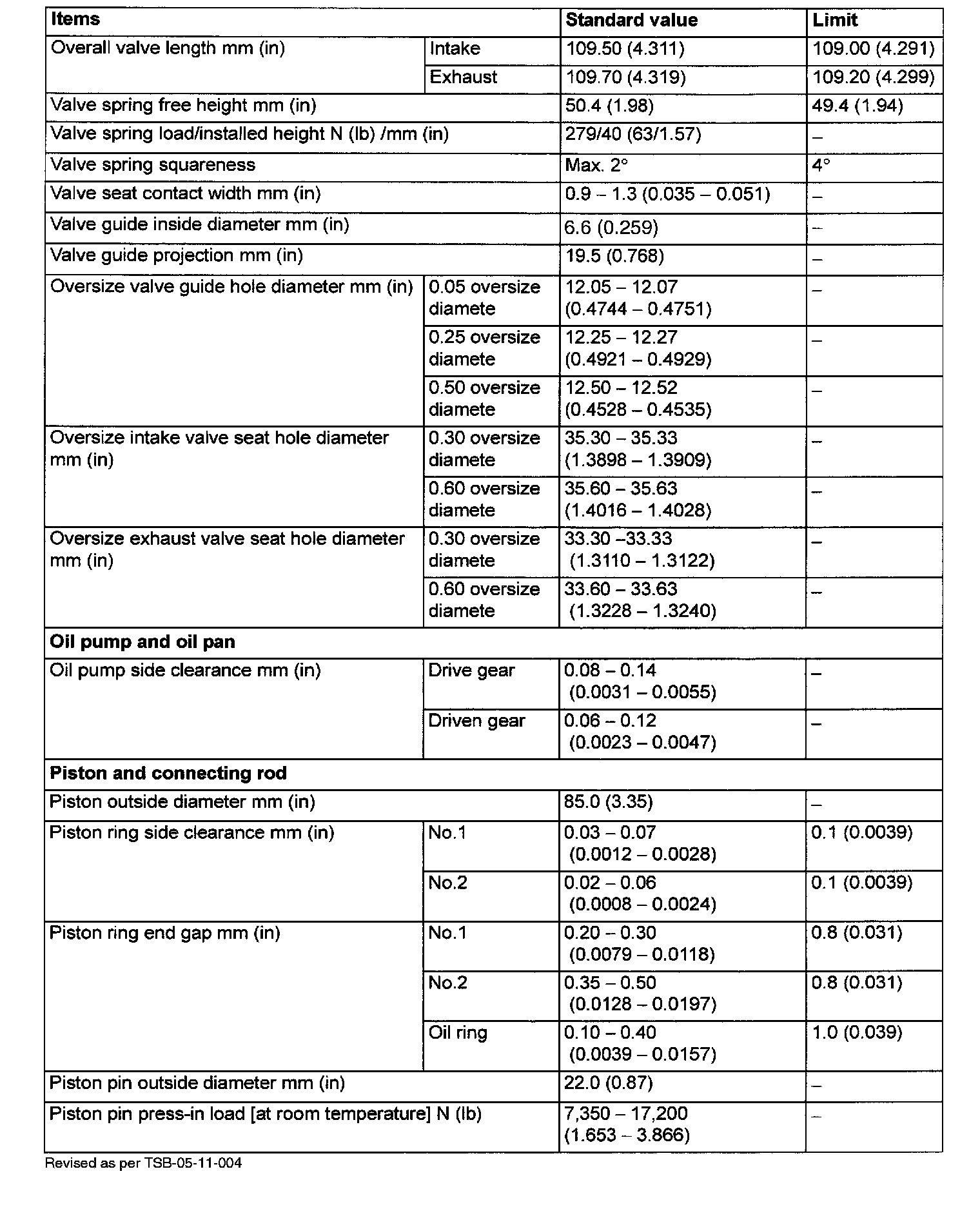

Part 1 Of 3:

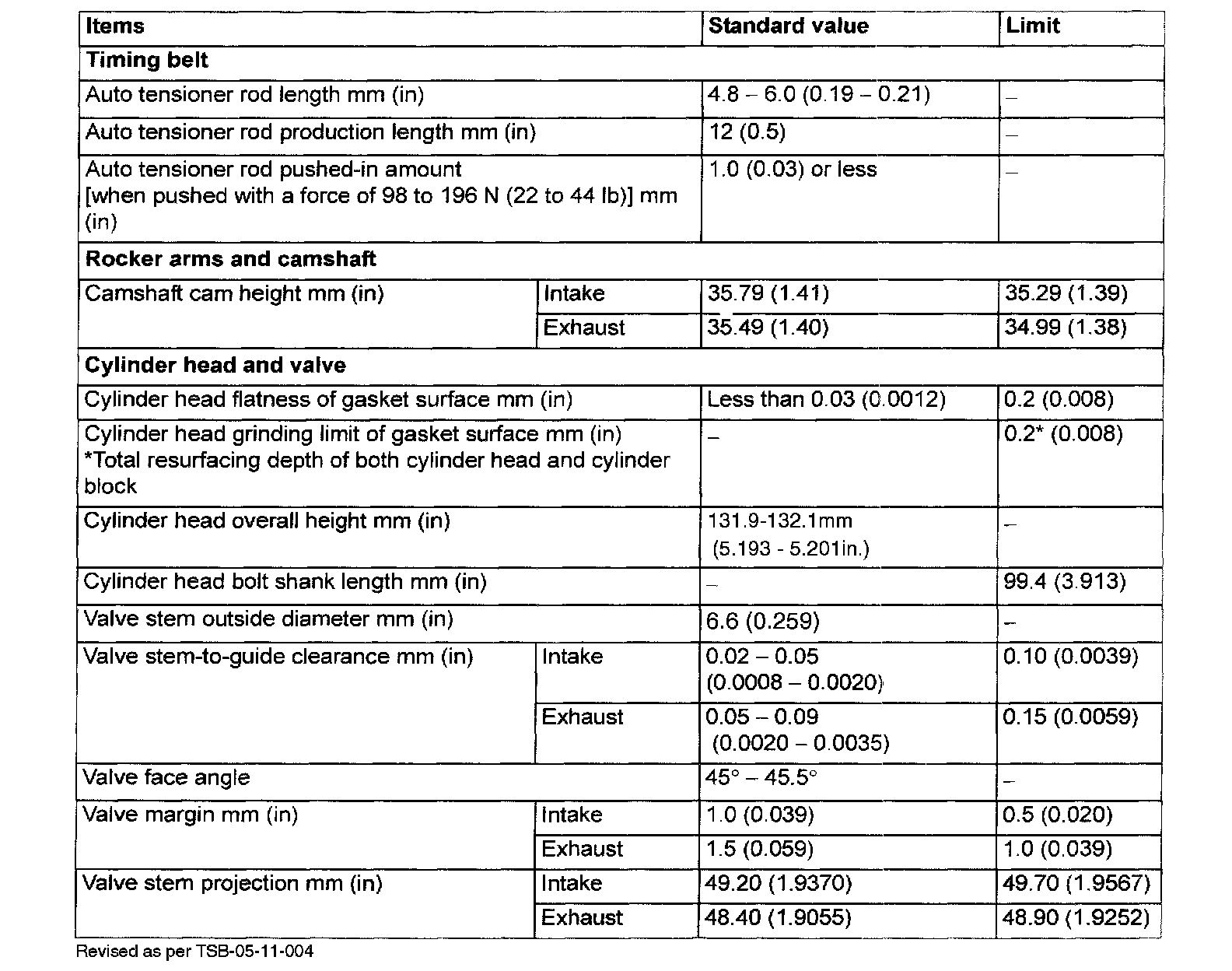

Part 2 Of 3:
Part 3 Of 3:
SERVICE SPECIFICATIONS
