Home >> Mitsubishi >> 2004 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Blower Motor

Blower Motor

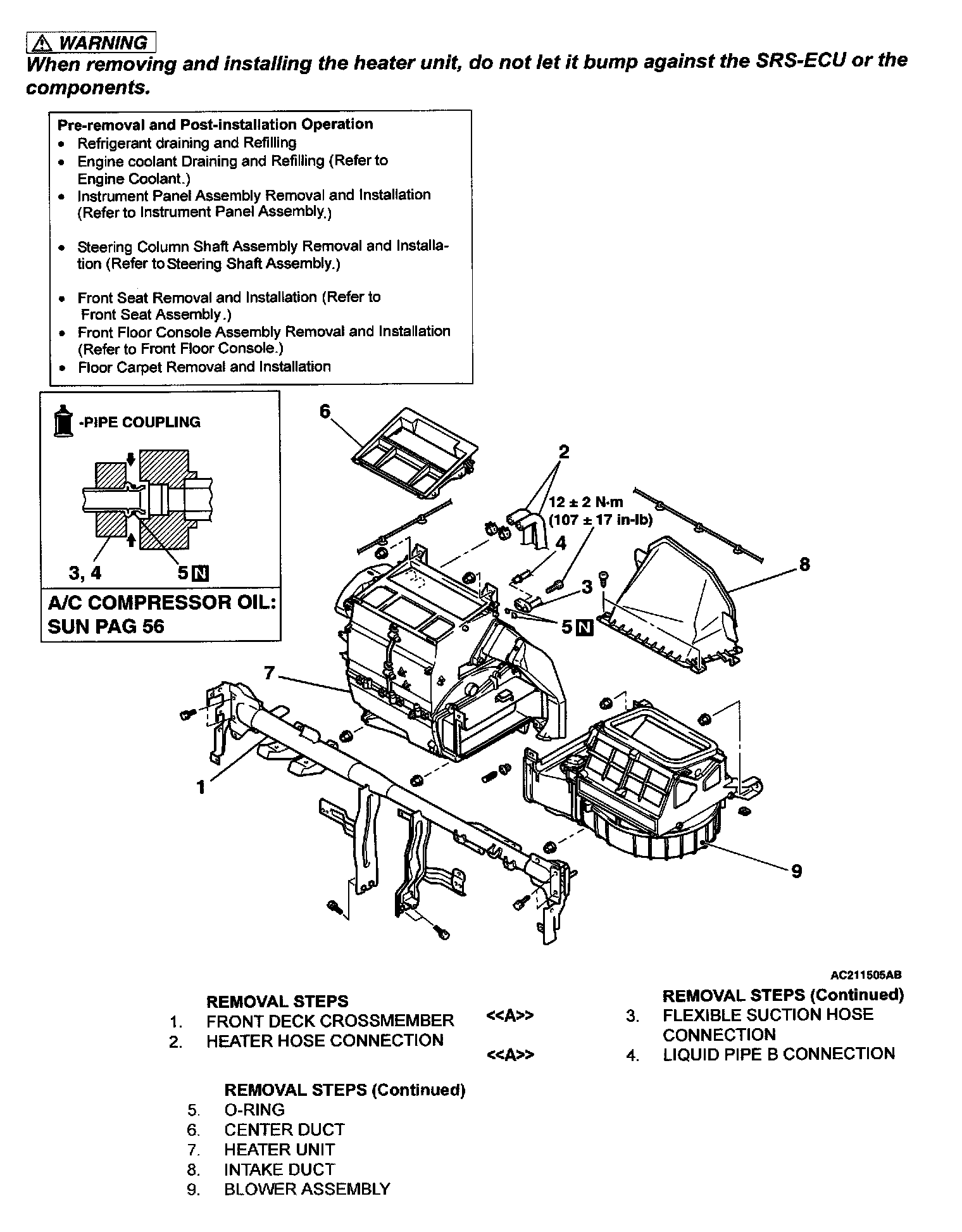

Heater Unit, Heater Core, Blower Assembly And Evaporator Unit:
