Charge Air Cooler Water Spray Systems

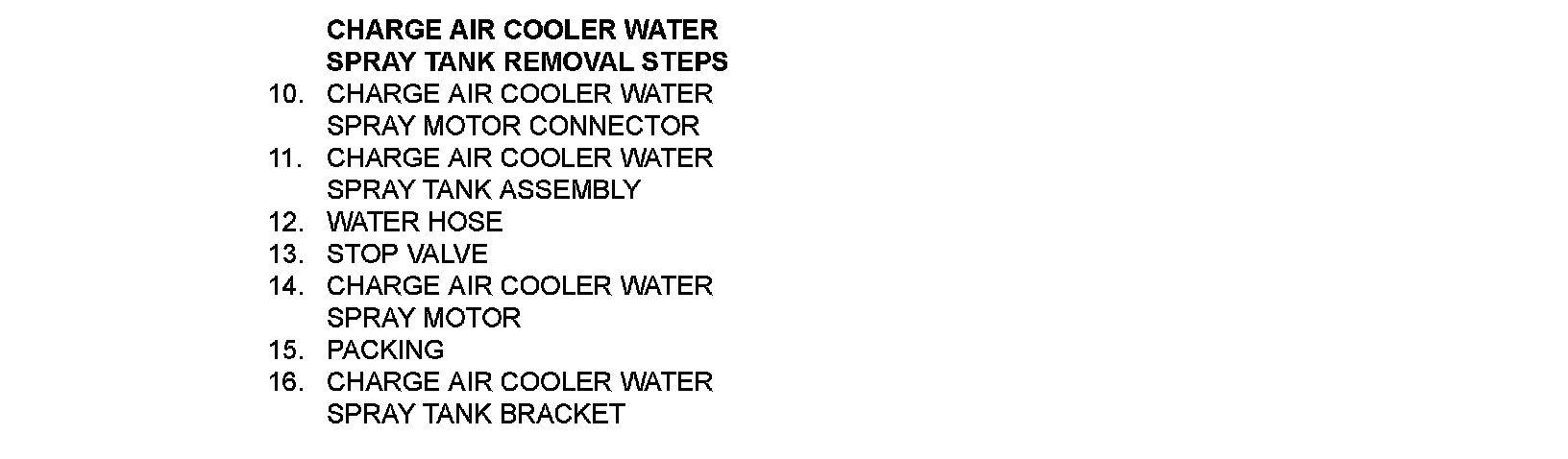

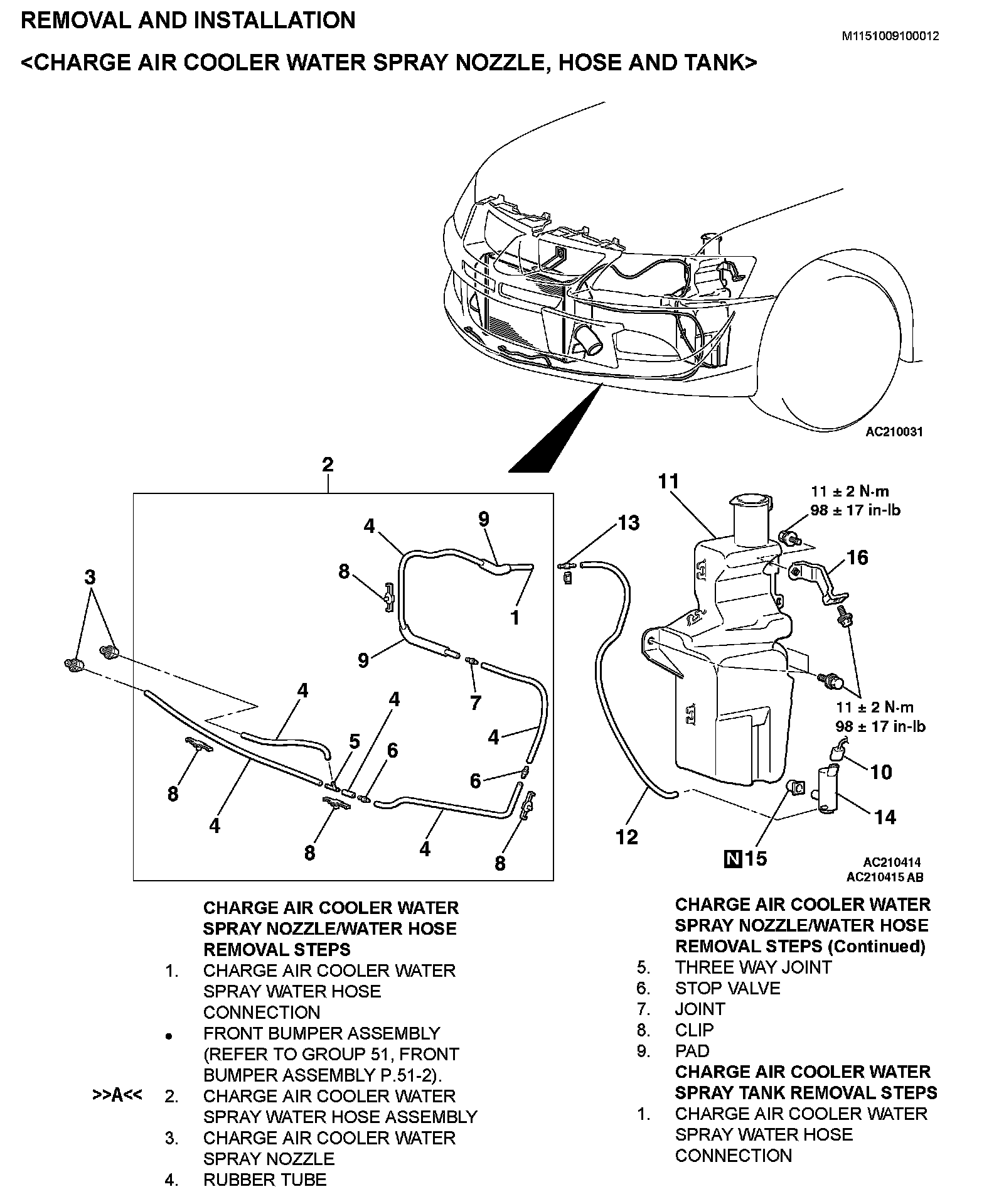

REMOVAL AND INSTALLATION

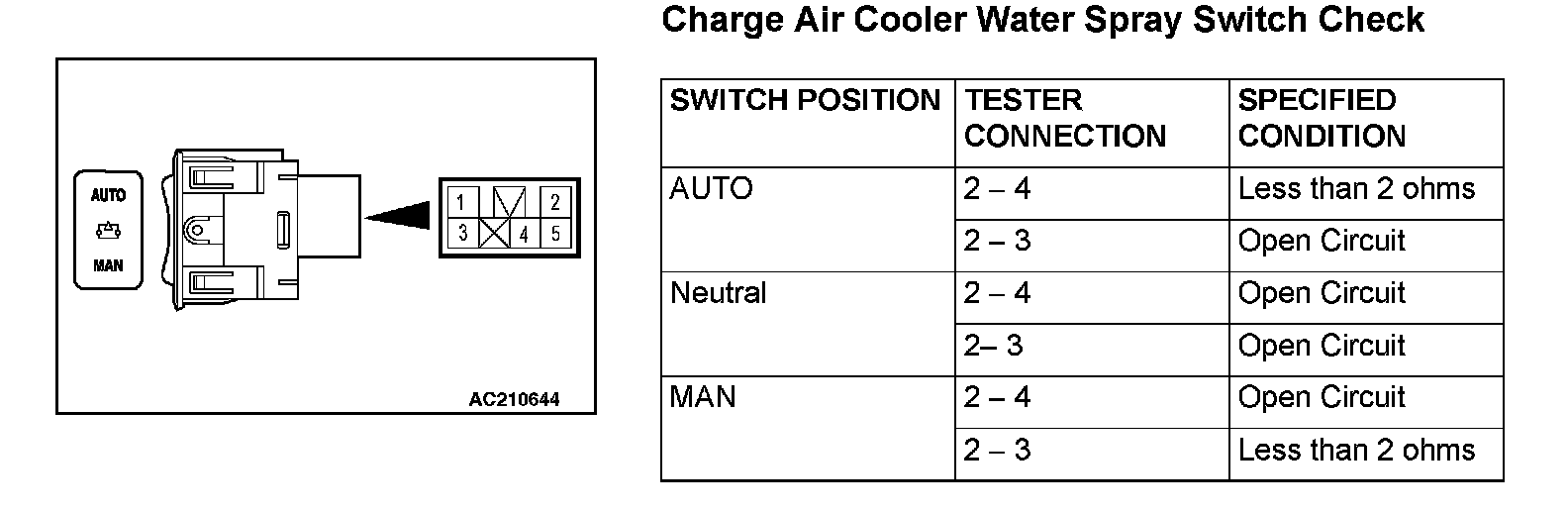

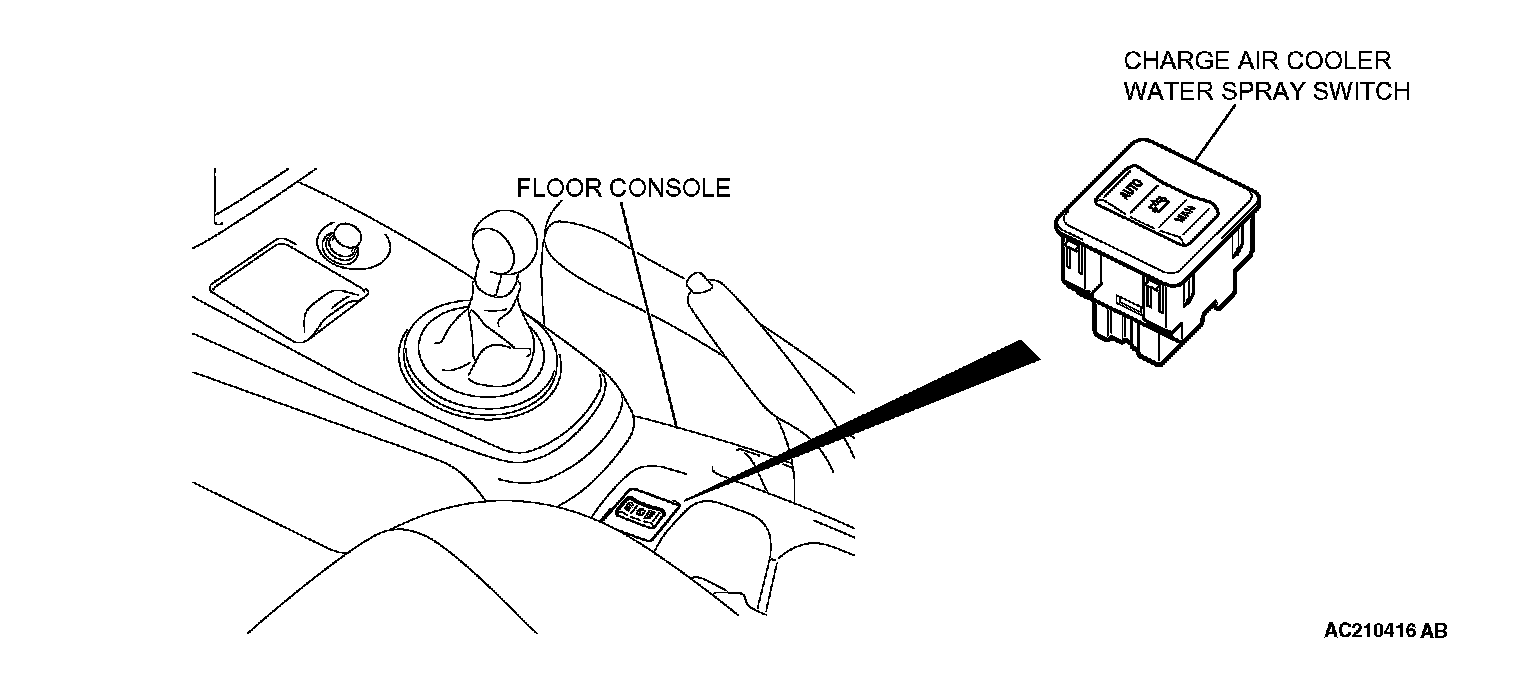

Charge Air Cooler Water Spray Switch






Installation Service Point

>>A<< Charge Air Cooler Water Spray Water Hose Assembly Installation

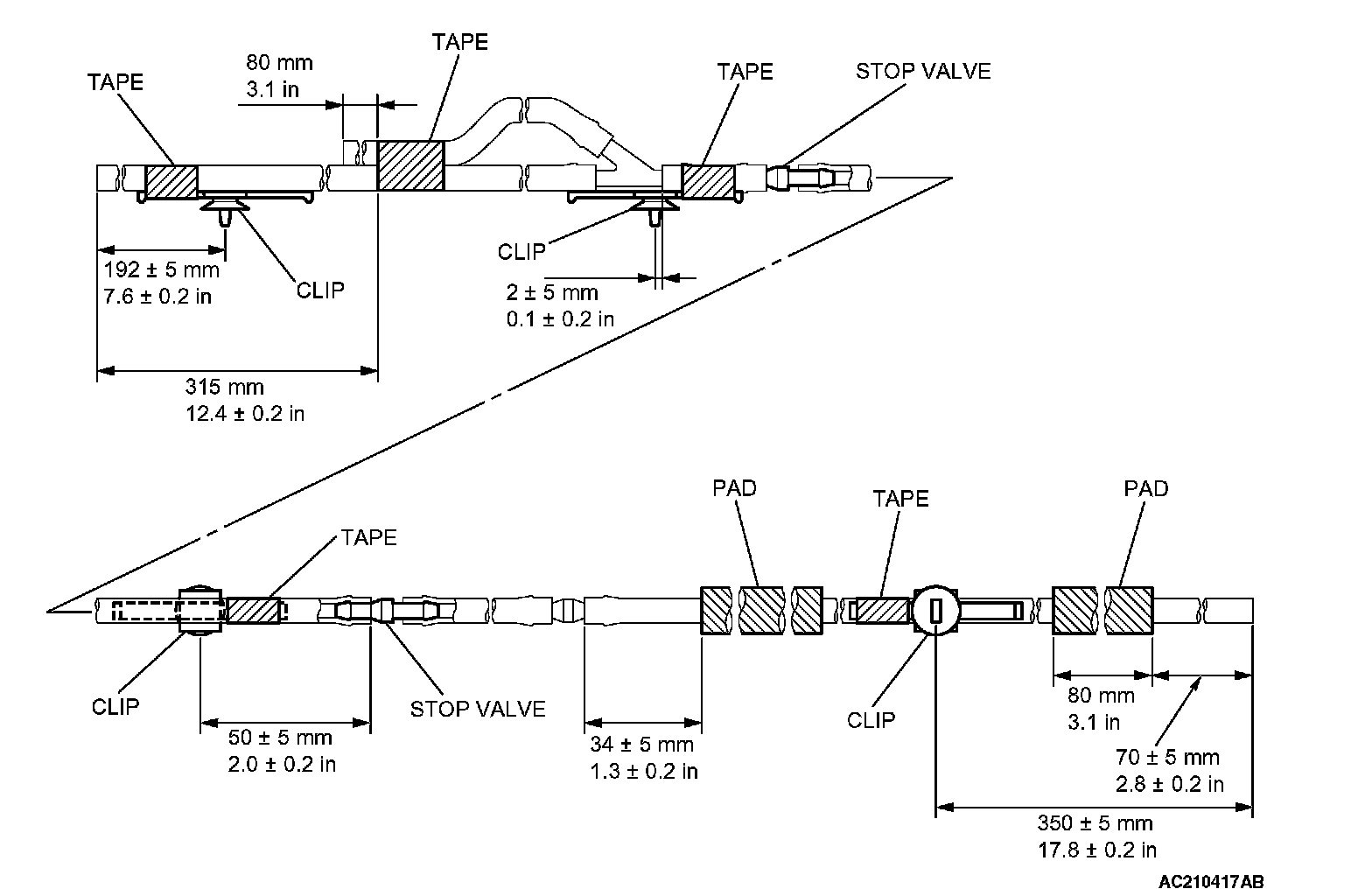

1. After the rubber tubes, the three-way joint, the stop valves and the joint are assembled, affix the clips, the pads and tape to the rubber tubes as shown.

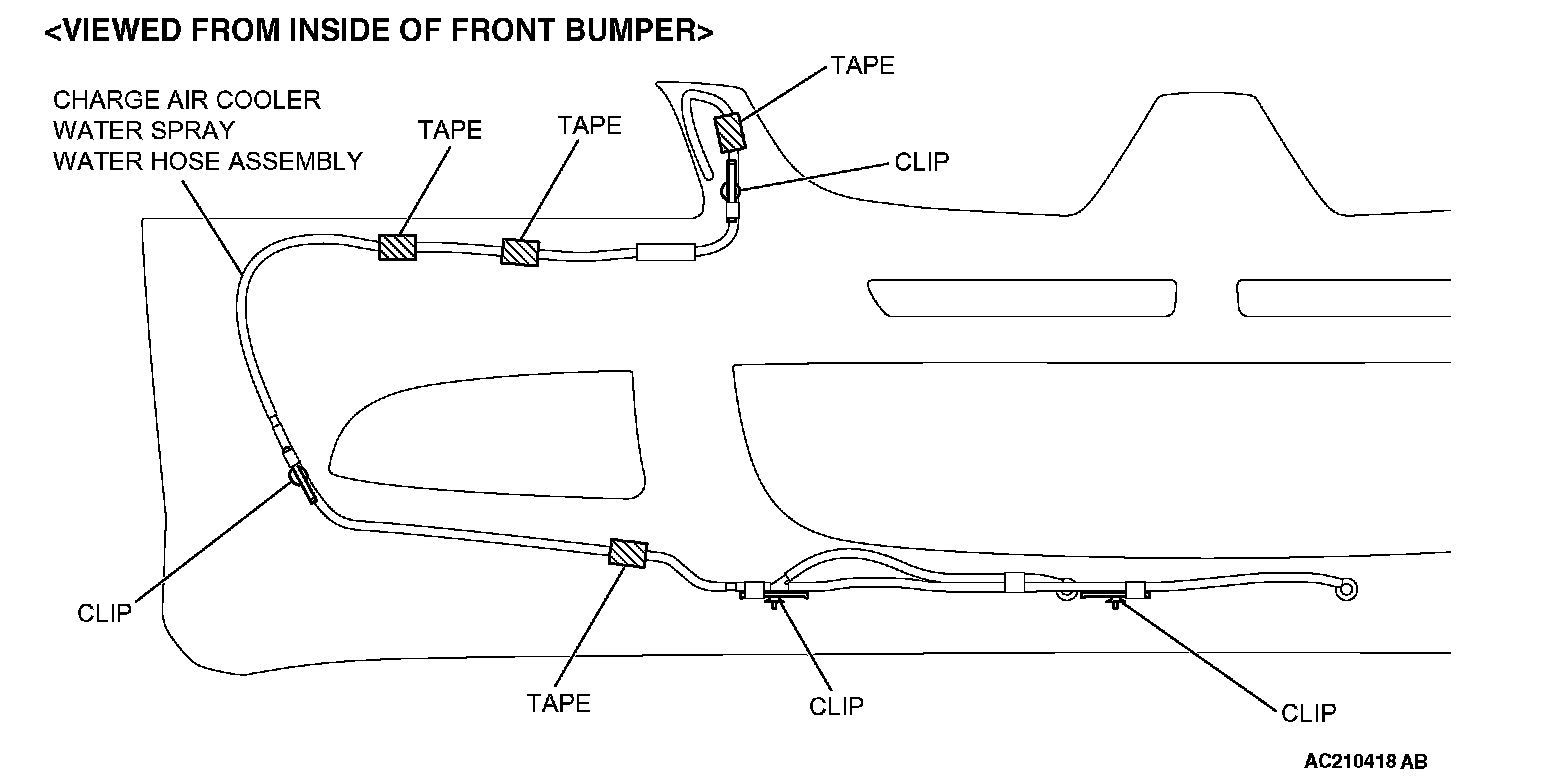

2. Use clips and tapes to locate the charge air cooler water spray water hose assembly in position.

Inspection

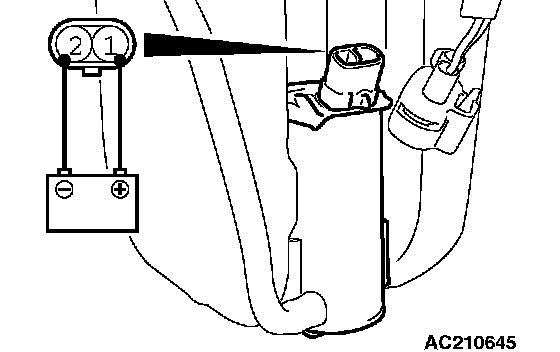

Charge Air Cooler Water Spray Motor Check

1. Check the charge air cooler water spray motor with the charge air cooler water spray tank attached after the tank is supplied with water.





2. Check that the water is supplied with strong pressure after energizing terminal number 1 with battery voltage and grounding terminal number 2.
