Home >> Mitsubishi >> 2004 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Index

Symptom Index

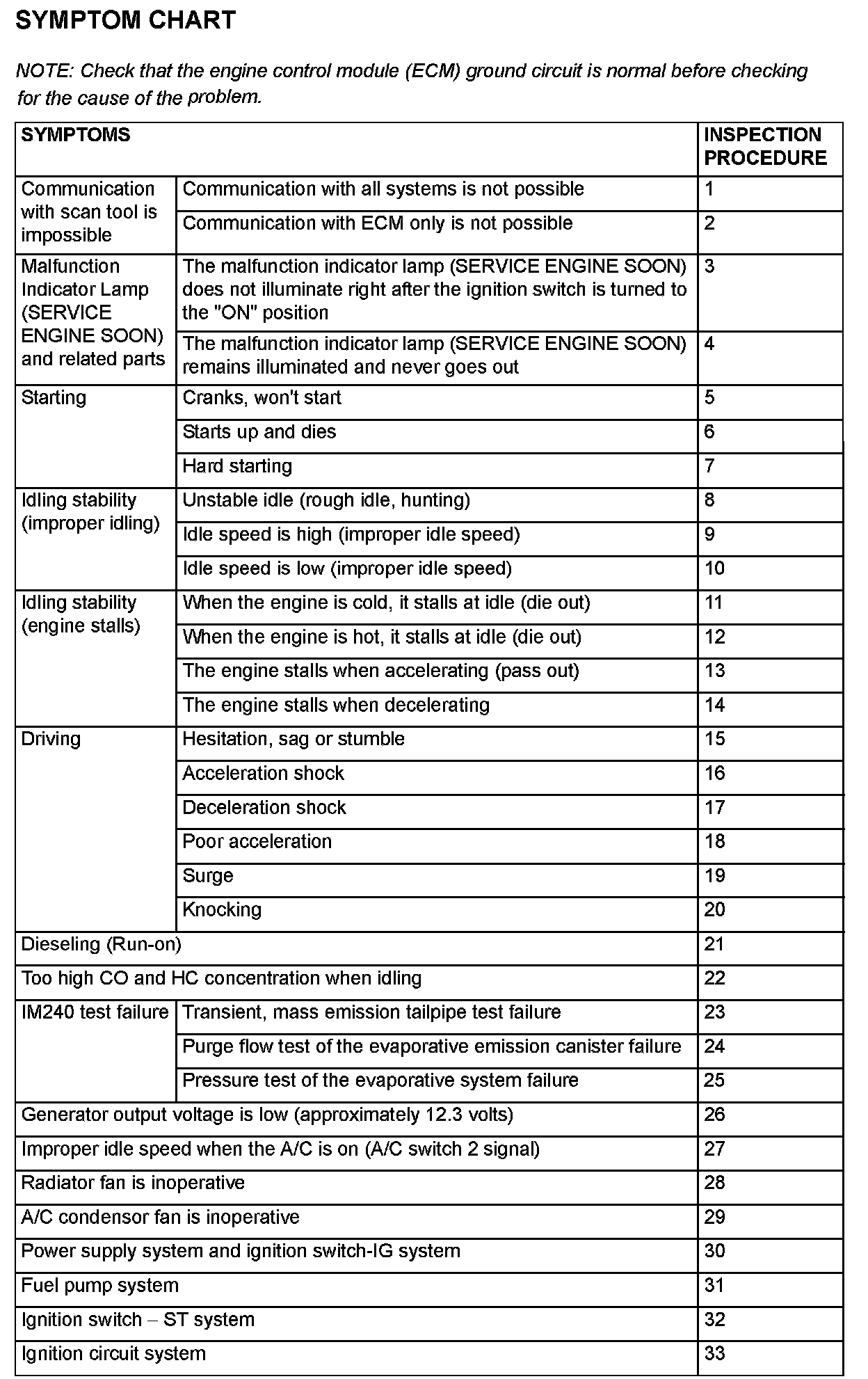

Symptom Chart Part 1:

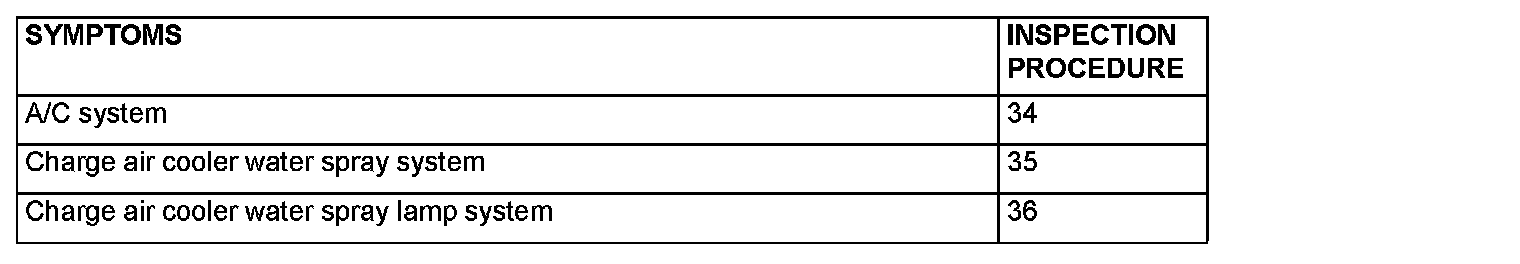

Symptom Chart Part 2:

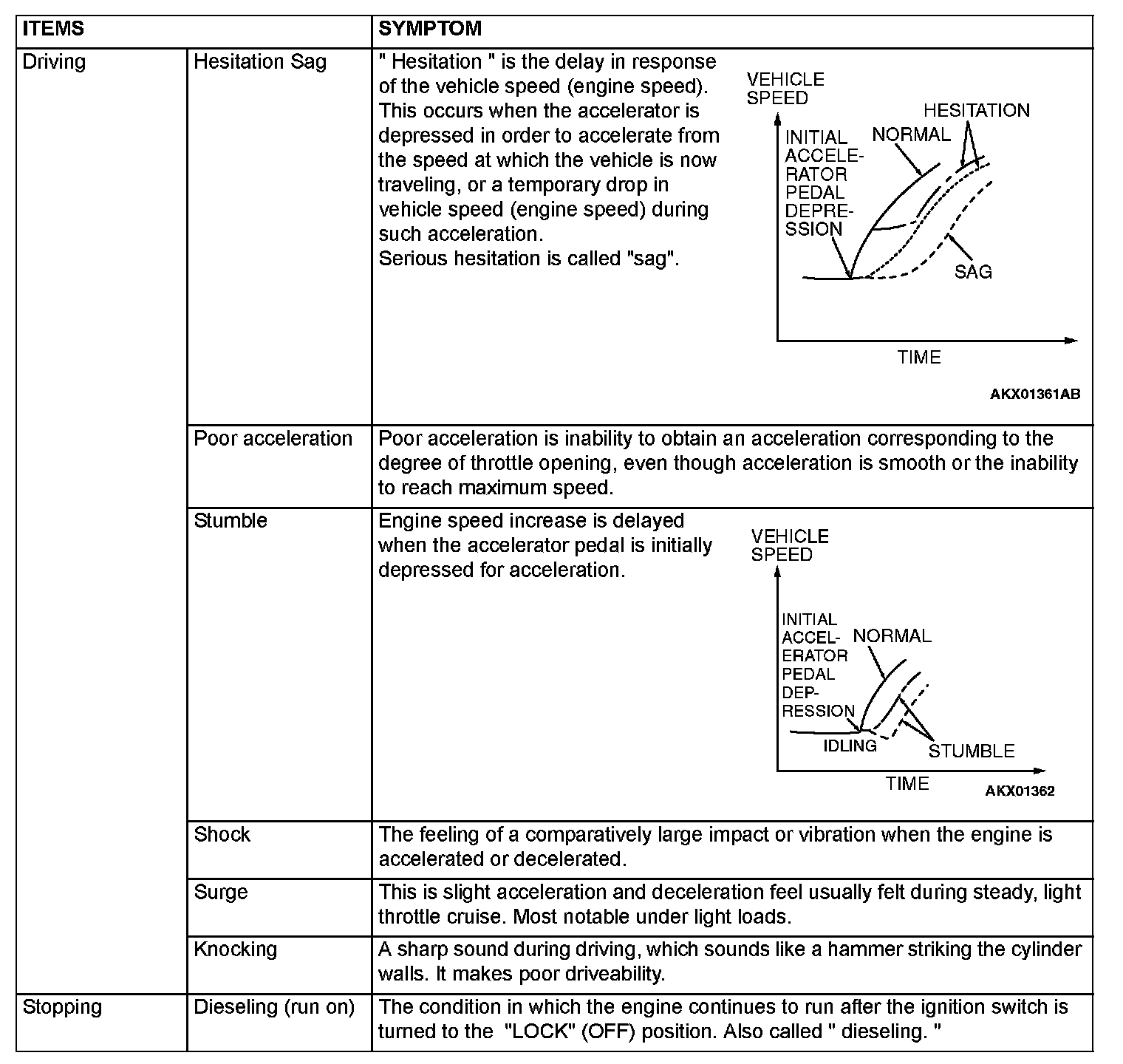

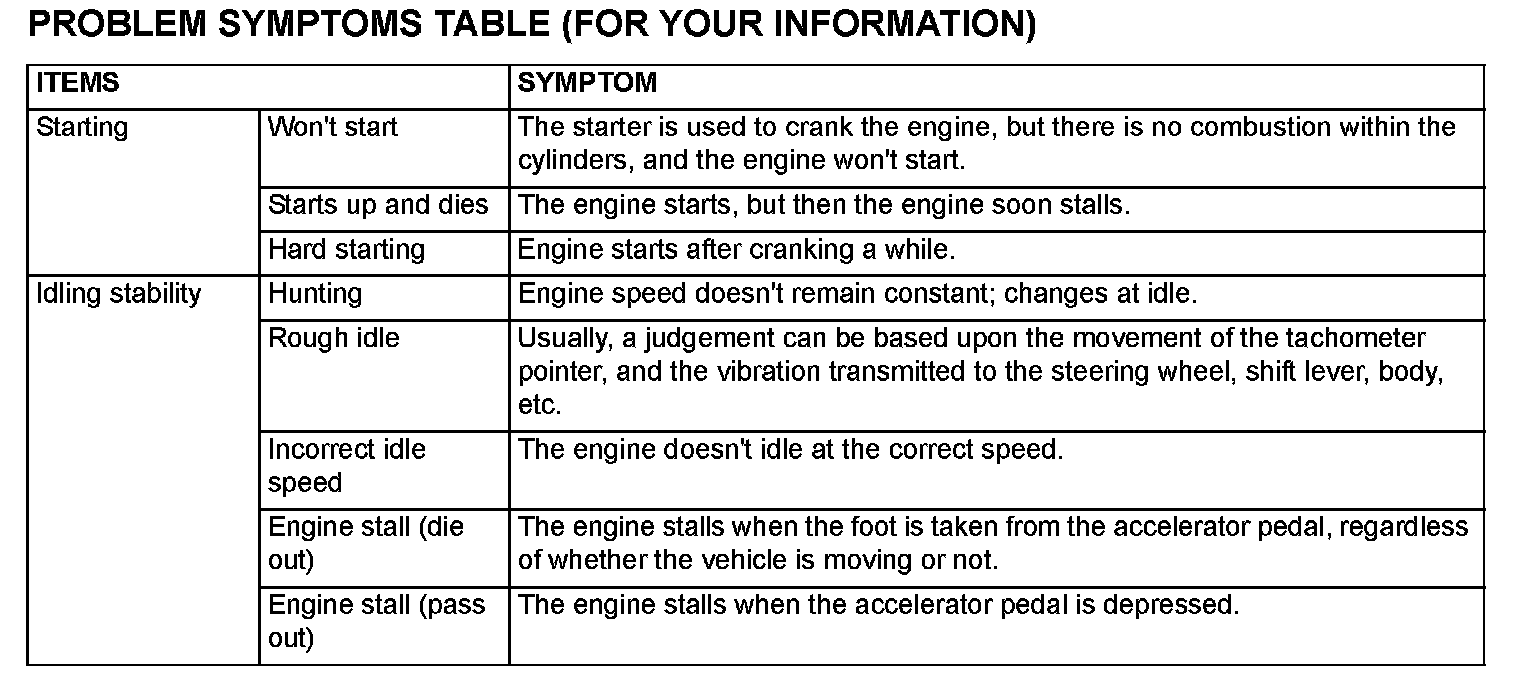

Problem Symptoms Table (For Your Information) Part 1:



Problem Symptoms Table (For Your Information) Part 2:
