Inspection Procedure 26

Generator Output Voltage is Low (Approximately 12.3 Volts)

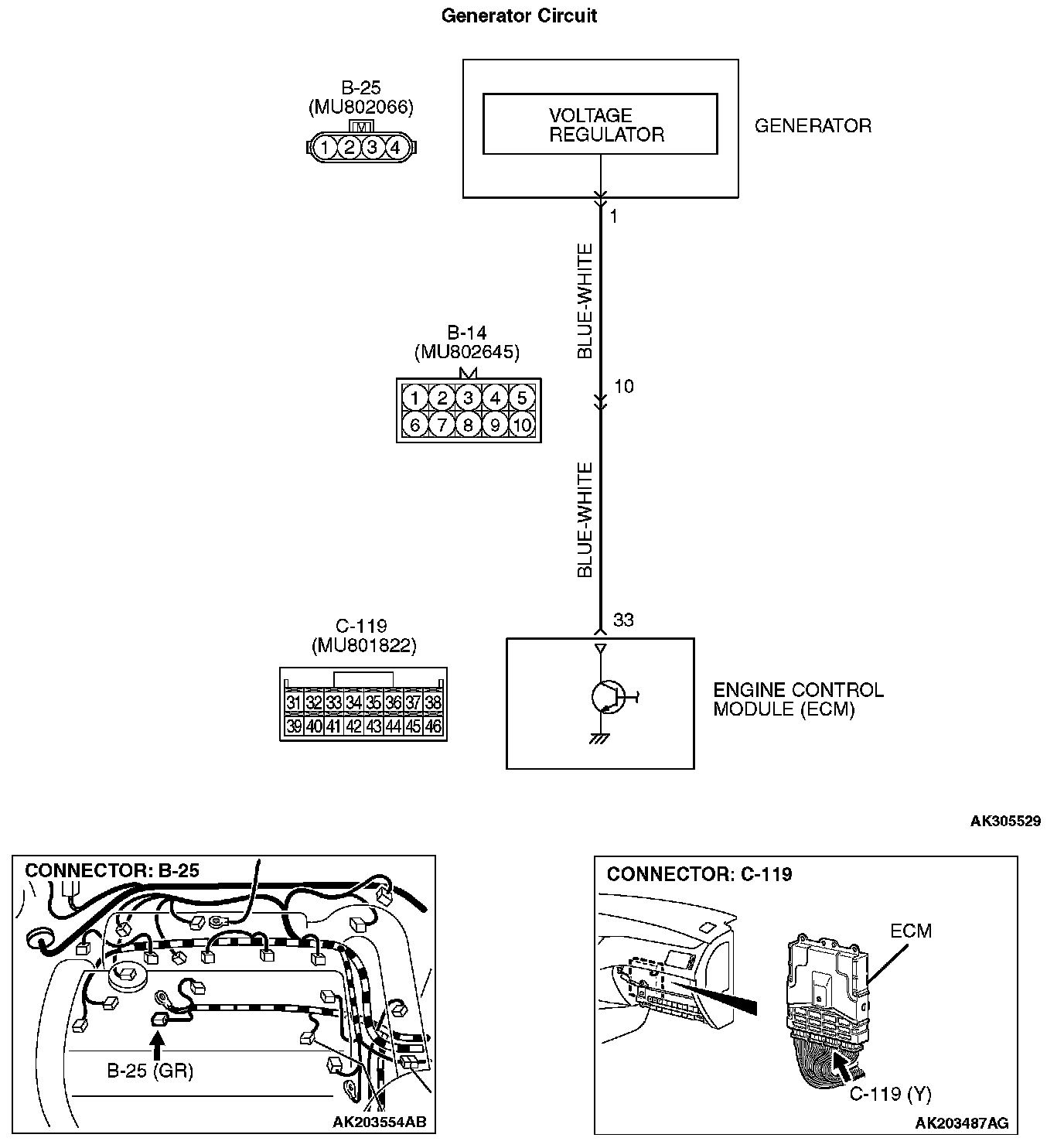

Generator Circuit Part 1:

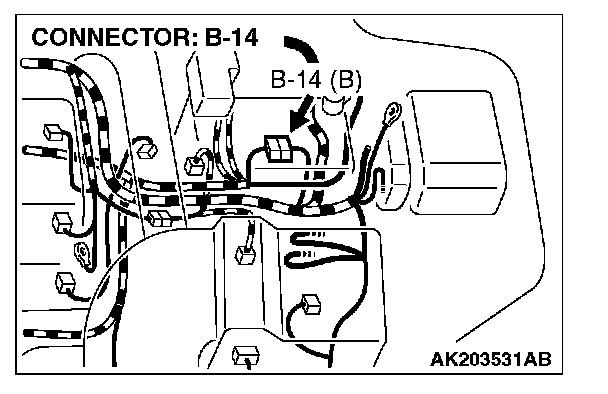

Generator Circuit Part 2:

CIRCUIT OPERATION
- The ECM controls generator output current by duty-controlling continuity between the generator G terminal (terminal 1) and ground.

TROUBLESHOOTING HINTS (The most likely causes for this charging system:)
- Malfunction of the charging system.
- Short circuit in the harness between generator G terminal and ECM.
- ECM failed.

DIAGNOSIS

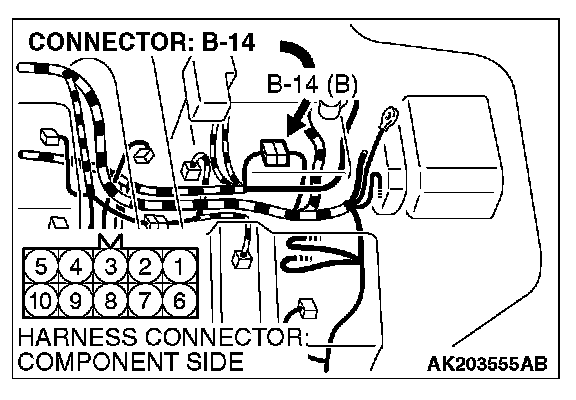

STEP 1. Measure the voltage at generator intermediate connector B-14 by backprobing.




1. Do not disconnect the connector B-14.
2. Start the engine and run at idle.

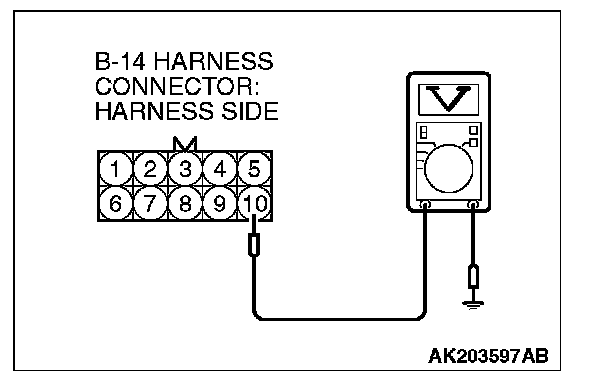

3. Measure the voltage between terminal No. 10 and ground by backprobing
a. Engine: warming up
b. Radiator fan: stopped
c. Headlight switch: OFF to ON
d. Rear defogger switch: OFF to ON
e. Stoplight switch: OFF to ON
- Voltage rises by 0.2 - 3.5 volts.

4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the measured voltage between 0.2 and 3.5 volts?

YES: Replace the generator. Then confirm that the malfunction symptom is eliminated.

NO: Go to Step 2.

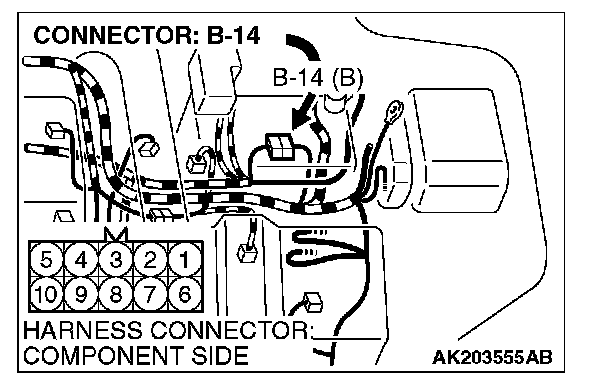

STEP 2. Check connector B-14 at generator intermediate connector for damage.

Q: Is the connector in good condition?

YES: Go to Step 3.

NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.

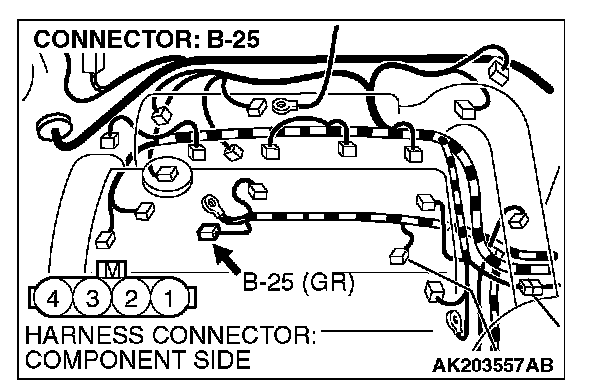

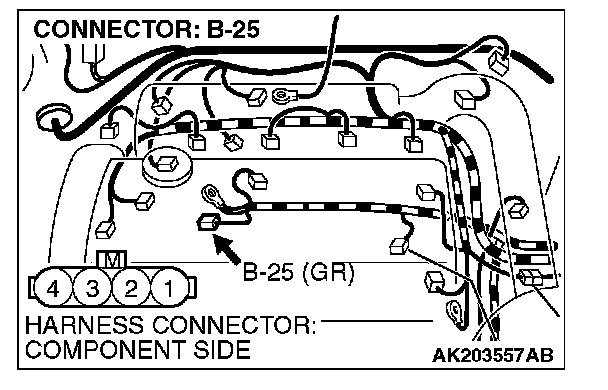

STEP 3. Check connector B-25 at generator connector for damage.

Q: Is the connector in good condition?

YES: Go to Step 4

NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.

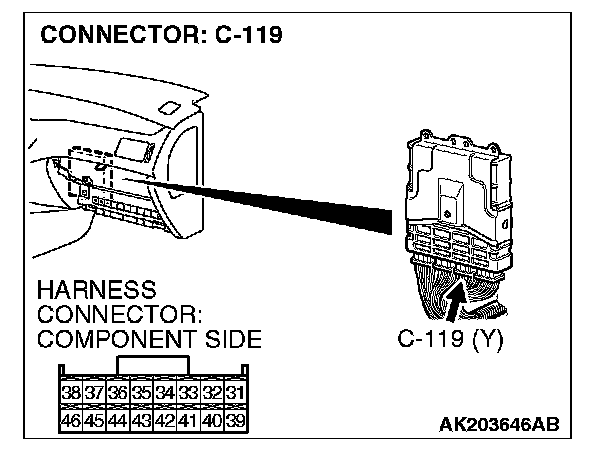

STEP 4. Check connector C-119 at ECM for damage.

Q: Is the connector in good condition?

YES: Go to Step 5.

NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.

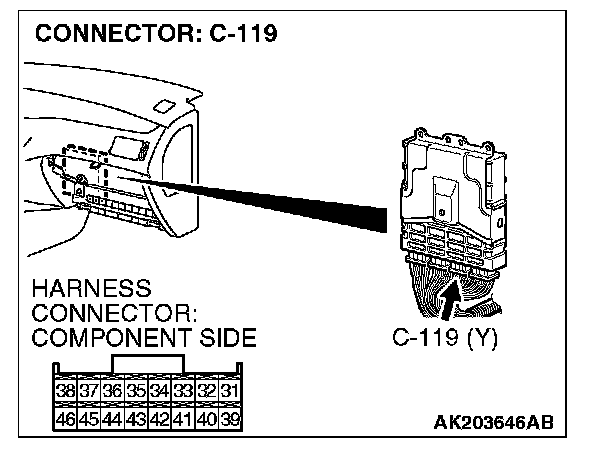

STEP 5. Check for open circuit and short circuit to ground and harness damage between generator connector B-25 (terminal No. 1) and ECM connector C-119 (terminal No. 33).

NOTE: Check harness after checking intermediate connector B-14. If intermediate connector is damaged, repair or replace it. Refer to Harness Connector Inspection. The confirm that the malfunction symptom is eliminated.

Q: Is the harness wire in good condition?

YES: Replace the ECM. Then confirm that the malfunction symptom is eliminated.

NO: Repair it. Then confirm that the malfunction symptom is eliminated.
