Turn Signals: Service and Repair

Turn-Signal Light:






REMOVAL SERVICE POINT










<> SIDE TURN SIGNAL LIGHT REMOVAL

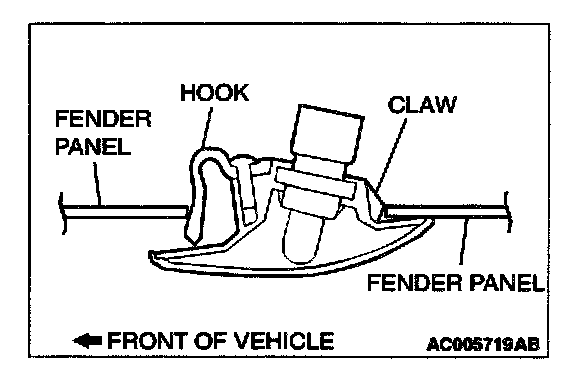

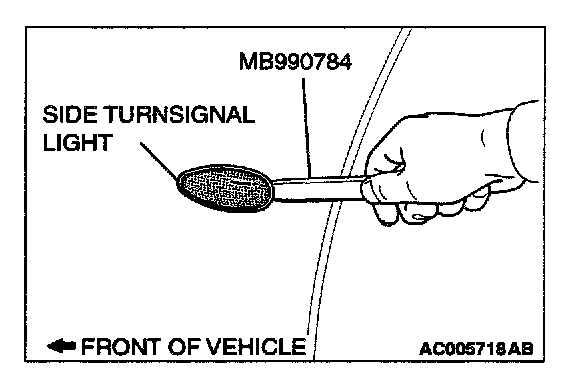

Use special tool MB990784, etc. to press and deflect the hook to vehicle front from fender, and unhook the pawls to remove the side turn-signal light

INSTALLATION SERVICE POINT

>>A<< SIDE TURN SIGNAL LIGHT INSTALLATION
Insert the pawls into the fender panel and install the side turn-signal light.
