Compressor Clutch: Testing and Inspection

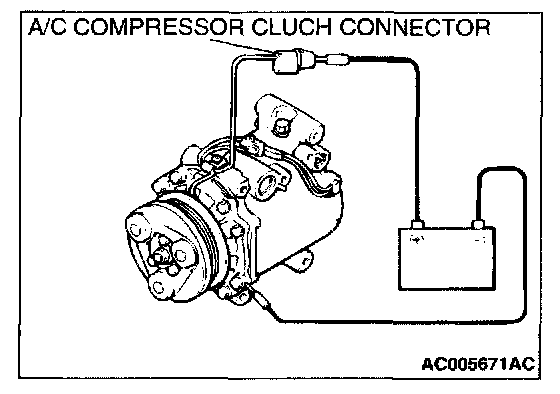

A/C COMPRESSOR CLUTCH TEST







1. Disconnect the A/C compressor clutch connector.
2. Connect positive battery voltage directly to the connector for the A/C compressor clutch.
3. If the A/C compressor clutch is normal, there will be "click." If the pullet and armature do not make contact ("click"), there is a malfunction.
