Disassembly and Assembly

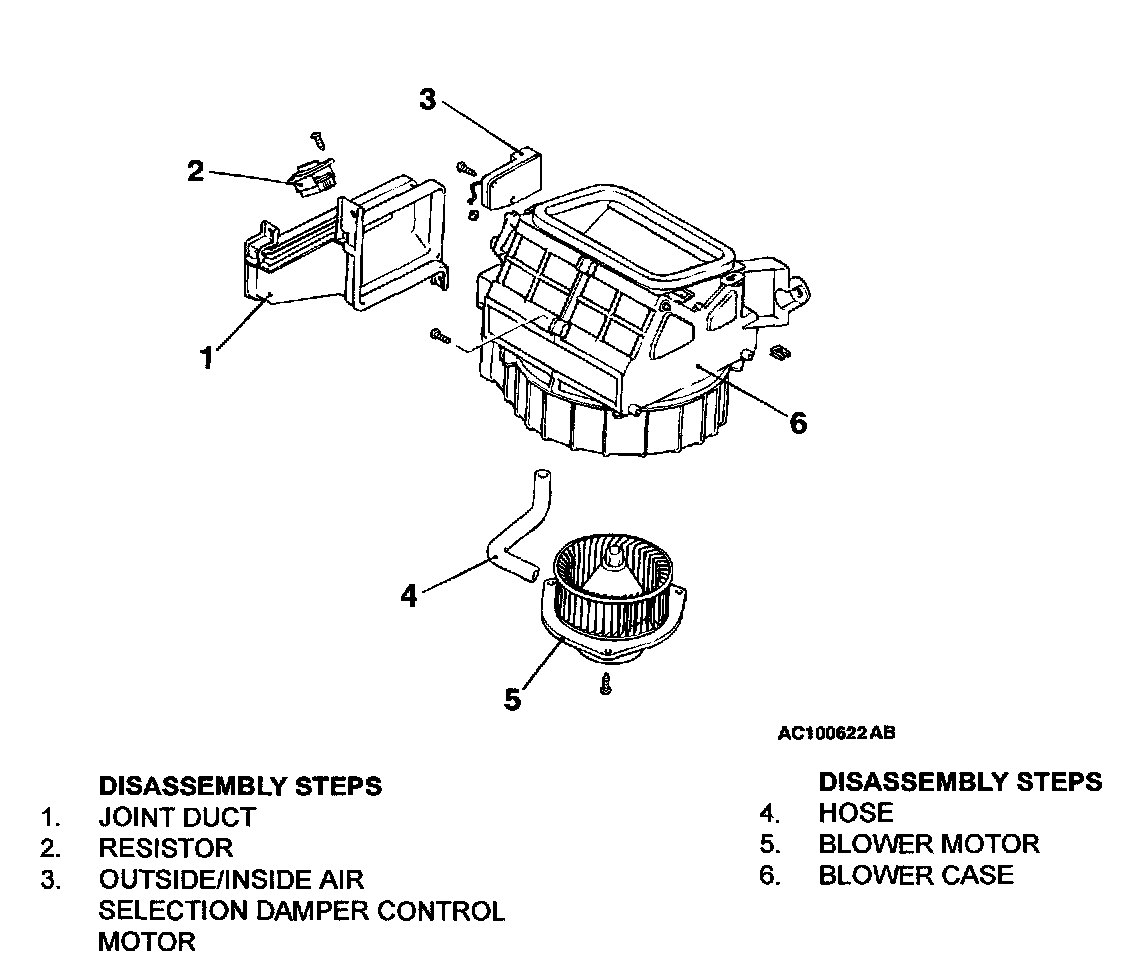

Blower Assembly And Resistor:

Blower Assembly:

REMOVAL SERVICE POINT

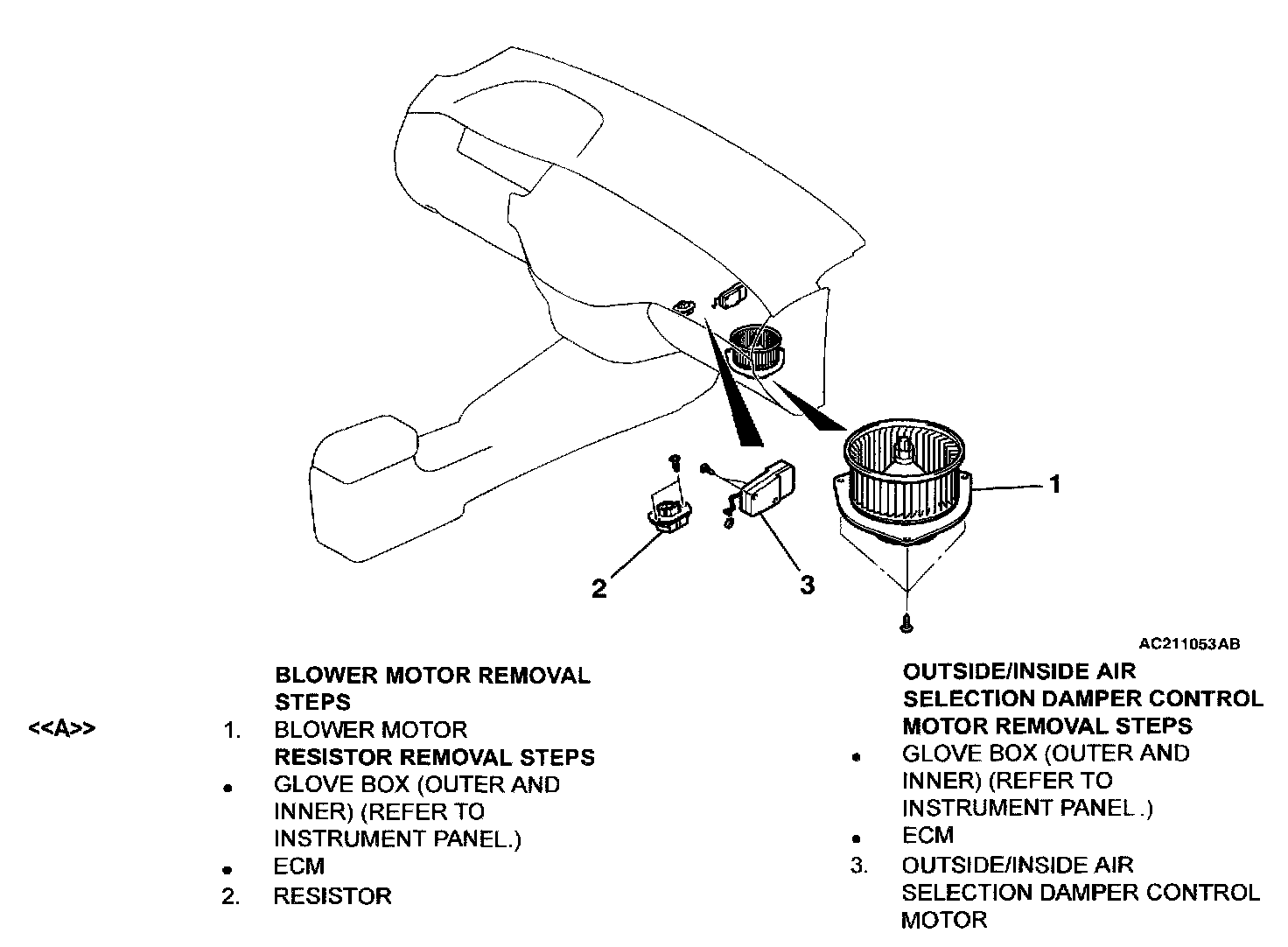

<> BLOWER MOTOR REMOVAL

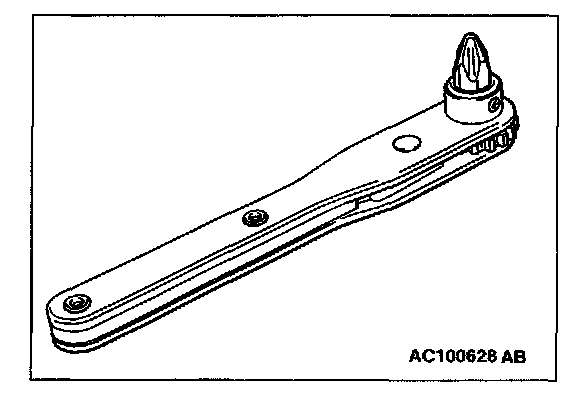

NOTE: A normal plate-type ratchet driver is recommended.
