Air Door Actuator / Motor: Testing and Inspection

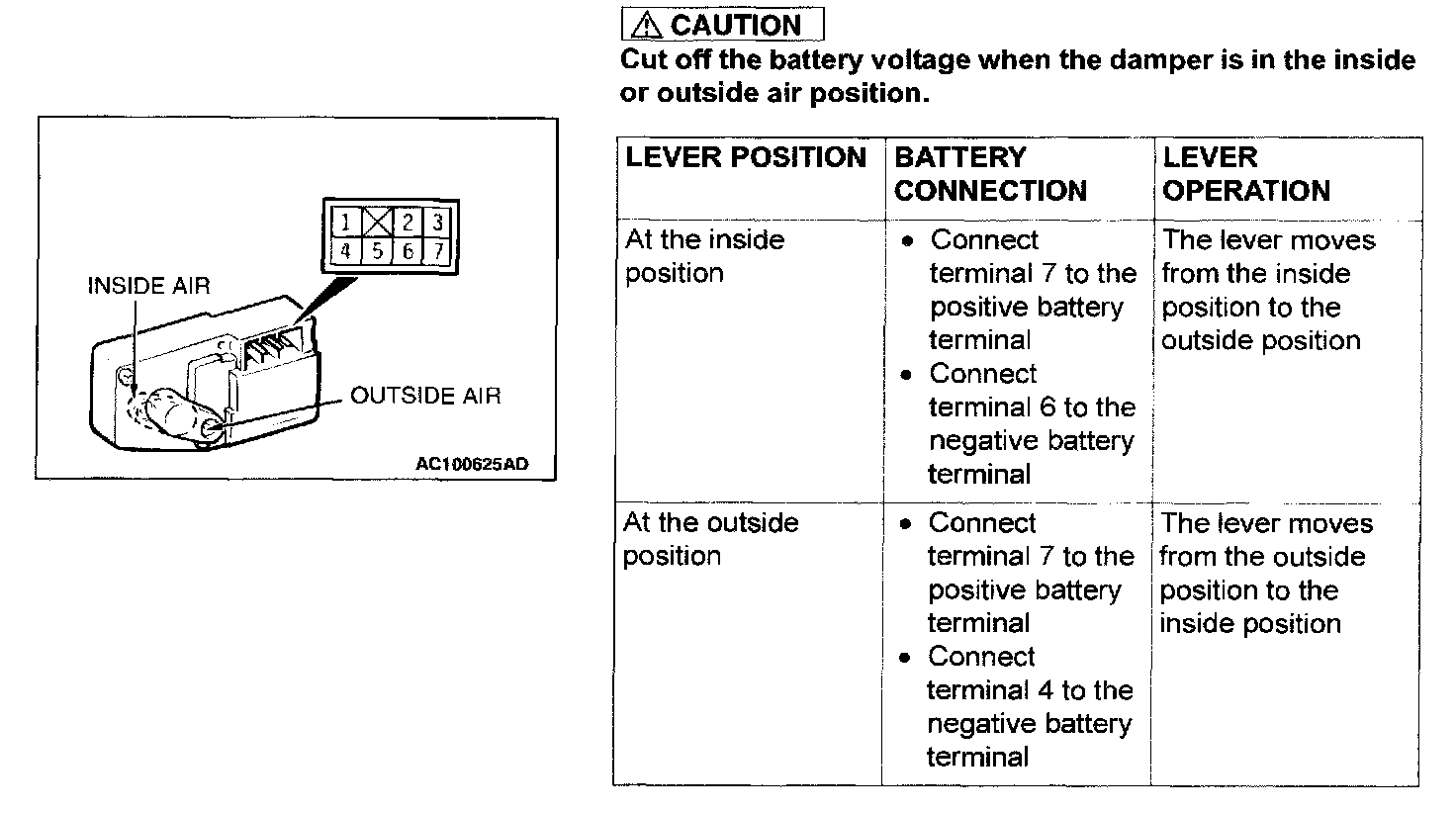

Outside/Inside Air Selection Damper Control Motor Check:
