Removal and Installation

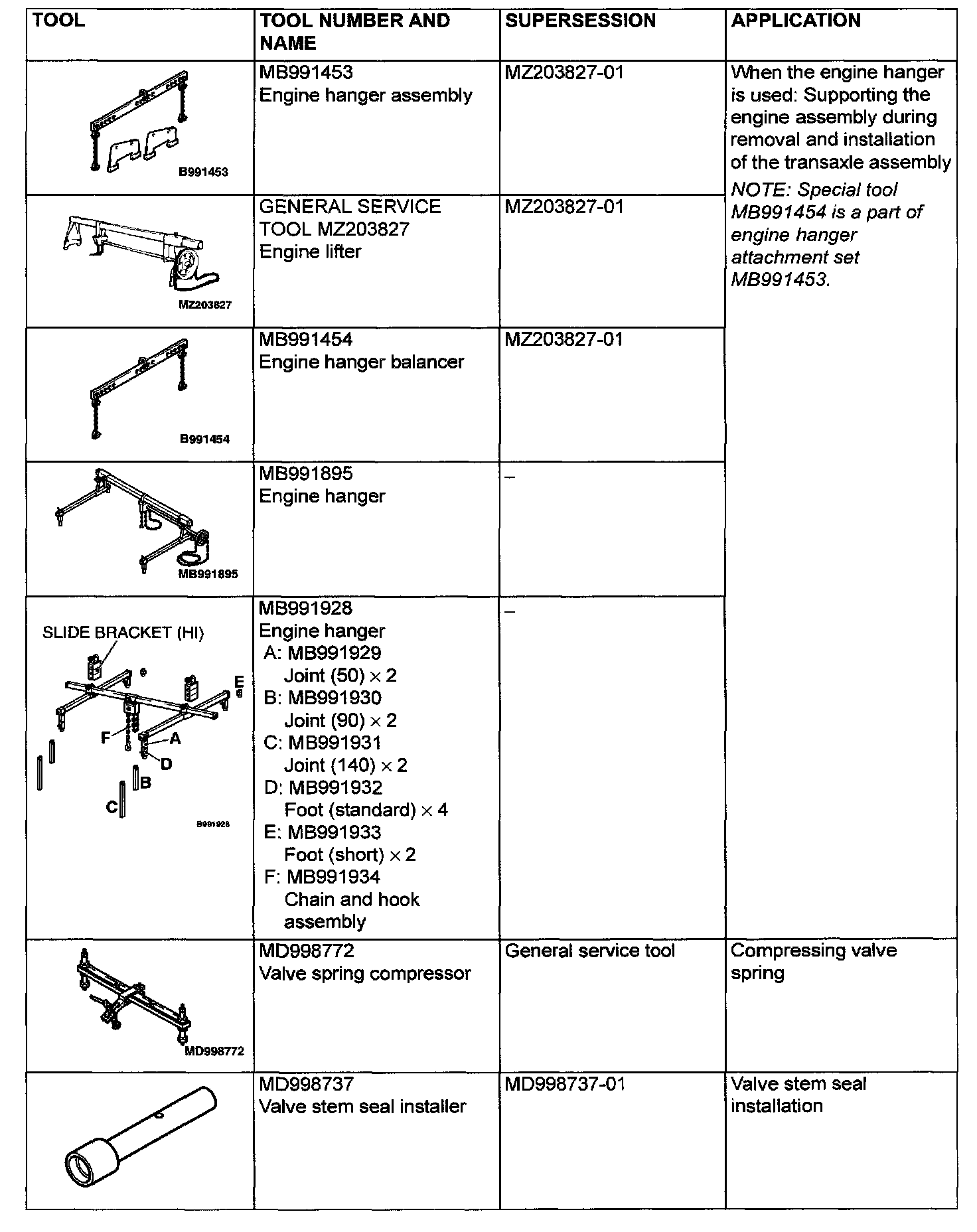

Part 1 Of 5:

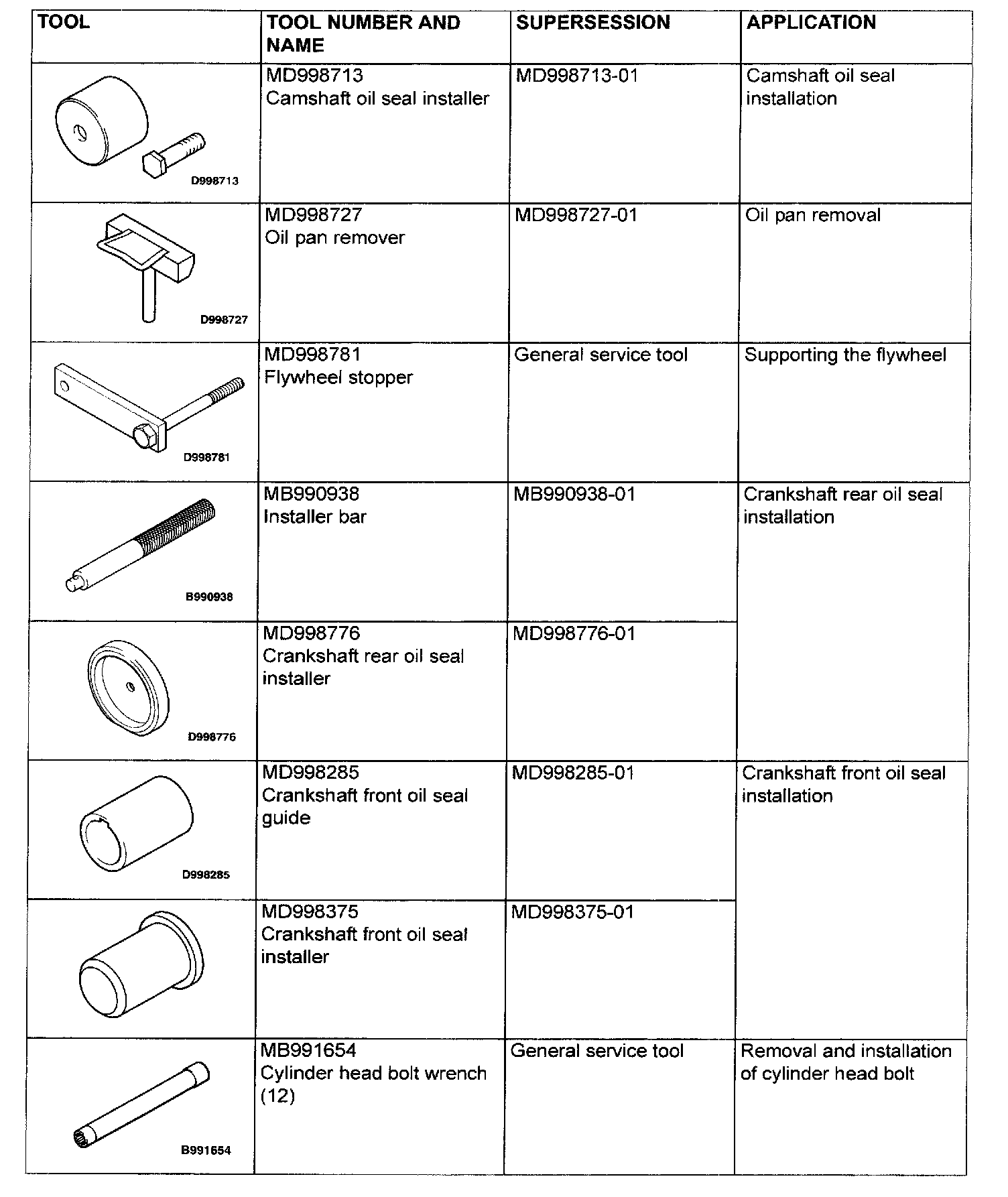

Part 2 Of 5:

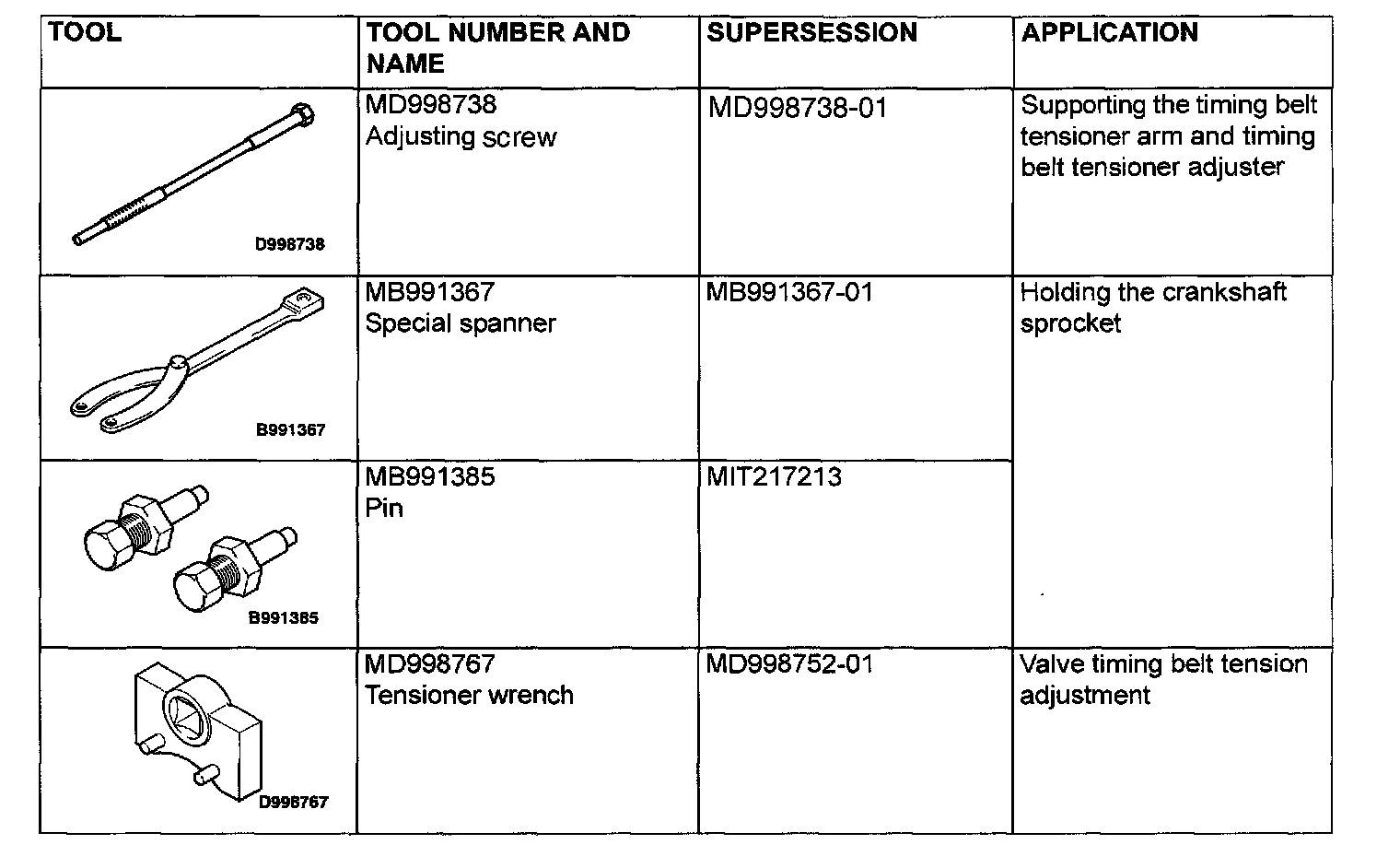

Part 3 Of 5:

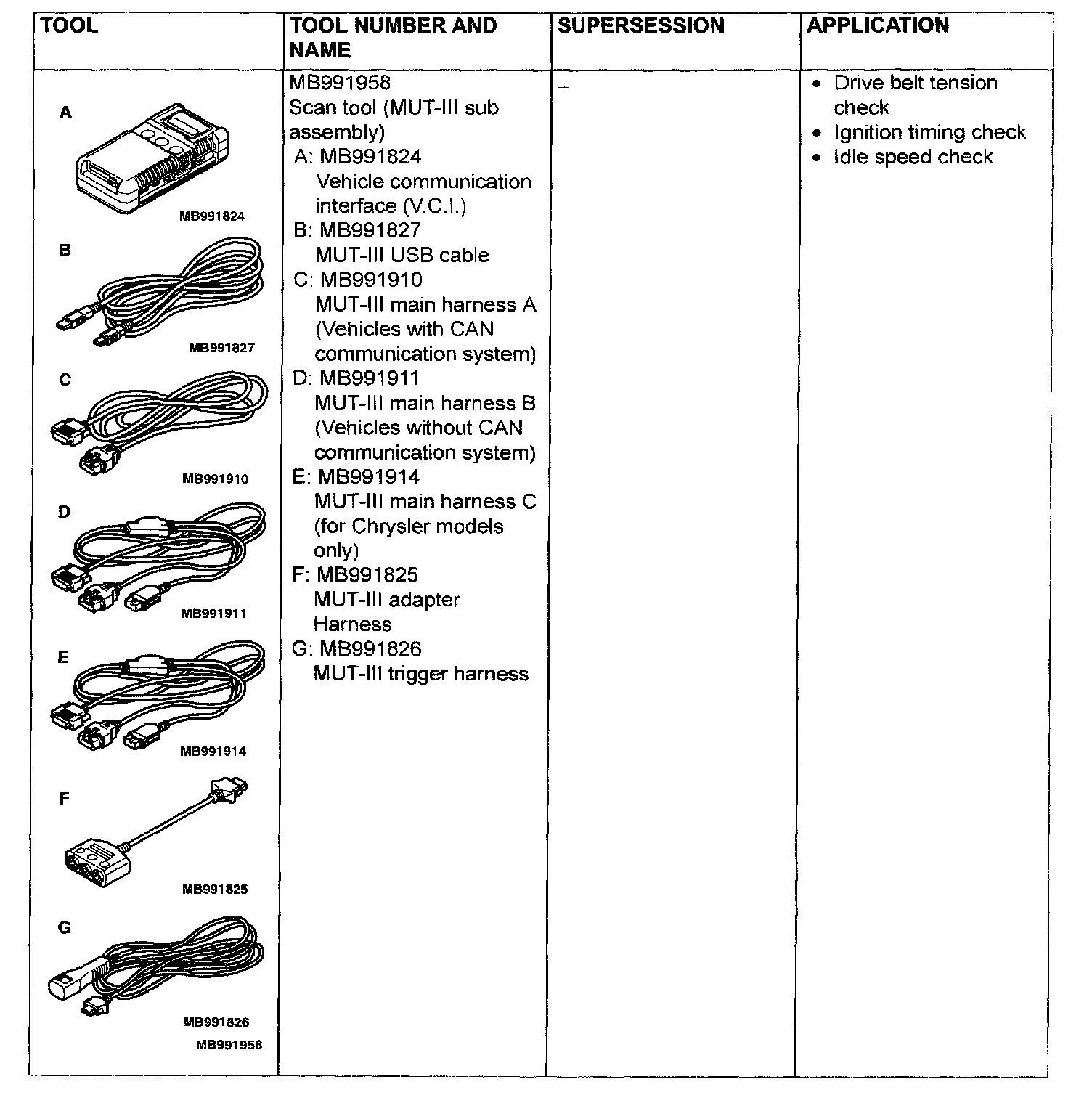

Part 4 Of 5:




Part 5 Of 5 (Updated By TSB# 09-11-001):





SPECIAL TOOLS
