Engine - Cylinder Head Height Specification Revision
No: TSB-05-11-001DATE: May, 2005
MODEL:
2003-05 Evolution
SUBJECT:
CYLINDER HEAD HEIGHT SPECIFICATION - SERVICE MANUAL REVISION
PURPOSE

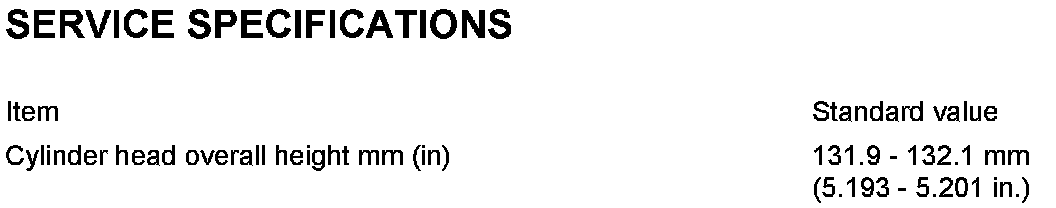

The cylinder head overall height specification is incorrect in the affected service manuals. This bulletin contains the correct cylinder head overall height specification shown.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
2003-2005 Lancer Evolution
AFFECTED SERVICE MANUALS
2003 Lancer Evolution, Volume 1, page 11 B-72
2004 Lancer Evolution, Volume 1, page 11 B-73
2005 Lancer Evolution, Volume 1, page 11 B-74
