Water Pump & Water Hose

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINTS

]]A[[ WATER INLET PIPE/O-RING INSTALLATION

CAUTION:
^ Never apply any oil or grease to the O-ring.
^ Secure the water inlet pipe after the thermostat housing has been installed.

Replace the water inlet pipe O-ring with new one, then apply water to the O-ring so that they can be inserted easily into the water pump.

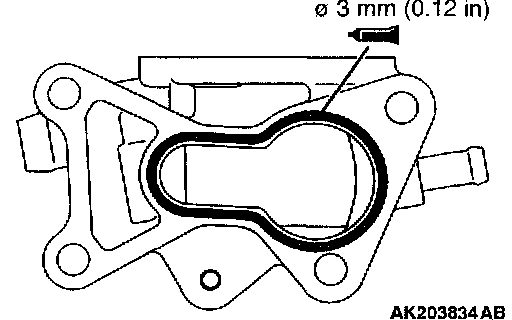

]]B[[ THERMOSTAT HOUSING INSTALLATION





1. Clean the sealant application surfaces of the thermostat housing and cylinder head.
2. Apply a 3 mm (0.12 inch) diameter bead of sealant Mitsubishi Genuine Parts number MD970389, or equivalent to the outlet fitting.
3. After installation, wait at least one hour. Never start the engine or let coolant touch the adhesion surface during that time.

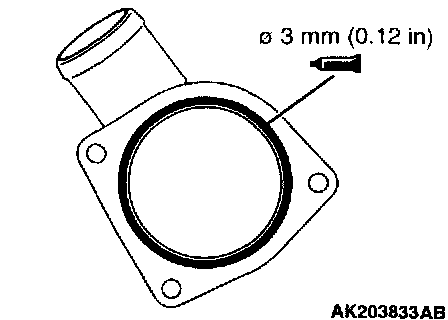

]]C[[ OUTLET FITTING INSTALLATION





1. Clean the sealant application surfaces of the outlet fittings and thermostat housing.
2. Apply a 3 mm (0.12 inch) diameter bead of sealant Mitsubishi Genuine Parts number MD970389, or equivalent to the outlet fitting.
3. After installation, wait at least one hour. Never start the engine or let coolant touch the adhesion surface during that time.

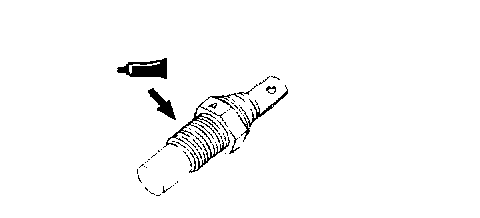

]]D[[ ENGINE COOLANT TEMPERATURE GAUGE UNIT INSTALLATION





1. When reusing the gauge unit, clean its thread.
2. Apply 3M(TM) AAD Part number 8672 or equivalent to the engine coolant temperature gauge unit.

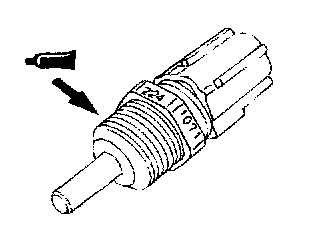

]]E[[ ENGINE COOLANT TEMPERATURE SENSOR INSTALLATION





1. When reusing the sensor, clean its thread.
2. Apply 3M(TM) AAD Part number 8731 or equivalent to the engine coolant temperature sensor.
