Radiator: Service and Repair

Part 1 Of 2:

Part 2 Of 2:

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS
[[A]] RADIATOR UPPER HOSE/RADIATOR LOWER HOSE DISCONNECTION

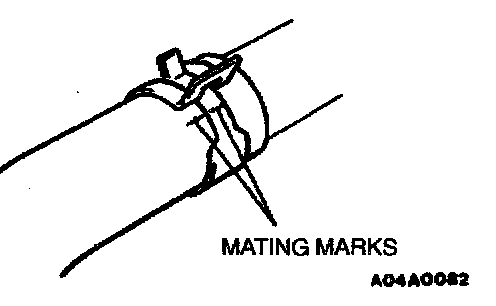

Make mating marks on the radiator hose and the hose clamp. Disconnect the radiator hose.

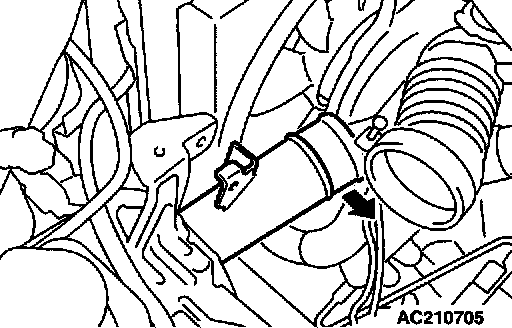

[[B]] AIR PIPE B MOUNTING BOLT REMOVAL





After removing the bolt, position air pipe B out of the way so that the pipe does not interfere with the radiator assembly or the cooling fan motor, the fan and shroud assembly.

INSTALLATION SERVICE POINT
]]A[[ RADIATOR LOWER HOSE/RADIATOR UPPER HOSE CONNECTION

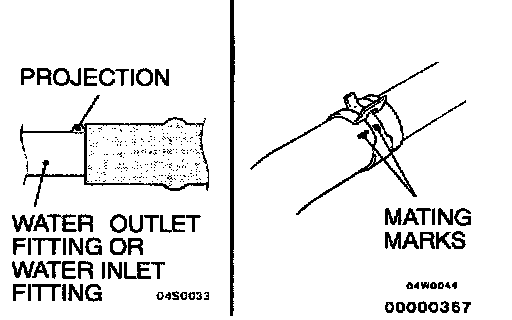

1. Insert each hose as far as the projection of the water inlet pipe, water outlet fitting or radiator.
2. Align the mating marks on the radiator hose and hose clamp, and then connect the radiator hose.
