Unit Overhaul

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:

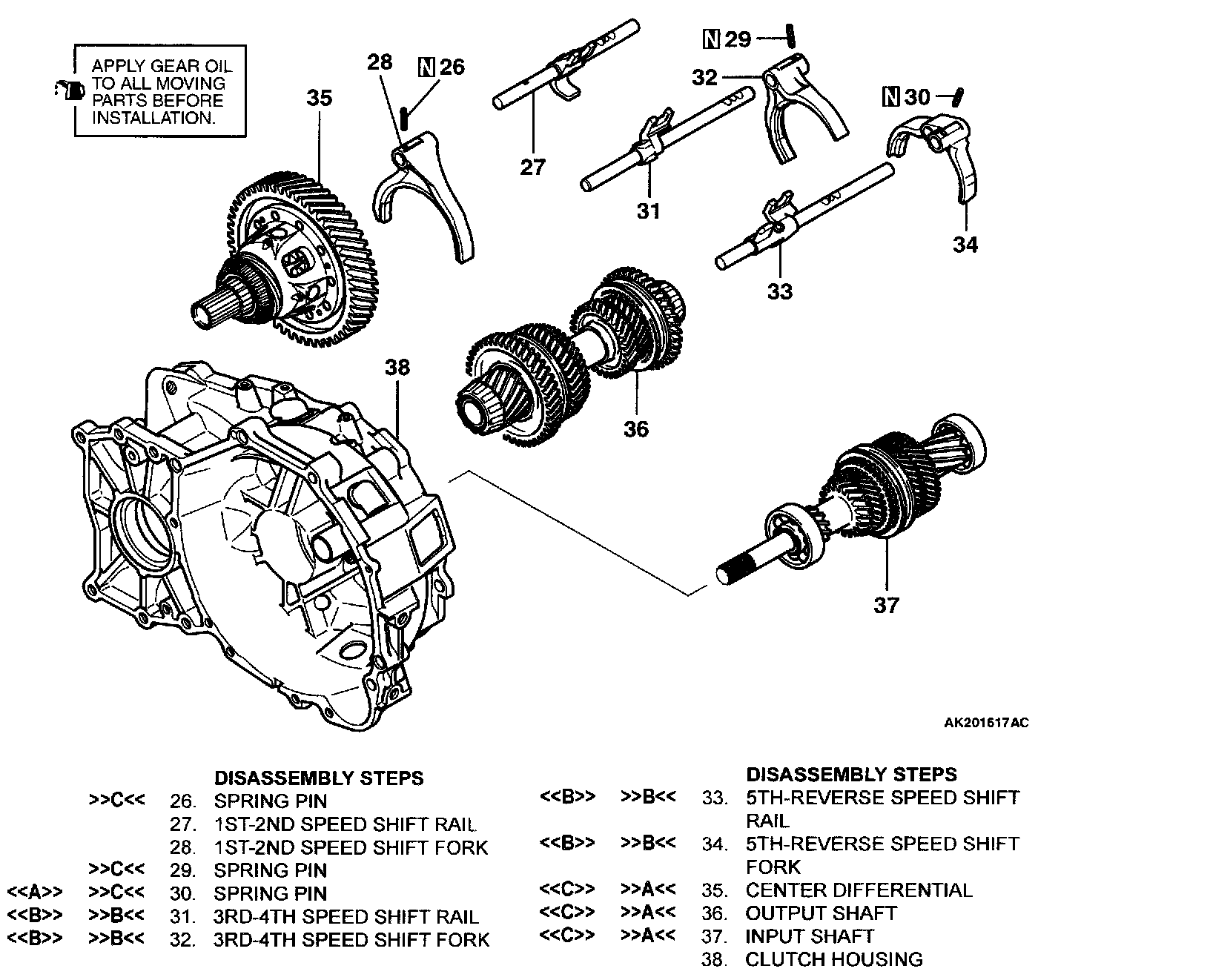

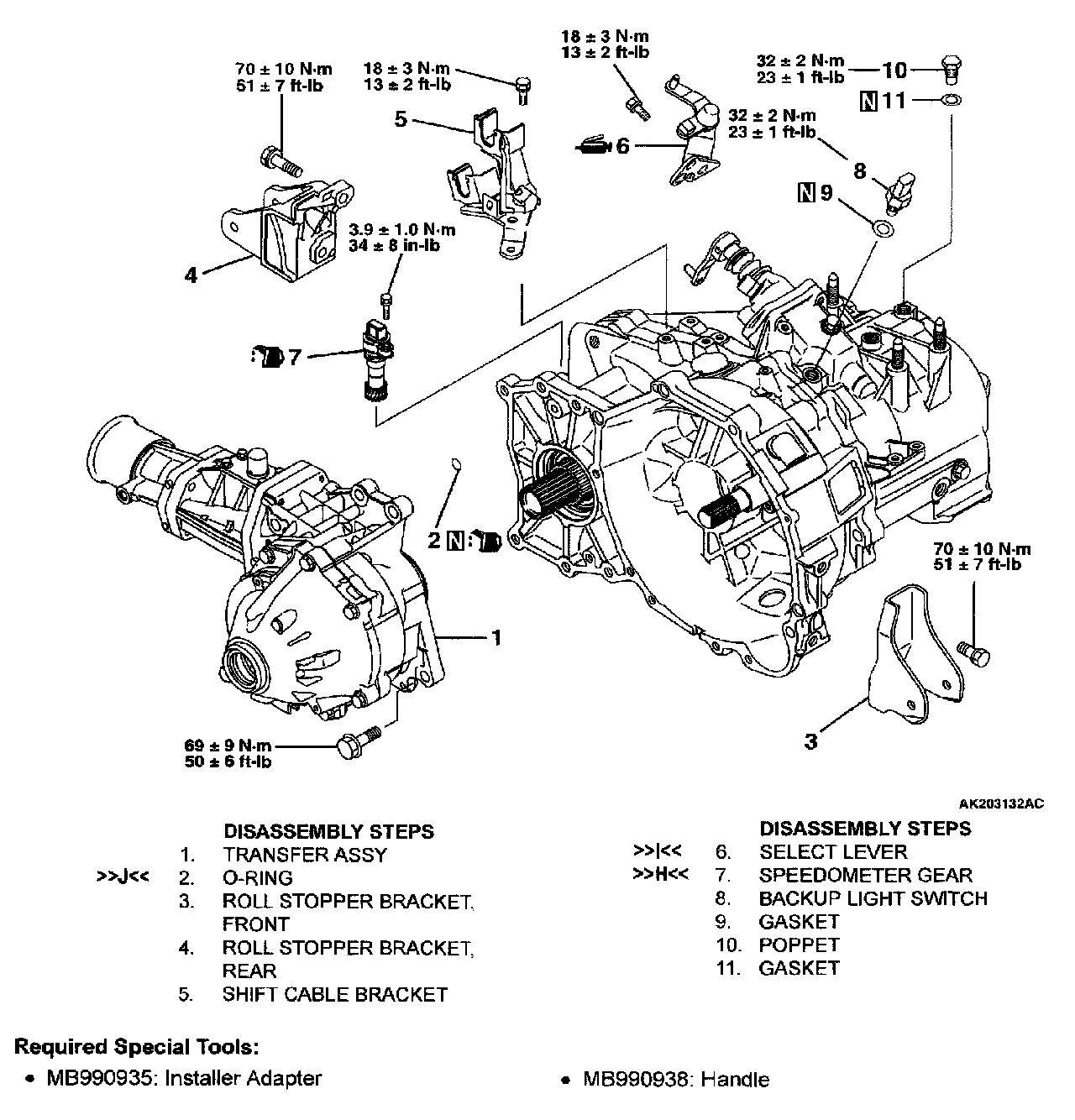

TRANSAXLE (TRANSMISSION) OVERHAUL W/ RELATED COMPONENTS
