Oil Pan and Oil Pump

Part 1 Of 2:




Part 2 Of 2:

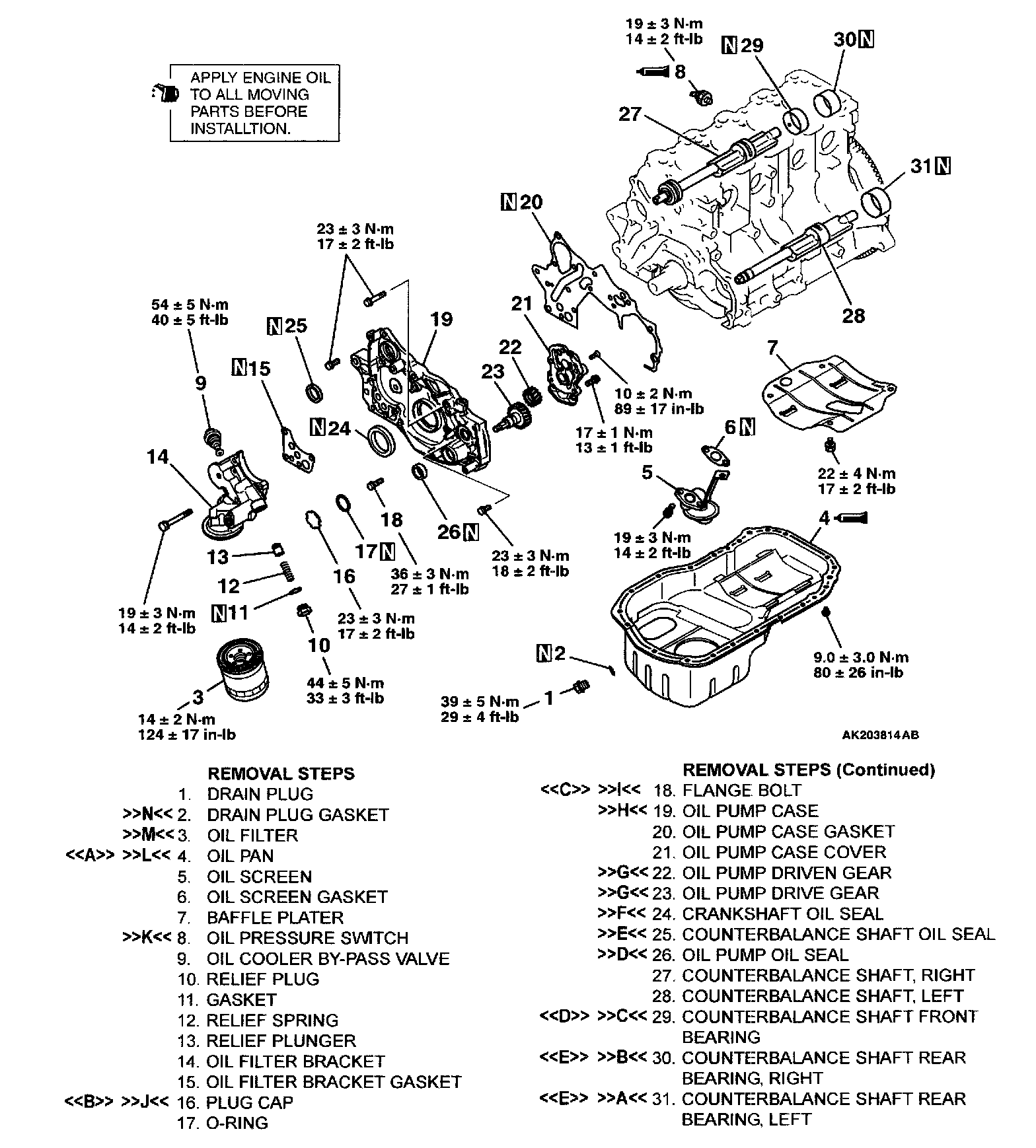

OIL PAN AND OIL PUMP OVERHAUL W/ RELATED COMPONENTS
