Camshaft, Engine

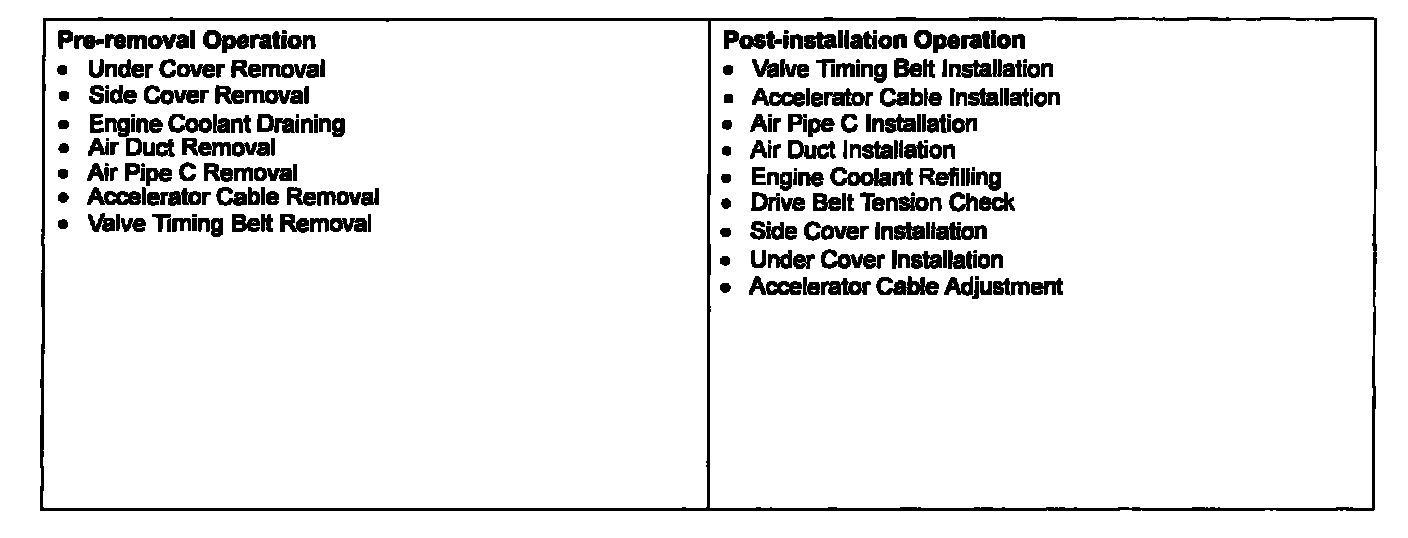

Part 1 Of 3:

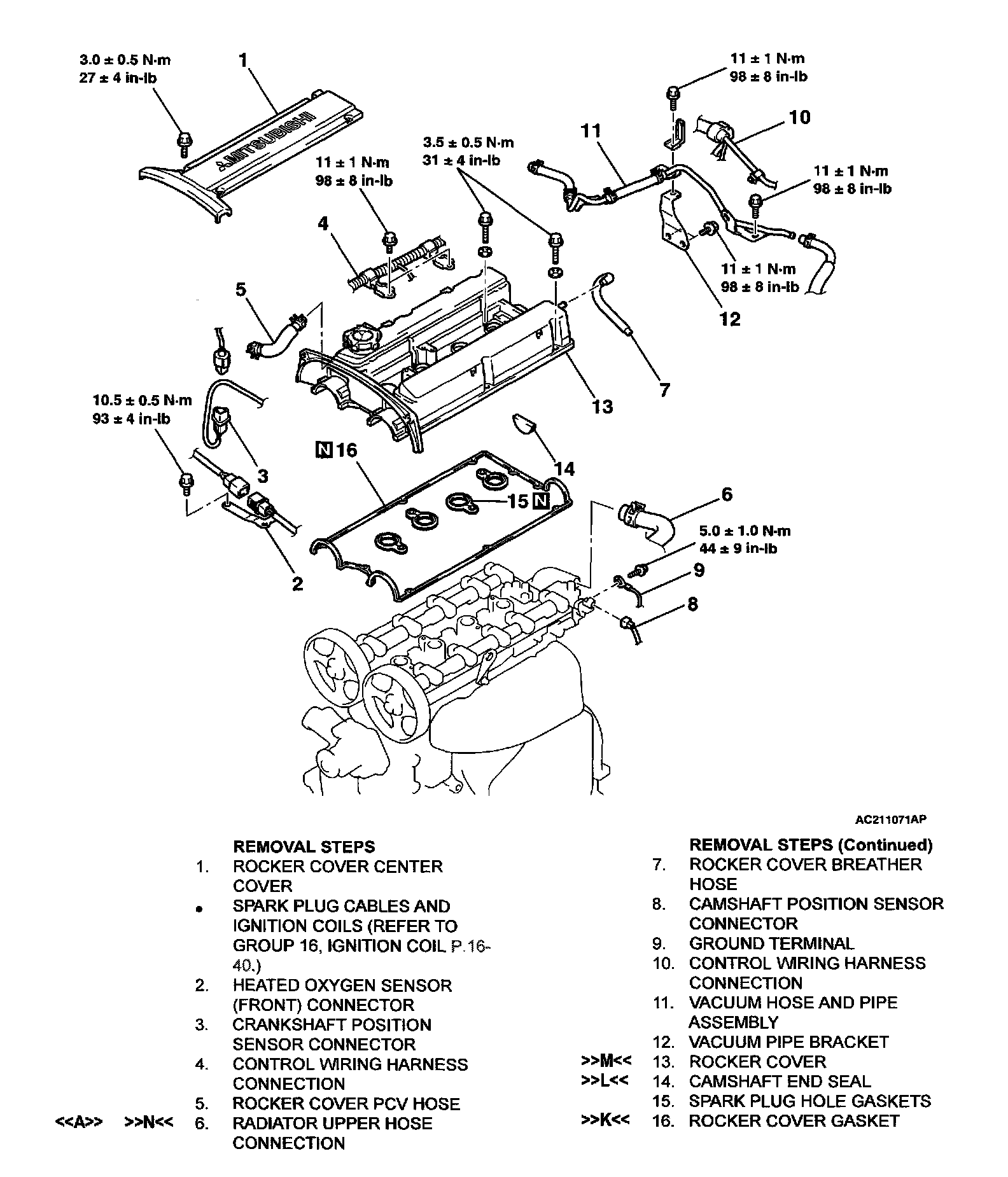

Part 2 Of 3:

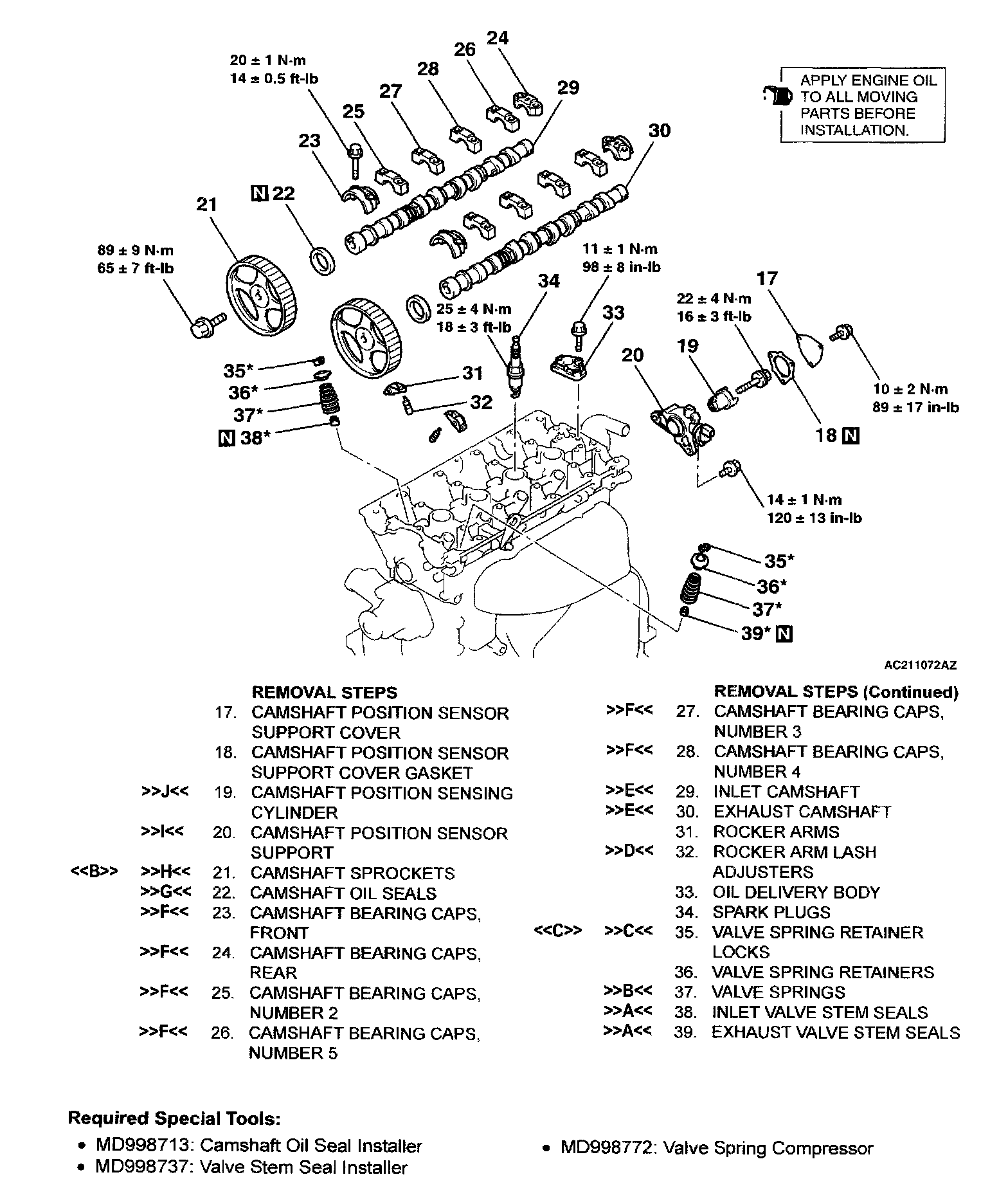

Part 3 Of 3:





CAMSHAFT AND VALVE STEM SEAL REPLACEMENT W/ RELATED COMPONENTS
