Multiport Fuel Injection (MFI) System Part 7

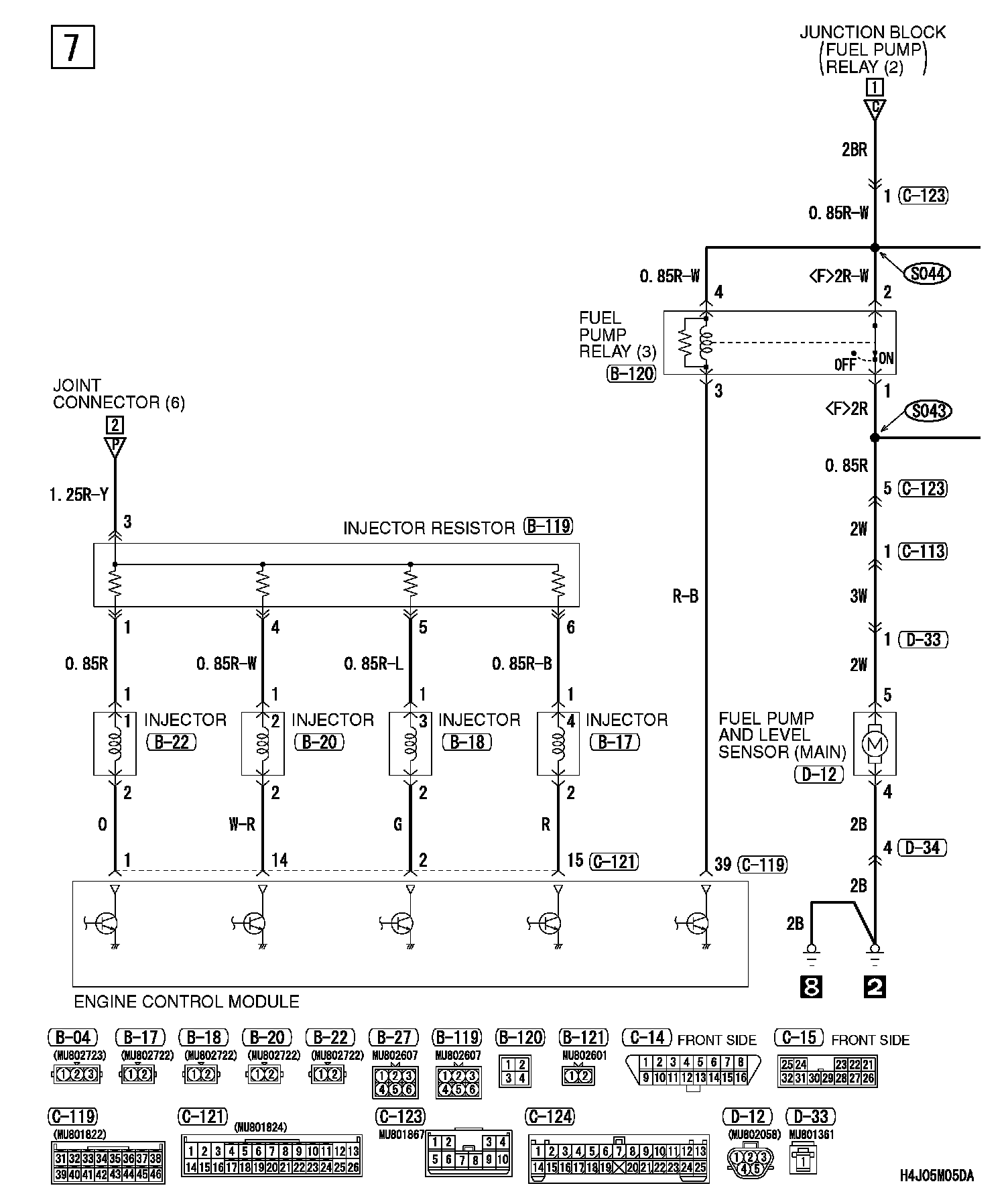

MFI System Part 7:

Next Diagram Multiport Fuel Injection (MFI) System Part 8

Previous Diagram Multiport Fuel Injection (MFI) System Part 6

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
