Home >> Mitsubishi >> 2004 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Connectors >> C Connectors - Dash Panel >> C-101 to C-135

C-101 to C-135

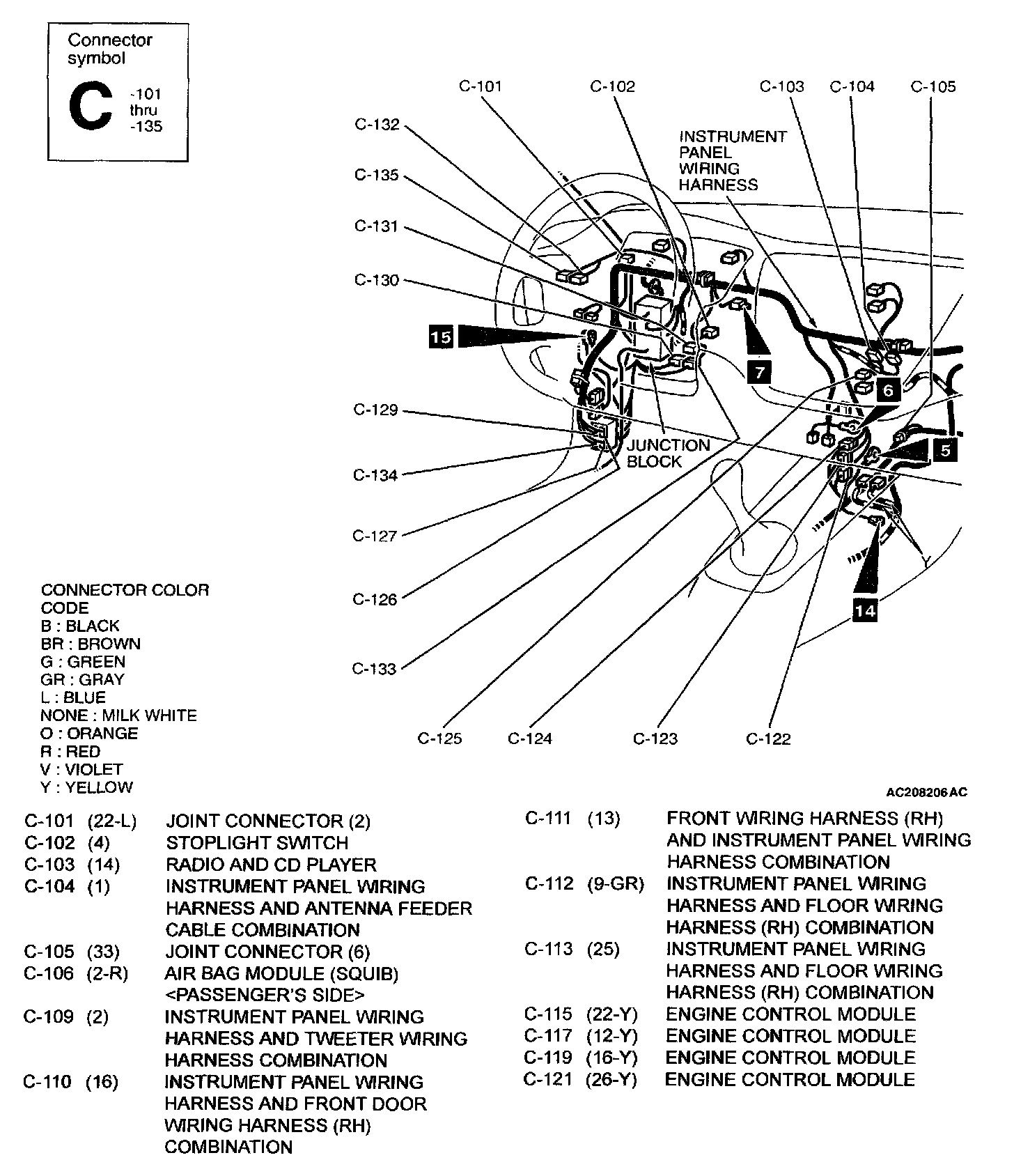

C-101 Thru C-135 (Part 1):

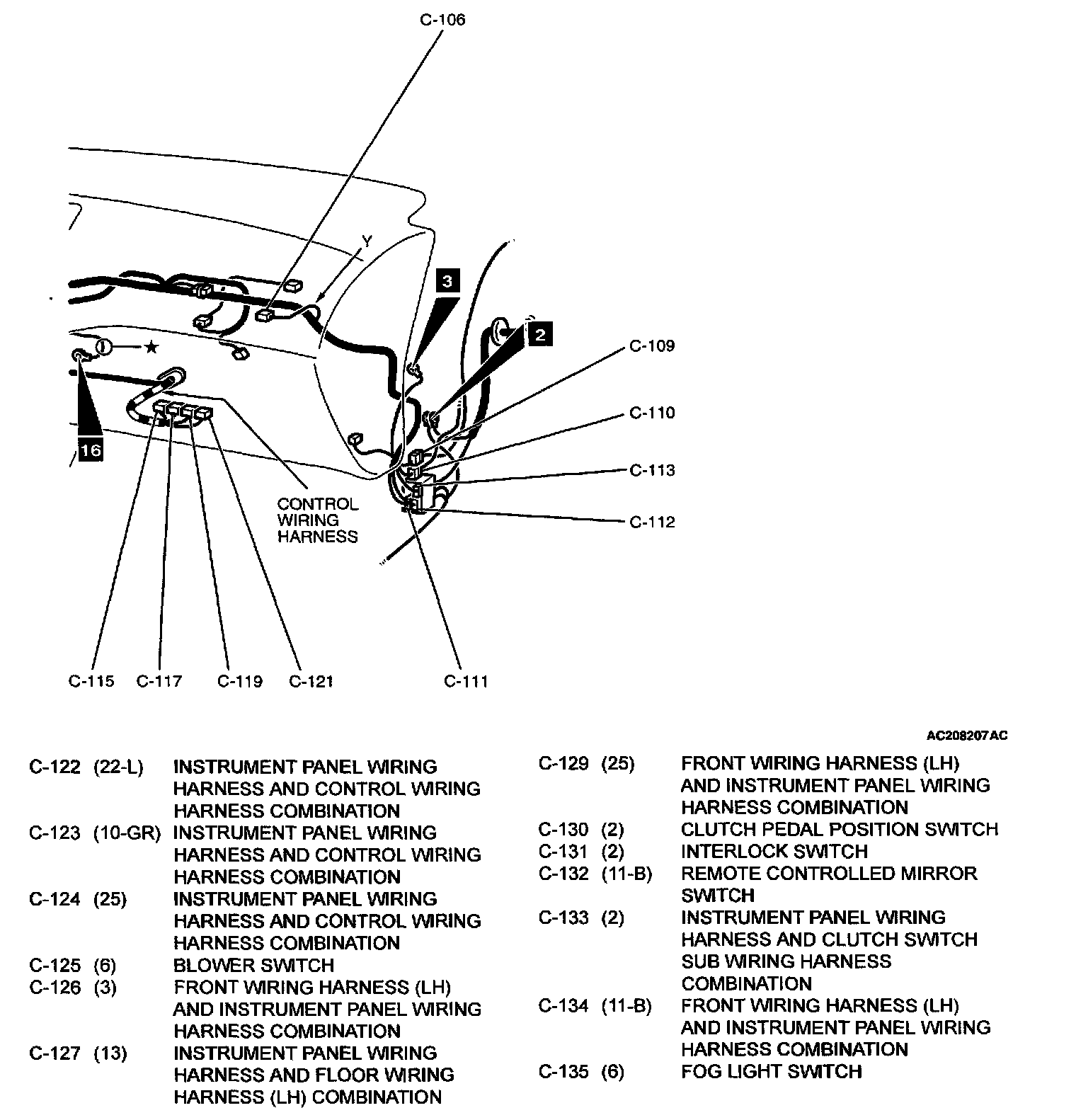

C-101 Thru C-135 (Part 2):
