Lining Running-In

LINING RUNNING-IN





Carry out running-in by the following procedure when replacing the parking brake linings or the rear brake disc rotors, or when brake performance is insufficient.

CAUTION: Carry out running-in a place with good visibility, and pay careful attention to safety.

1. Adjust the parking brake stroke to the standard value.
Standard value [Operation force: Approximately 200 N (45 pounds)]: 5 - 7 notches

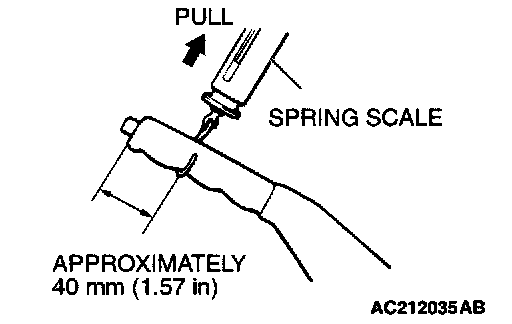

2. Hook a spring scale onto the center of the parking brake lever grip and pull it with a force of 100 - 150 N (22 - 34 pounds) in a direction perpendicular to the handle.
3. Drive the vehicle at a constant speed of 35 - 50 km/h (22 -31 mph) for 100 meters (328 feet).
4. Release the parking brake and let the brakes cool for 5 - 10 minutes.
5. Repeat the procedure in steps 2 to 4, four or five times.
